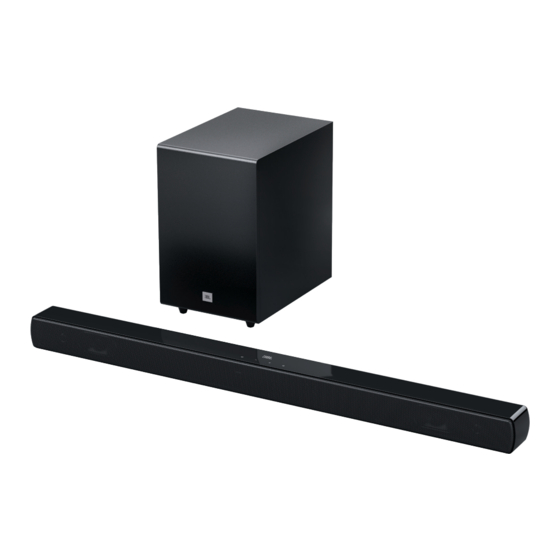

JBL CINEMA SB270
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JBL CINEMA SB270 and is the answer not in the manual?

Questions and answers

Related Manuals for Harman JBL CINEMA SB270

Summary of Contents for Harman JBL CINEMA SB270

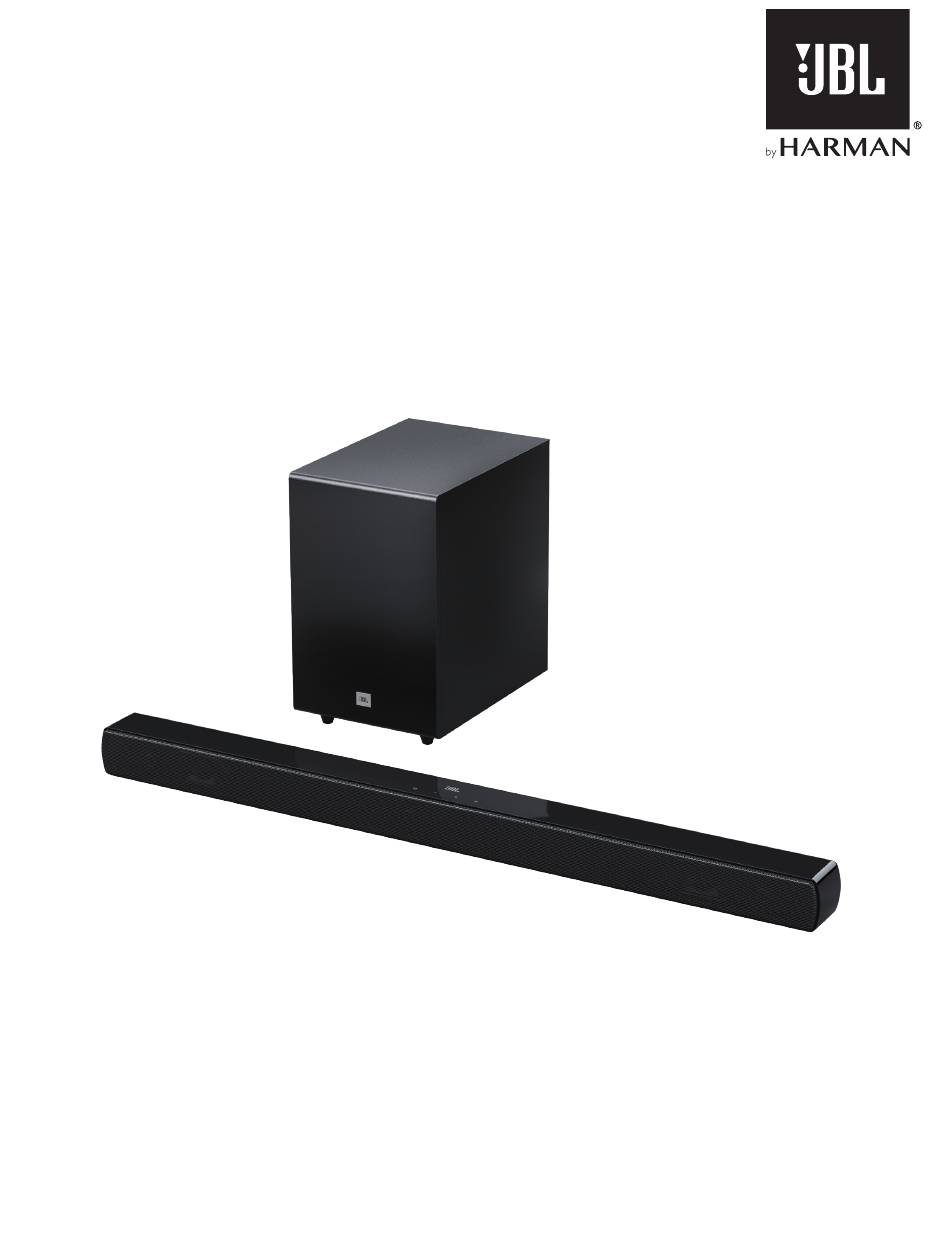

  • Page 1 JBL CINEMA SB270 OWNER’S MANUAL...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Verify Line Voltage Before Use The JBL CINEMA SB270 (soundbar and subwoofer) has been designed for use with 100-240 volt, 50/60 Hz AC current. Connection to a line voltage other than that for which your product is intended can create a safety and fire hazard and may damage the unit.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 8 RESTORE FACTORY SETTINGS IMPORTANT SAFETY INSTRUCTIONS 9 SOFTWARE UPDATE 1 INTRODUCTION 10 RE-CONNECT THE SUBWOOFER 2 WHAT’S IN THE BOX 11 PRODUCT SPECIFICATIONS 3 PRODUCT OVERVIEW 3.1 CONTROLS AND INDICATORS 3.2 CONNECTORS 12 TROUBLESHOOTING 3.3 SUBWOOFER 3.4 REMOTE CONTROL 13 TRADEMARKS 4 PLACE...

  • Page 4: Introduction

    1 INTRODUCTION 2 WHAT’S IN THE BOX Thank you for purchasing the JBL CINEMA SB270 (soundbar and Unpack the box carefully and ensure that the following parts are subwoofer) which is designed to bring an extraordinary sound included. If any part is damaged or missing, do not use it and experience to your home entertainment system.

  • Page 5: Product Overview

    Wall-mounting kit 3 PRODUCT OVERVIEW 3.1 Controls and indicators 2 3 4 Product information & wall-mounting template (Power) • Switch on or to standby 2. -/+ (Volume) • Decrease or increase the volume Press and hold to decrease or increase the volume •...

  • Page 6: Subwoofer

    3.4 Remote Control • Connect to the HDMI ARC input on your TV • Connect to the optical output on your TV or digital device 3.3 Subwoofer Connect to power • 2. Connection status indicator Solid amber Connected to the soundbar Fast flashing amber Pairing mode •...

  • Page 7: Place

    4.2 Wall-mounting 4 PLACE 4.1 Desktop placement Place the soundbar and subwoofer on a flat and stable surface. Make sure that the subwoofer is at least 3 ft (1 m) away from the soundbar, and 4” (10 cm) away from a wall. >2”...

  • Page 8: Connect

    → Ready for pairing: The status indicator flashes blue. CEC compatibility of your TV. 3. On your Bluetooth device, enable Bluetooth and search for “JBL CINEMA SB270” within three minutes. Through an optical cable → Connected: The status indicator lights up solid blue. A confirmation tone is heard.

  • Page 9: Play

    2. Follow Step 3 under "Connect a Bluetooth device". If the device has ever been paired with the soundbar, first • unpair “JBL CINEMA SB270” on the device. NOTES: − The Bluetooth connection will be lost if the distance between the Switch on soundbar and Bluetooth device exceeds 33 ft (10 m).

  • Page 10: Play From The Tv Source

    3. Within seconds, do the following on the soundbar and your 6.2 Play from the TV source TV remote control: With the soundbar connected, you can enjoy TV audio from the a) On the soundbar: press and hold one of the following soundbar speakers.

  • Page 11: Sound Settings

    7.2 Voice mode 7 SOUND SETTINGS With the voice mode, vocal clarity is enhanced to allow you to 7.1 Pre-defined EQ settings easily hear and understand speech. With the remote control, select the pre-defined EQ (equalizer) settings for your audio playback. NEWS •...

  • Page 12: Restore Factory Settings

    8 RESTORE FACTORY SETTINGS 9 SOFTWARE UPDATE By restoring the default settings defined at factories, you remove For optimal product performance and your best user experience, all your personalized settings from the soundbar. JBL may offer software updates for the soundbar system in the future.

  • Page 13: Re-Connect The Subwoofer

    10 RE-CONNECT THE SUBWOOFER 11 PRODUCT SPECIFICATIONS General specification: The soundbar and subwoofer are paired at factories. After power- • Power supply: 100 - 240 V~, 50/60 Hz on, they are paired and connected automatically. In some special cases, you may need to pair them again. •...

  • Page 14: Troubleshooting

    Remote control 12 TROUBLESHOOTING The remote control does not work. Never try to repair the product yourself. If you have problems using • Check if the batteries are drained. If so, replace them with this product, check the following before you request services. new ones.

  • Page 15: Trademarks

    ® owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners. The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
  • Page 16 © 2022 HARMAN International Industries, Incorporated. Incorporated 8500 Balboa Boulevard, All rights reserved. Northridge, CA 91329 USA JBL is a trademark of HARMAN International Industries, Incorporated, registered in www.jbl.com the United States and/or other countries. Features, specifications and appearance are subject to change without notice.
