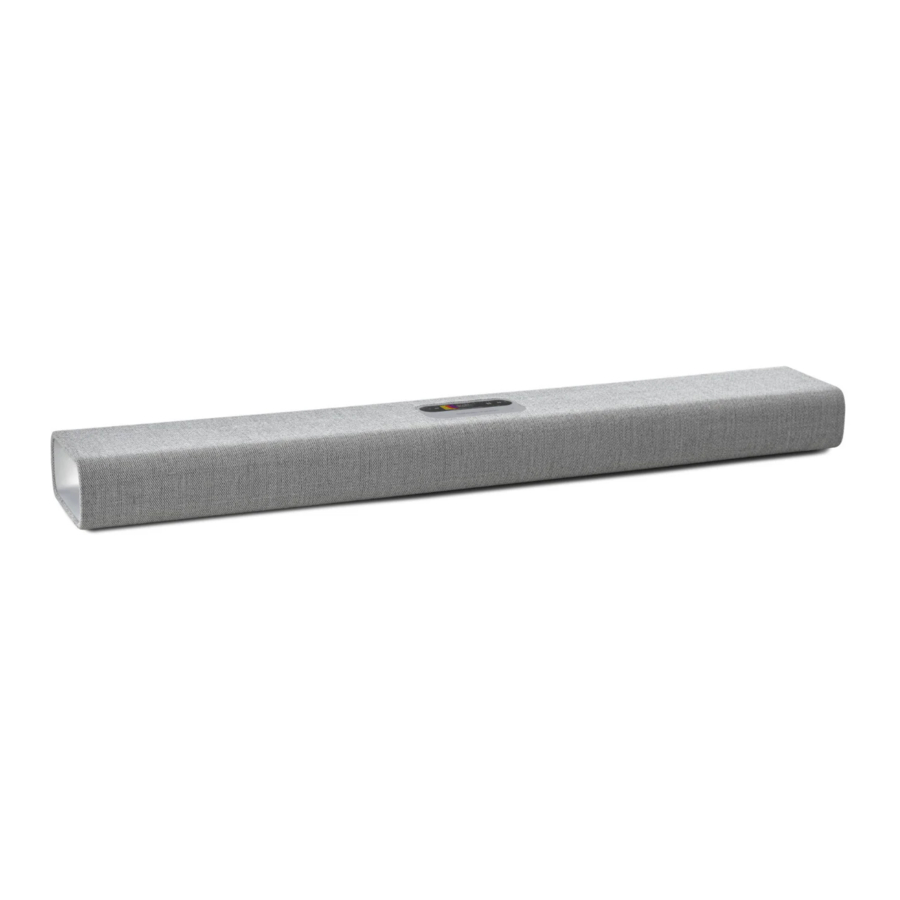

Harman harman/kardon CITATION MULTIBEAM 700 Manual

APP

The Google Assistant setup

Google Home

Download the Google Home app and set up your Citation MultiBeam 700.

All product features will be set up.

All product features will be set up.

AirPlay setup

For AirPlay only users, skip the Google Home app; on your iOS device, go to Settings > Wi-Fi and select "Citation MultiBeam 700" under SET UP NEW AIRPLAY SPEAKER... Follow the onscreen instructions to complete setup.

Google Voice Assistant and Chromecast will require additional set up with the Google Home app.

PRODUCT TOUR

Top & Front

Back

CONTROL / INFORMATION ON TOUCH SCREEN

Wi-Fi status

Mic mute/unmute

Push to talk to Google Assistant

Bluetooth status

HDMI ARC source

Set up other Citation speakers

CONNECT TO YOUR TV

WALL MOUNT THE CITATION MULTIBEAM 700

Use tape to stick the wall-mounted paper guide on the wall, push a pen tip through the center of each mounting hole to mark the wall-mounted bracket location and remove the paper.

Screw the wall mount brackets on the pen mark; screw the threaded mounting post into the back of the Citation MultiBeam 700, then hook the Citation MultiBeam 700 on the wall.

GET STARTED

Add Citation MultiBeam 700 to your home Wi-Fi network:

Download and run the Google Home app on a phone or tablet.
Follow the instructions on the touch screen and Google Home app to finish the setup.
* Enable Bluetooth (iPhone / iPad).

SET UP MULTIBEAM™ SURROUND SOUND

Automatic MultiBeam Calibration (AMC) will optimize the soundbar sound settings for a better surround sound experience.

CHROMECAST

Step 1: Open Chromecast supported app.

Step 2: Play Music.

Step 3: Tap the cast icon and select "Citation MultiBeam 700".

e.g.
Spotify
Pandora
TuneIn
Deezer
Google Play Music

* Device can support multi-room control provided by Chromecast built-in, more details you can refer to Google Home app.

AirPlay

Step 1: On an iOS device, enter the Control Center.

Step 2: Tap to select "Citation MultiBeam 700" as speaker.

Step 3: Start audio streaming from an app.

GOOGLE ASSISTANT

SPECIFICATIONS

• Model Name: CITATION MULTIBEAM 700
• Power supply: 100 - 240 V ~ 50 / 60Hz
• Output power: 210 W RMS
• Bluetooth version: 4.2
• Bluetooth transmitter frequency range: 2402 – 2480 MHz
• Bluetooth transmitter power: <10 dBm (EIRP)
• Bluetooth transmitter modulation: GFSK,π/4 DQPSK, 8DPSK
• Wireless network: 802.11a/b/g/n/ac (2.4GHz/5GHz)
• 2.4G Wi-Fi transmitter frequency range: 2412 – 2472 MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)
• 2.4G Wi-Fi transmitter power: <20 dBm (EIRP)
• 2.4G Wi-Fi modulation: DBPSK, DQPSK, CCK, QPSK,BPSK,16QAM, 64QAM
• 5G WISA transmitter power: < 14 dBm (EIRP)
• 5G WISA modulation: OFDM, BPSK, QPSK, 16QAM
• 5G WISA transmitter frequency range: 5.15 - 5.35 GHz, 5.470 - 5.725GHz, 5.725 - 5.825 GHz
• 5G Wi-Fi transmitter power: < 23 dBm (EIRP)
• 5G Wi-Fi modulation: QPSK, BPSK, 16QAM, 64QAM, 256QAM
• 5G Wi-Fi transmitter frequency range: 5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz

Power consumption

• Off Mode: N/A
• Standby: N/A
• Network Standby*: 2.0 Watts
  Time to networked standby: 18 minutes

* Networked standby: in the condition of any wireless connection of the device is activated, if no provide any audio or video signal to the device, it will automatically into networked standby mode in 18 minutes. Any audio or video recover will bring device from standby to operation mode.

harmankardon.com
