Overview
Photovoltaic
Face this side to the sun during use. It's recommended to use
1
module
the panel on sunny days with ample sunlight.
(Front)
Indicates the angle between the sunlight and the panel. When
Solar Angle
2
the sunlight's shadow point aligns with the center of the plate,
Guide
it indicates a 90° angle.
Download
After-Sales
EcoFlow App
Policy
Download
Center
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EcoFlow EF-SG-M125
Summary of Contents for EcoFlow EF-SG-M125

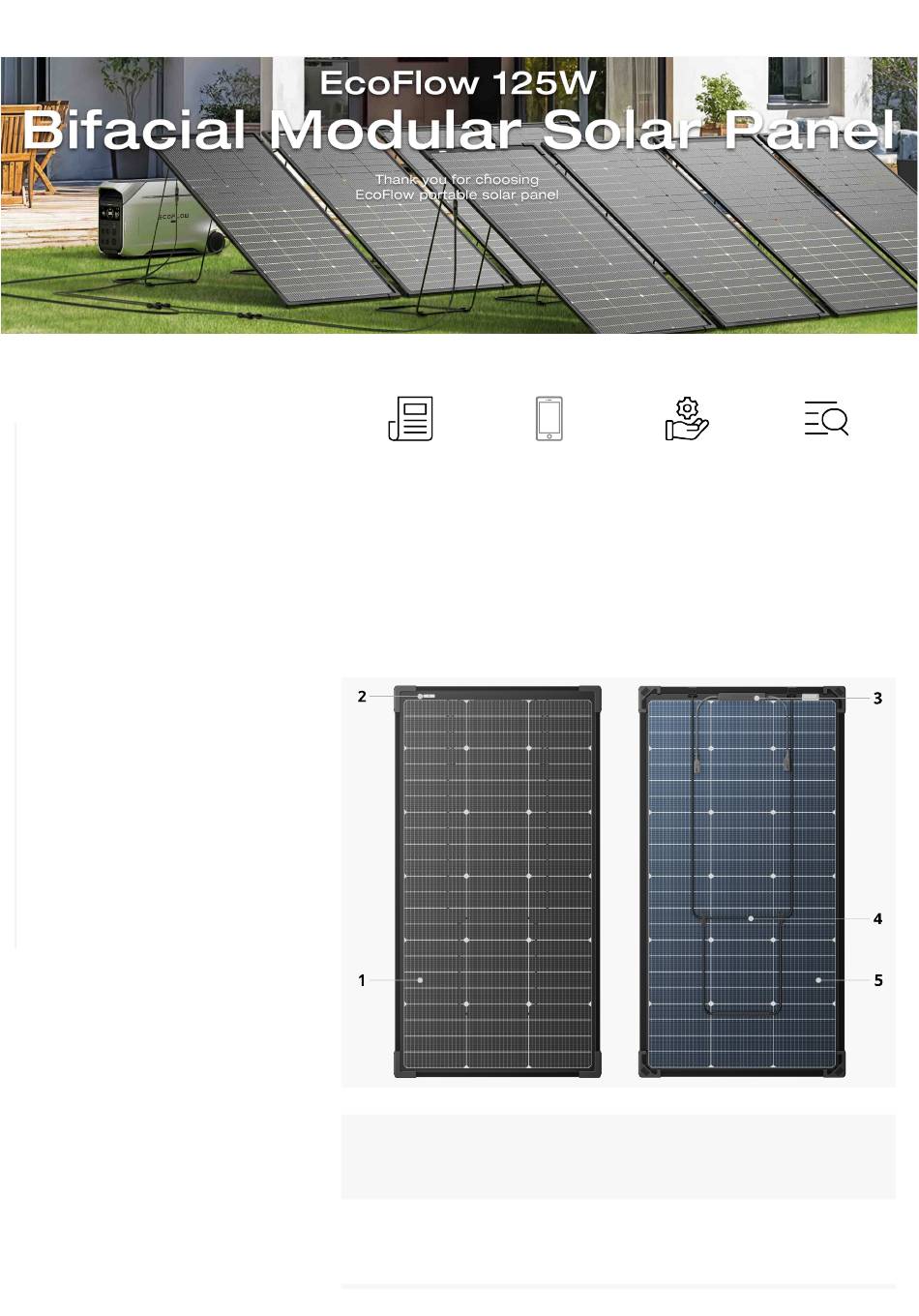

- Page 1 BifacialModularSolarRanel- Thankyoutorchoosing EcoFlowportablesolarpanel ECOF-OW Contents Overview Get Started Frequently Download After-Sales Download Asked EcoFlow App Policy Center Angle Adjustment Questions Connection Steps Maximize Power Output Find an Ideal Environment Overview Connect Multiple Sets in Series and Parallel Care and Maintenance...
-
Page 2: Get Started
Junction Includes a solar panel output cable (350mm). Support Includes a bracket and extension for flexible adjustment of the Bracket solar panel angle. Photovoltaic This side is designed to harness sunlight reflected from the module surroundings and works best on flat, light-colored surfaces. (Rear) Get Started Angle Adjustment... - Page 3 Sunlight Optimization Tips 1. Ensure the shadow does not move outside of the red circle on the angle guide. Otherwise, the power output will decrease. 2. When the shadow point hits the center of the red circle, the sunlight is at a 90º...
-
Page 4: Connection Steps
Connection Steps You can connect the panel to an EcoFlow portable power station to store power, or to an EcoFlow smart device to power the device directly. During use, ensure that the input voltage and current are within the... - Page 5 while the total output current and output power add up with the number of connections. Quantity Total Current (Isc) Total Power 3.4A 125W 6.8A 250W 10.2A 375W 13.6A 500W 625W 20.4A 750W 23.8A 875W 27.2A 1000W Connecting to a Portable Power Station Connect the XT60W end of the included cable (s) ¹...
- Page 6 Extension cables are not essential but can be used as required. If the panel is connected to an EcoFlow device, you can check real-time input data on the screen of the device or on the device's homepage of EcoFlow app.
- Page 7 Keep perpendicular to sunlight The direction of sun rays changes throughout the day. It's recommended to check the shadow point on the solar angle guide from time to time and make sure it remains in the middle. Place on reflective surfaces Smooth, light-colored surfaces (such as mirrors or sand) are more reflective.
-
Page 8: Care And Maintenance
Series Connection of Two Sets of Solar Panels Series Connection of Three Sets of Solar Panels Care and Maintenance Storage For transportation or storage, it is recommended to place solar panels in an upright position. For long-term storage, ensure that the waterproof cover of the output cable remains tightly closed, then attach the back of the panels together (as shown in the diagram) and put them into the bag. - Page 9 Cleaning First ensure that the solar panel is not connected to a portable power station or other loads, and that the surface has cooled to room temperature. Then, dampen a soft cloth with clean water, wring the cloth dry, and use it to wipe the outer surface of the solar panel.
-
Page 10: What's In The Box
4. Is the panel compatible with all EcoFlow portable power stations? It depends on the electrical parameters of the panel and the solar input parameters of the power station. -
Page 11: Technical Specifications
4. Quick Start Guide, Safety Instructions & Warranty Card 4-Piece Set 1. EcoFlow XT60W to Solar Connector Extension Cable (MC4 Compatible) ×1 2. EcoFlow Solar Connector to XT60i Extension Cable (MC4 Compatible) ×1 3. EcoFlow Solar Extension Cable (2M) ×2 4. -
Page 12: Safety Instructions
Basic Specifications Model EF-SG-M125 125W⼟3W (STC) Rated Power 138W⼟3W (BNPI) Open Circuit Voltage 3.2A (STC) Short Circuit Current 3.4A (BNPI) Optimal Operating Voltage 2.9A (STC) Optimal Operating Current 3.2A (BNPI) Recommended Ambient Temperature −40℃ to 85℃ (-24°F to 185°F) Efficiency Bifaciality Coefficient 80%±5%... - Page 13 By using this product you agree that you have understood, approved, and accepted all the terms and content in this document. EcoFlow is not liable for any loss caused by the user's failure to use the product in compliance with these Safety Instructions.
- Page 14 17. Ensure that the cable is plugged in firmly during use to avoid port melting caused by poor connection. Copyright © 2024 EcoFlow. All Rights Reserved.
