Page 1: Table Of Contents

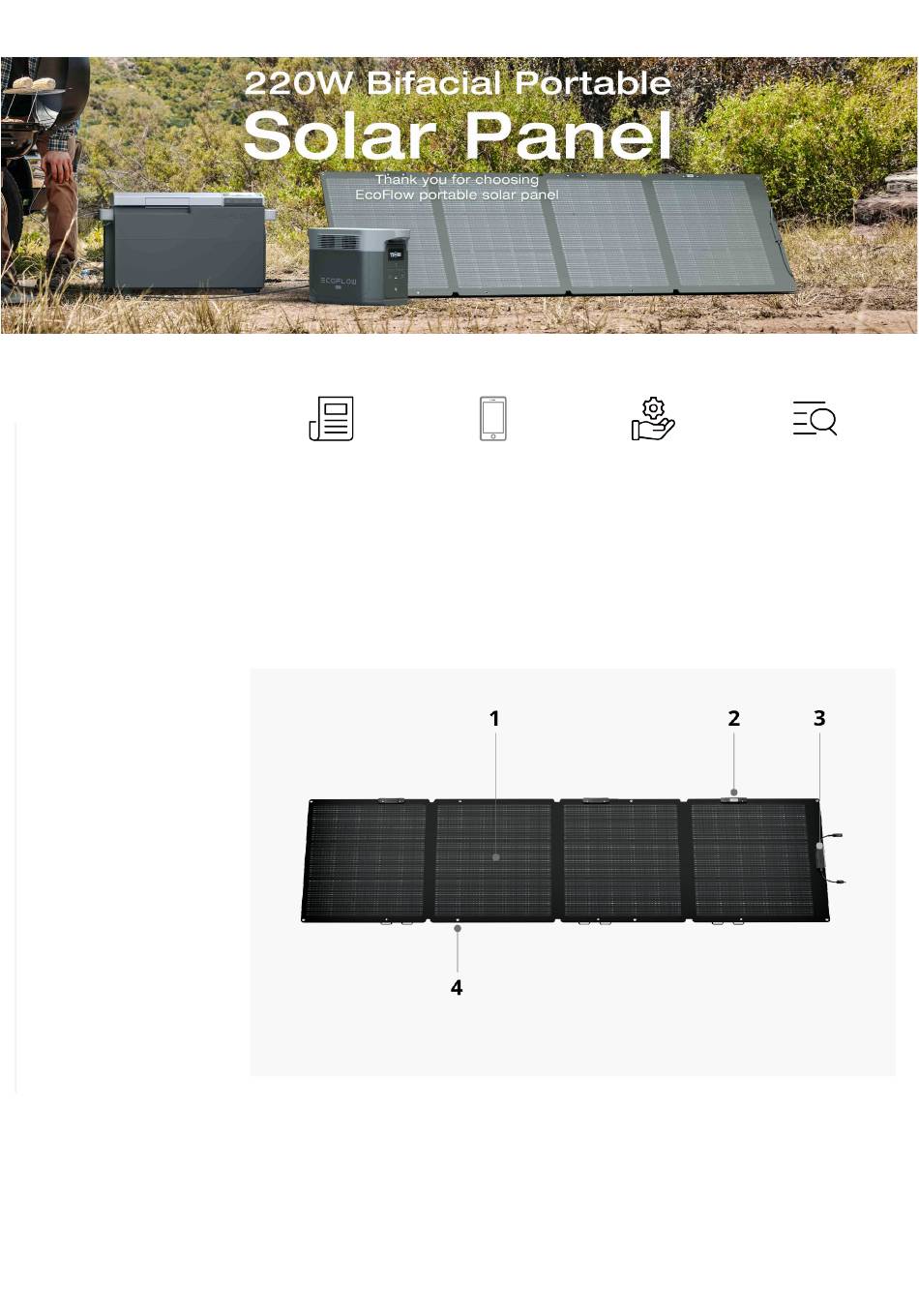

Contents Overview FAQs EcoFlow App After-sales Downloads Get Started Policy Power Your Devices Prerequisites How to Connect Overview Maximize Power Output Find an Ideal Environment Wire Your Panels Storage and Maintenance Storage Cleaning What's in the Box Accessories Specifications Safety Instructions... - Page 2 Photovoltaic Contains a solar angle guide and a junction box. Face this side to the module sun during use. It's recommended to use the panel on sunny days (Front) with ample sunlight. Indicates the angle between the sunlight and the panel. When the Solar angle sunlight's shadow point aligns with the center of the plate, it guide...
- Page 3 As shown in the picture, it's recommended to unfold the bracket first before unfolding the panel. For easier operation, it's recommended to stand behind the panel when unfolding it. Check the shadow point on the solar angle guide to adjust the brackets, aiming to align the shadow as close to the center as possible.
-
Page 4: Power Your Devices
Power Your Devices Prerequisites You can connect the panel to an EcoFlow portable power station to store power, or to an EcoFlow smart device to power the device directly. When using the panel with your devices, please make sure the maximum output parameters¹... - Page 5 Make sure the cables were connected firmly before use to avoid port melting caused by poor connection. If the panel is connected to an EcoFlow device, you can check real-time output data on the screen of the device or on the device's homepage of EcoFlow app.
-
Page 6: Maximize Power Output
Maximize Power Output Find an Ideal Environment Use the panel on sunny or mostly sunny days On a sunny noon when sunlight is strong, the panel yields more power. On cloudy or rainy days with weaker sunlight, the panel's output decreases accordingly. - Page 7 Generally speaking, it's recommended to wire solar panels in series for connecting with a portable power station. How to Connect To wire series, connect the male connector of the first panel to the female connector of the next, and so on. Then, connect the solar to XT60i charging cable with the output cables of the first and the last panels.
- Page 8 In Series In Parallel Total Voltage Stacked Unchanged Total Current Unchanged Stacked Total Power Stacked Stacked Solar panel wiring of different ratings In Series In Parallel Total Subject to the lowest value of the Stacked Voltage panels Total Subject to the lowest value of the Stacked Current panels...
-
Page 9: Storage And Maintenance
Determine Wiring Plan Take the following factors into consideration when determining whether to wire in series or in parallel. Feasibility Series connection is simple and allows you to keep the total current at a relatively low level so that it will fall within the solar input range of the connected device. -
Page 10: Storage
Portable solar panels barely generate power under such circumstances as they are made of monocrystalline cells, whose performance is restricted under weak light. 4. Is the panel compatible with all EcoFlow portable power stations? It depends on the electrical parameters of the panel and the solar input parameters of the power station. -
Page 11: Accessories

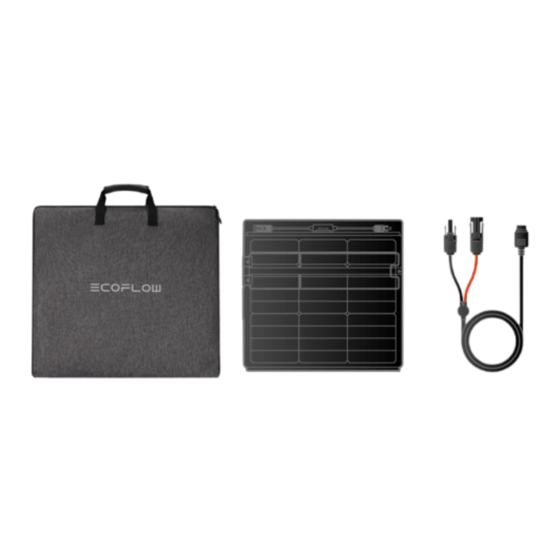

1. Storage case 2. EcoFlow 220W Bifacial Portable Solar Panel 3. Solar to XT60i charging cable (2.5 m) 4. Quick Start Guide, Safety Instructions, and Warranty Card Accessories View More → Specifications Parameters Model EF-Fold-G220-04 220W (±5W) Front Side Rated Power 175W (±5W) Rear Side... -
Page 12: Safety Instructions
Once you use this product, it is deemed that you understand, approve and accept all the terms and content in this document. EcoFlow is not liable for any loss caused by the user's failure to use the product in compliance with the product document. - Page 13 10. When connecting this product in series or parallel, it is recommended that you purchase connecting wires through EcoFlow’s official sales channels. If you are using a third-party solar panel cable, make sure that the connector and the voltage and current of the cable are compatible.
