INSTRUCTIONS-PARTS LIST
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.

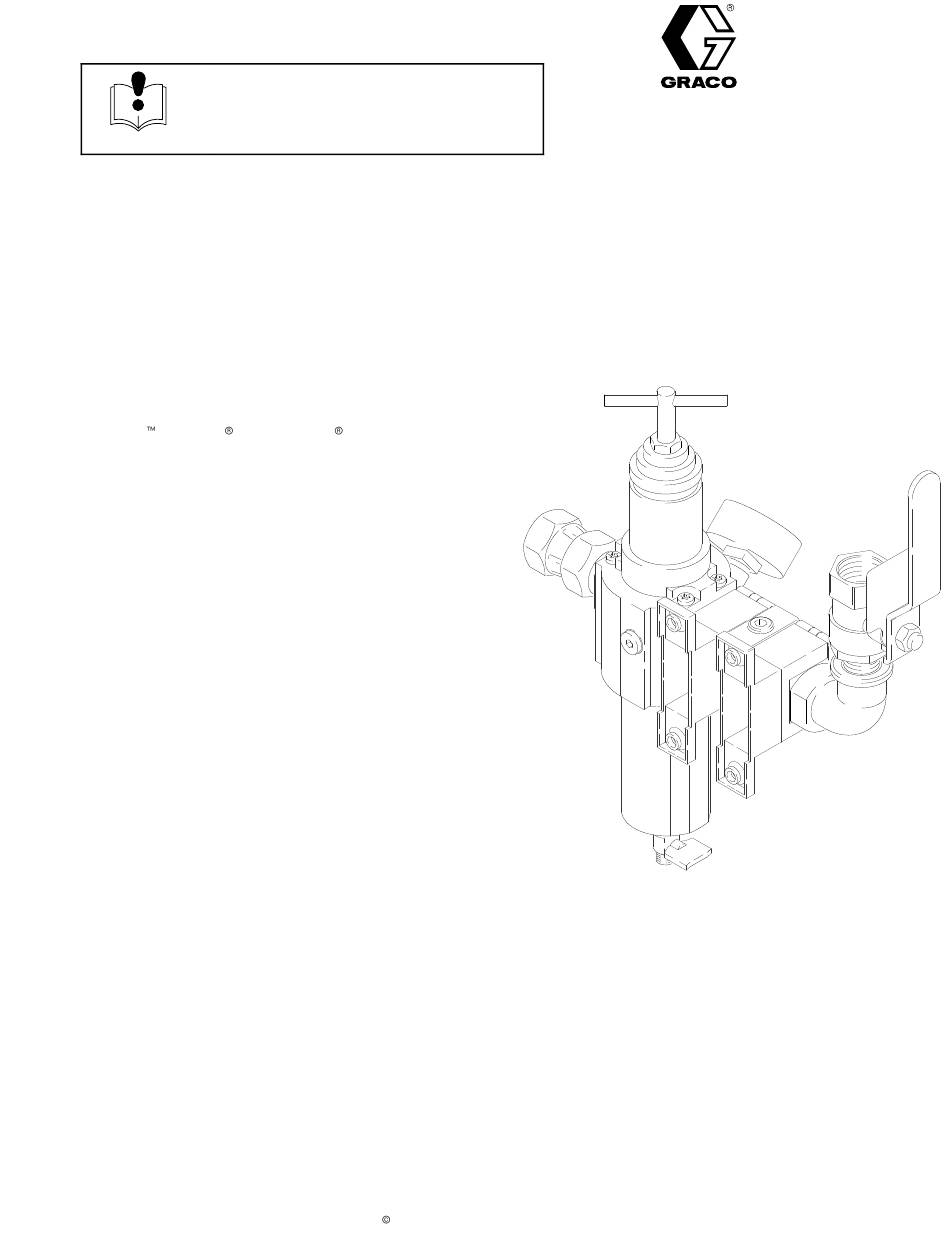

INSTRUCTIONS
HIGH VOLUME
Air Control Kit
250 psi (1.7 MPa, 17.2 bar) Maximum Air Inlet Pressure
Part No. 238-881, Series A
Air Filter/Regulator Kit
For King , Bulldog , and Senator airless pumps.
Table of Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
2
2
5
6
9
11
12
. . . . . . . . . . . . . . . .
12
COPYRIGHT 1996, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
308-648
Rev. B
Supersedes A
06226
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Graco 238-881
Summary of Contents for Graco 238-881
-
Page 1: Table Of Contents
Toll-Free Graco Phone Numbers ....GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441 COPYRIGHT 1996, GRACO INC. Graco Inc. is registered to I.S. EN ISO 9001... -
Page 2: Warnings
This equipment is for professional use only. Read all instruction manuals, tags, and labels before operating the equipment. Use the equipment only for its intended purpose. If you are not sure, call your Graco distributor. Do not alter or modify this equipment. -
Page 3: Kit Components
Using the Quick Connectors Use an oil rated at 50 to 200 SUS (ISO grade 7 to 46) at 100 F (38 C), such as Graco motor oil, Part No. To open the quick connector (12), loosen the captive 202–659. - Page 4 Notes...
-
Page 5: Operation
Operation Pressure Relief Procedure 8. Open any fluid drain valves (required in your system), having a container ready to catch the drainage. WARNING 9. Leave the drain valve(s) open until you are ready INJECTION HAZARD to spray again. The system pressure must be manually relieved to prevent the system from If you suspect that the spray tip or hose is completely starting or spraying accidentally. -
Page 6: Service
Service Air Filter Service Regulator Service Repair Kits are available. Refer to page 7. Repair Kits are available. Refer to page 7. If the regulator fails to operate, operates roughly, or vibrates, service it as follows. Every day, drain contaminants from the bowl before reaching the baffle level by opening the drain (D) at the bottom of the bowl (B). - Page 7 Service Repair Kit 238–915 (includes items 101 to Model 1 13–494 107). For Part No. 113–494 Air Air Filter/Regulator Shown Filter/Regulator. Kit parts are marked with an asterisk (101*). Individual Lubricate with no. 2 parts are not available separately. lithium-base grease. Ref.
- Page 8 Service Lubricator Service (Accessory) Repair Kits are available for an accessory lubricator *101 should you add one to the Air Control Kit. 102* To drain the bowl, open the drain (D) at the bottom of the bowl (B). Clean the lubricator regularly to maximize efficiency. Fully relieve pressure and remove the lubricator from the air line.
-
Page 9: Parts
Air Control Kit Parts Part No. 238–881, Series A (includes items 1 to 21) Ref. Part No. Description Qty. 113–494 AIR FILTER/REGULATOR; 3/4 npt(f) inlet and outlet; 5–150 psi (.03–0.1 MPa, 0.3–10 bar) pressure range; 40 micron polypropylene filter 100–549 ELBOW, street, 90 ;... - Page 10 Notes...
-
Page 11: Technical Data
Technical Data MODEL 113–494 AIR FILTER/REGULATOR FLOW CURVE Category Data Maximum air input 250 psi pressure (1.7 MPa, 17.2 bar) Air inlet size 3/4 npsm(f) swivel Air outlet size 3/4 npt(f) Gauge port size (air 1/4 npt(f) 0.56 regulator) Manual drain thread size 7/16–24 uns(m) Air filter element 40 micron polypropylene... -
Page 12: Graco Warranty
Graco distributor to the original purchaser for use. Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defec- tive.
