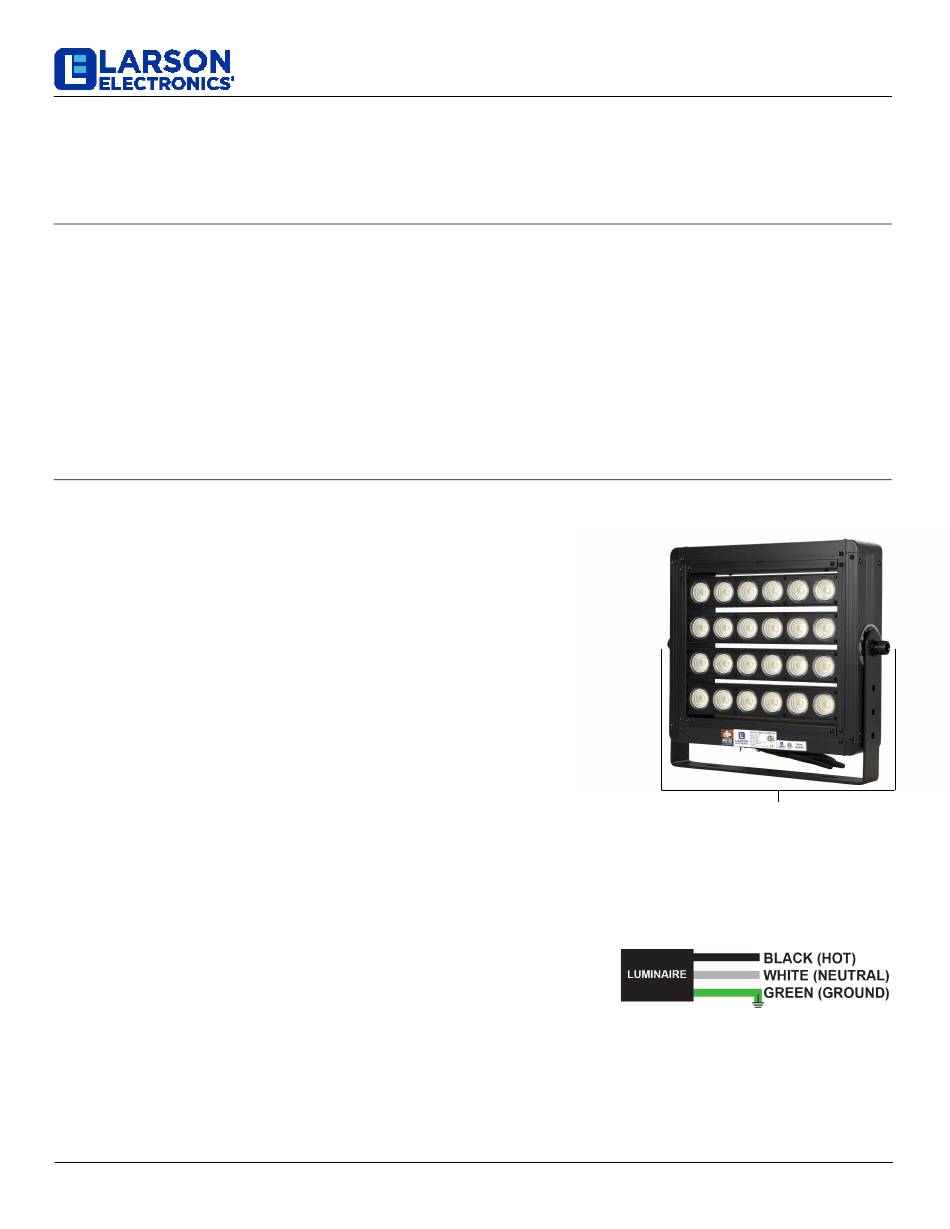

Larson Electronics GAU-LTL-300W-LED Instruction Manual

Do not attempt installation until you are familiar with all warnings, precautions, and procedures outlined within this
instruction sheet.
WARNING
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
CRITICAL SAFETY INSTRUCTIONS:
• INSTALLATION SHOULD ONLY BE CONDUCTED BY A QUALIFIED ELECTRICIAN IN ACCORDANCE WITH NEC
AND ANY RELEVANT LOCAL BUILDING CODES.
• RISK OF FIRE OR ELECTRIC SHOCK. FIXTURE INSTALLATION REQUIRES KNOWLEDGE OF LUMINAIRES
ELECTRICAL SYSTEMS. IF NOT QUALIFIED, CONTACT A QUALIFIED ELECTRICIAN.
• BE CERTAIN ELECTRICAL POWER IS OFF BEFORE AND DURING INSTALLATION AND MAINTENANCE.
• MAKE SURE THE SUPPLY VOLTAGE IS THE SAME AS THE RATED LUMINAIRE FIXTURES VOLTAGE.
TO PREVENT WIRING DAMAGE OR ABRASION, DO NOT EXPOSE WIRING TO EDGES OF SHEET METAL OR
•
SHARP OBJECTS. SUITABLE FOR DAMP LOCATIONS.
INSTALLATION
The fixture will be supplied with a 2.5' pigtail with flying leads and the mount
already affixed to the housing.
Mount following the steps below:
Turn off power at electrical panel.
1.
Mount light by its trunnion mount to a flat surface. Utilize bolts through
2.
predrilled mounting holes.
Adjust lamp vertically by loosening hex bolts on either side.
3.
Swing lamp into final position and tighten any loose bolts.
4.
Wire the whip/power cord to existing power source. Follow proper steps to
5.
weatherproof electrical connections as necessary.
Turn power on.
6.
WIRING
We strongly encourage a licensed electrician install this product
where weatherproofing may be required.
Warning: Check product label for correct input voltage!
Attach supply line wires to the appropriate light fixture wires as shown
in the diagram 
Secure each pair of wires according to the diagram. Utilize a junction box or similar
precautionary steps for weatherproofing all connections if installed in a location where water may come in contact
with the unit. Ensure the unit is properly grounded and that wiring is done according to all local and national electrical/
building codes.
Larson Electronics, LLC
300 Watt High Intensity LED Light
INSTRUCTION MANUAL
Phone: (800) 369-6671
, in all locations especially in outdoor areas
Fax: (903) 498-3364 www.larsonelectronics.com
GAU-LTL-300W-LED
ADJUTMENT HEX BOLTS
device and take
1 of 2
