Larson Electronics GAU-ID-36-1L-T5-FA8 Instruction Manual

Thank you for your purchase of the Larson Electronics GAU-ID-36-1L-T5-FA8 Germicidal UV-C fixture.
IMPORTANT
READ CAREFULLY
FUTURE REFERENCE. THE GAU-ID-36-1L-T5-FA8 MUST BE WIRED IN ACCORDANCE WITH NATIONAL
ELECTRICAL CODE AND ALL APPLICABLE LOCAL CODES. PROPER GROUNDING IS REQUIRED FOR SAFETY.
WE STRONGLY ENCOURAGE ONLY A LICENSED ELECTRICIAN INSTALL, OPERATE AND MAINTAIN THIS
PRODUCT. IF YOU ARE NOT QUALIFIED OR UNFAMILIAR WITH ANY ASPECT OF THIS INSTRUCTION SHEET,
CONSULT AN ELECTRICIAN. THERE ARE NO SERVICEABLE PARTS INSIDE.
WARNING: MAKE SURE POWER IS TURNED OFF BEFORE STARTING THE
INSTALLATION OR PERFORMING ANY MAINTENANCE.
RISK OF FIRE/ELECTRIC SHOCK –
RISK OF PERSONAL INJURY –
RISK OF BURN –
ALLOW FIXTURE TO COOL BEFORE SERVICING.
WARNING: ULTRAVIOLET LIGHT IS HARMFUL TO EYES AND SKIN. DO NOT STARE DIRECTLY INTO THE
ULTRAVIOLET BEAM WITHOUT WEARING PROTECTIVE GEAR TO PROTECT EYES FROM LONG TERM DAMAGE.
UNPLUG LAMP BEFORE SERVICING.
Note: Do not touch bulb with bare hands. The oils in your skin will damage the lamp. Fingerprints will result in reduced
performance and significantly reduce the lifespan of the lamp unless they are removed with alcohol.

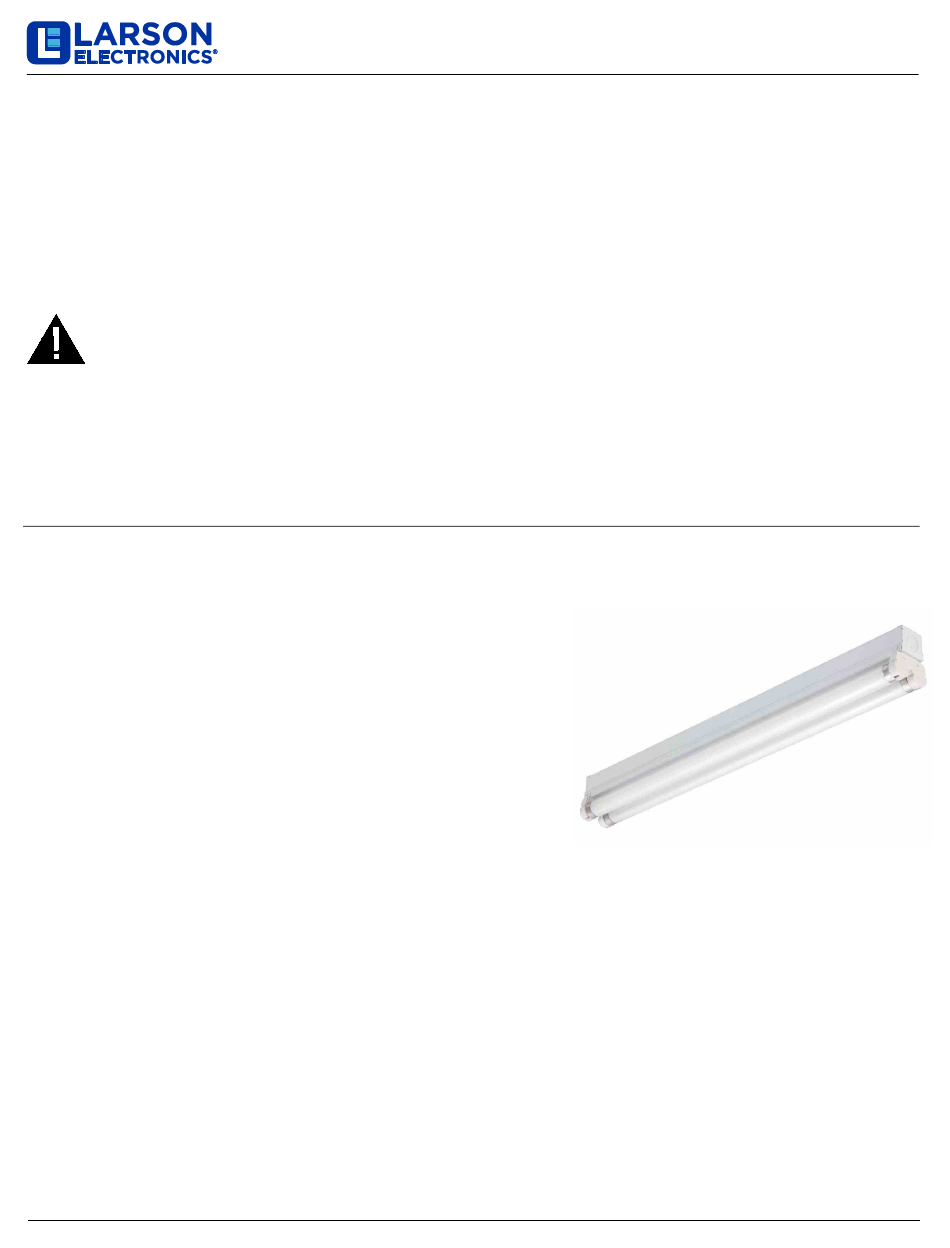

The GAU-ID-36-1L-T5-FA8 from Larson Electronics is a UV-C Germicidal Fluorescent Fixture that offers high light output from a compact
form factor, making it suitable for disinfecting bacteria in large facilities. This 39-watt germicidal fixture operates on 120 V AC and consists
of one T8 fluorescent lamp that provides 13.8 watts of UV-C output at a range of 200nm - 280nm (254nm).
Installation Guide
1.
Remove lamp by rotating 1/4 turn to free from receptacles, and
remove fixture cover by lifting up on the exposed edges of part.
Start in the middle and work outward. Remove parts pack from
inside fixture. Be sure power supply is off at the breaker!
2.
Determine appropriate knockout for removal depending on
incoming power supply wiring. Knockouts are on each end and
on the back of the fixture. Remove knockout by placing a
flathead screwdriver at the edge of the circle opposite the
retaining tabs, and strike gently with a hammer. Flex knockout
back and forth until removed.
3.
If using a strain relief bushing, install the bushing into the hole. Insert power supply wiring through the open hole or
strain relief bushing.
4.
Position the fixture against the desired mounting surface and mark the screw hole locations with a pencil. Be sure to
make these marks in the narrow section of the key holes. Make two small pilot holes in these locations using a 1/16''
drill bit. If you do not hit a stud, use toggle bolts or other suitable hardware capable of structurally supporting the load of
the fixture. Be sure the surface is also capable of supporting the weight of the fixture. If hole is drilled into wood, #10
wood screws should be used.
5.
Partially install screws, about half way in. Position the fixture housing against the mounting surface with screw heads
through the keyholes. Slide the fixture until the screw heads are in the narrow section of the keyhole, and finishing
tightening the screws to secure the fixture in place.
6.
Use wire nuts from parts pack and complete connections with the supply wiring - white to white, black to black, green to
green or ground wire. Be sure supply voltage matches fixture rating. Bundle wiring inside fixture housing and replace
the cover onto the fixture. Reinstall lamp(s) by sliding pins into open slots in receptacles and rotate 1/4 turn to secure.
Larson Electronics, LLC
39W Fluorescent UV-C Fixture - 120V AC
Instruction Manual
BEFORE INSTALLING
DISCONNECT POWER AT BREAKER BEFORE INSTALLING OR SERVICING.
FIXTURE MAY BECOME UNSTABLE OR DAMAGED IF NOT INSTALLED PROPERLY.
Phone: (800) 369-6671
THIS FIXTURE. SAVE
Fax: (903) 498-3364
GAU-ID-36-1L-T5-FA8
THESE INSTRUCTIONS
www.larsonelectronics.com
FOR
1 of 2
