Chicago Pneumatic CP 4132 Manual

CP 4132
•
Before using the tool, read through these instructions carefully.
•
•
Safety Warnings—Symbols in these Instructions
Pay special attention to sections in these documents dealing with safety.
If you see either of these symbols:
WARNING!
A danger, or hazardous procedure which CAN lead to
!
serious injury, or worse.
CAUTION
A risk, or risky procedure which CAN lead to injury, or
!
General Safety Rules
Also read the Red Safety Instructions thoroughly.
•
For your safety, the tool must not be modified.
•
Use approved personal safety equipment.
• Use Atlas Copco Genuine Parts only.
Always replace worn or damaged warning stickers.
damage to the tool.
Recommended lubricants
Lubricant
Synthetic
AIR-OIL
Mineral Oil
Mineral Oil
See Note #2, Below
Temperature Viscosity grade
range ºC
-30 to +50 ISO VG 46-100
-20 to +15 ISO VG 32-46
+15 to +35 ISO VG 46-100
Notes:
1: Tighten bolts regularly, loose bolts
will cause premature breakage

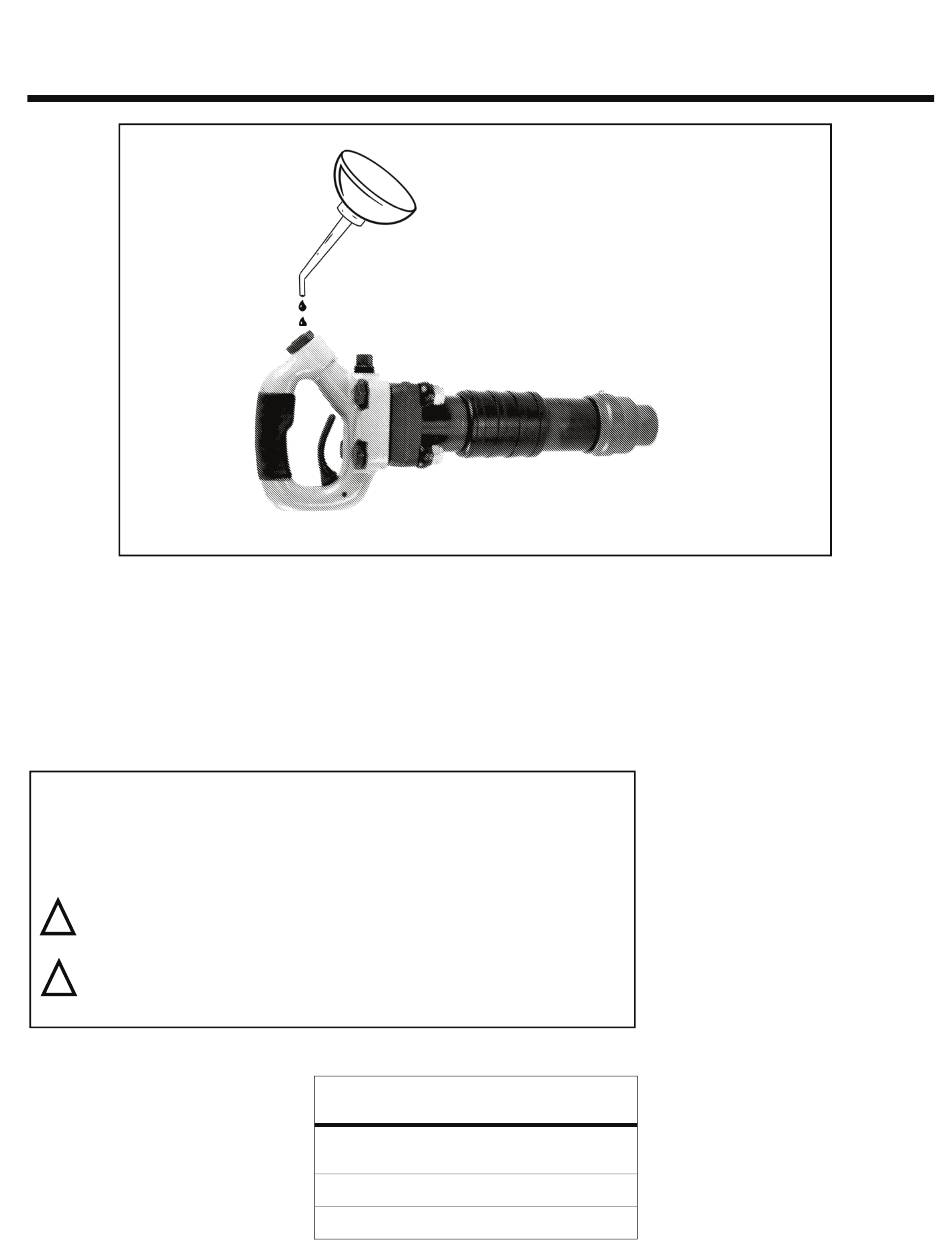

2: Add 5ml of oil into the air inlet,
twice per shift. See table for
recommended lubricants.
Before Starting
Make sure you have:
• the correct hose size and length.
• checked for damage to air line and
couplings.
•
all air connectons correctly
tightened.
•
the correct operating pressure
(max 100 psi). Higher pressure
can be dangerous and damage the
tool.
• blown the air line clean.
• oiled the hammer.
• a steel with the correct shank size.
• checked that the steel is securely
latched. Repair any tool with poor
retention.
•
use proper safety gear: boots,
helmet, gloves and ear protection
are the minimum.
