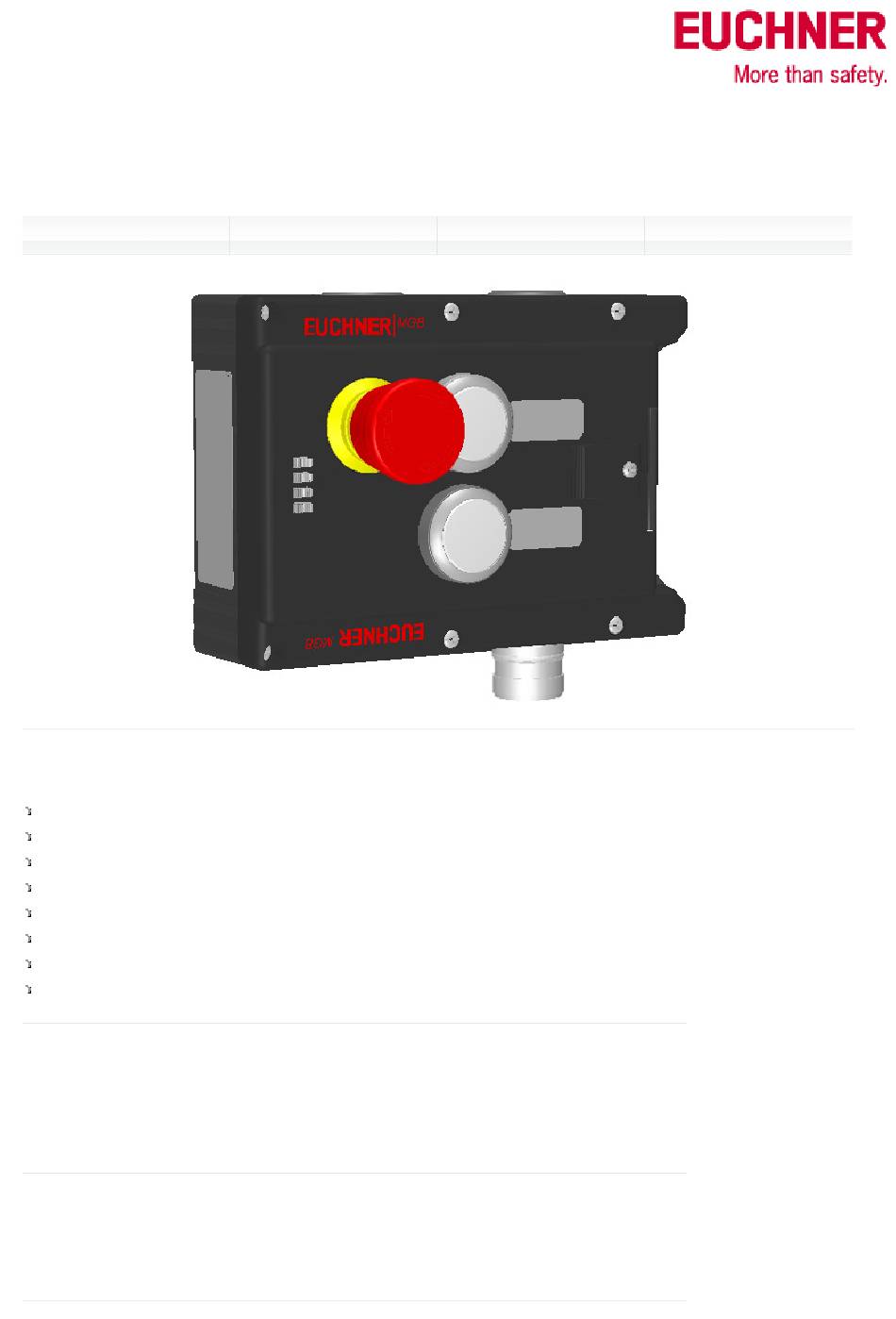

ITEM 121190 MGB-L2-ARA-AM5A1-S1-R-121190
Description
Features
Guard locking with guard lock monitoring
Can be connected in series with other AR devices (e.g. CES-AR and CET-AR)
Emergency stop according to ISO 13850
2 pushbuttons (illuminated)
With lens set, 6 pcs.
Incl. adhesive labels
Plug connector RC18
Unicode
Guard locking type
MGB-
The locking arm is kept in locked position by solenoid force and
L2...
unlocked by spring force when the solenoid is switched off (open-
circuit current principle, electrically locked).
Door hinge
A mechanical door stop is permanently integrated into the evaluation module of
the MGB. A marking on the stop makes adjustment easier.
Technical data
Accessories
Downloads
Advertisement
Related Manuals for EUCHNER MGB-L2-ARA-AM5A1-S1-R-121190
Summary of Contents for EUCHNER MGB-L2-ARA-AM5A1-S1-R-121190
- Page 1 ITEM 121190 MGB-L2-ARA-AM5A1-S1-R-121190 Description Technical data Accessories Downloads Features Guard locking with guard lock monitoring Can be connected in series with other AR devices (e.g. CES-AR and CET-AR) Emergency stop according to ISO 13850 2 pushbuttons (illuminated) With lens set, 6 pcs.
- Page 2 LED indicator The LED indicator indicates all important system and status information. Monitoring outputs OT Bolt tongue inserted in the evaluation module OL Guard locking solenoid in locked position Diagnostics; there is a fault Emergency stop device S1 2 positively driven NC contacts, emergency stop with turn-to-reset, not illuminated Pushbutton S2 1 NO contact, illuminated...
- Page 3 Installation position Door hinge DIN right Switching frequency 0,25 Hz Connection Plug connector RC18 Guard locking principle Open-circuit current principle Locking force F 2000 N Electrical connection ratings Utilization category according to EN 60947-5-2 DC-13 24V 200mA Rated insulation voltage U 30 V Rated impulse withstand voltage U 1,5 kV...
- Page 4 Breaking capacity max.0,25 W Power supply LED 24 V DC Emergency stop Switching voltage 5 ... 24 V Switching current 1 ... 100 mA Breaking capacity max.0,25 W Power supply LED 24 V DC Solenoid control input IMP1, IMP2, IMM Test pulses max.5 ms Test-pulse interval...
- Page 5 3.7 x 10 Emergency stop Emergency stop 0,065 x 10 Mission time 20 y Caution: outputs must be protected with a free-wheeling diode in case of inductive loads. [3, 5] (Reverse polarity protected, regulated, residual ripple <5%, PELV) (no load on outputs) (With energized guard locking solenoid and unloaded outputs OD, OT, OL, OI, +20 °C, 24V) [7, 8] Value at a switching current of 50mA without taking into account the cable lengths...
- Page 6 Dimension drawing Plug connector RC18 Miscellaneous accessories Lens set labeled 120377 AY-SET-LNS-SY01-120377...
- Page 7 125359 AY-SET-LNS-SY02-125359 126158 AY-SET-LNS-SY03-126158 Lens set 6 colors 120378 AY-SET-LNS-0002-120378 Lens set 5 colors 120344 AY-SET-LNS-0001-120344 Adhesive labels 114529 MGB-A-PLATESET-NN01-114529 Features Adhesive labels suitable for MGB evaluation modules, bus modules and control modules silver, blank Packaging unit = 10 pcs. Lens set, three colors 158307 AY-SET-LNS-SY04-158307...
- Page 8 122434 C-M23F19-19XDIFPU30,0-MA-122434 Features M23 female plug, 19-pin Straight plug connector PUR cable Cable length 30 m With flying lead Cores numbered, black Connection cable with plug connector M23, 19-pin, 40m, straight 122435 C-M23F19-19XDIFPU40,0-MA-122435 Features M23 female plug, 19-pin Straight plug connector PUR cable Cable length 40 m With flying lead...
- Page 9 Connection cable with plug connector M23, 19-pin, 10m, straight 110304 C-M23F19-19XDIFPU10,0-MA-110304 Features M23 female plug, 19-pin Straight plug connector PUR cable Cable length 10 m With flying lead Cores numbered, black Connection cable with plug connector M23, 19-pin, 15m, straight 110305 C-M23F19-19XDIFPU15,0-MA-110305 Features...
- Page 10 sealable Instructions Návod k použití – bezpečnostní systémy MGB-L1...AR.-... / MGB-L2...AR.-... a MGB-L1...AP.-... / MGB-L2...AP.-... od V3.0.0 Doc. no. Version Language Download Betriebsanleitung MGB-L1...AR.-... / MGB-L2...AR.- 2119167 04-05/18 3.7 MB ... und MGB-L1...AP.-... / MGB-L2...AP.-... ab V3.0.0 Mode d'emploi MGB-L1...AR.-... / MGB-L2...AR.-... 2119167 04-05/18 3.7 MB...
- Page 11 使用说明书 安全系统 MGB-L1⋯-AR.-⋯ / MGB-L2⋯- 2119167 04-05/18 4.1 MB AR.-⋯和MGB-L1⋯-AP.-⋯ / MGB-L2⋯-AP.-⋯ V3.0.0 以上 Sicherheitsinformation (Teil der Betriebsanleitung Sicherheitssystem MGB-AR/MGB-AP) ab V3.0.0 Doc. no. Version Language Download Sicherheitsinformation (Teil der 123151 01-02/15 0.6 MB Betriebsanleitung Sicherheitssystem MGB- AR/MGB-AP) ab V3.0.0 Información de seguridad (parte del manual de instrucciones Sistema de seguridad MGB- AR/MGB-AP) V3.0.0 o superior...
- Page 12 EU-Konformitätserklärung 2123150 08-01/17 0.3 MB Declaración UE de conformidad Déclaration UE de conformité Dichiarazione di conformità EU declaration of conformity...
