EUCHNER MGB-L1B-PN Series Connecting Manual

Connecting to siemens s7 315f (tia portal v13)
Hide thumbs

Advertisement

Quick Links

Download this manual

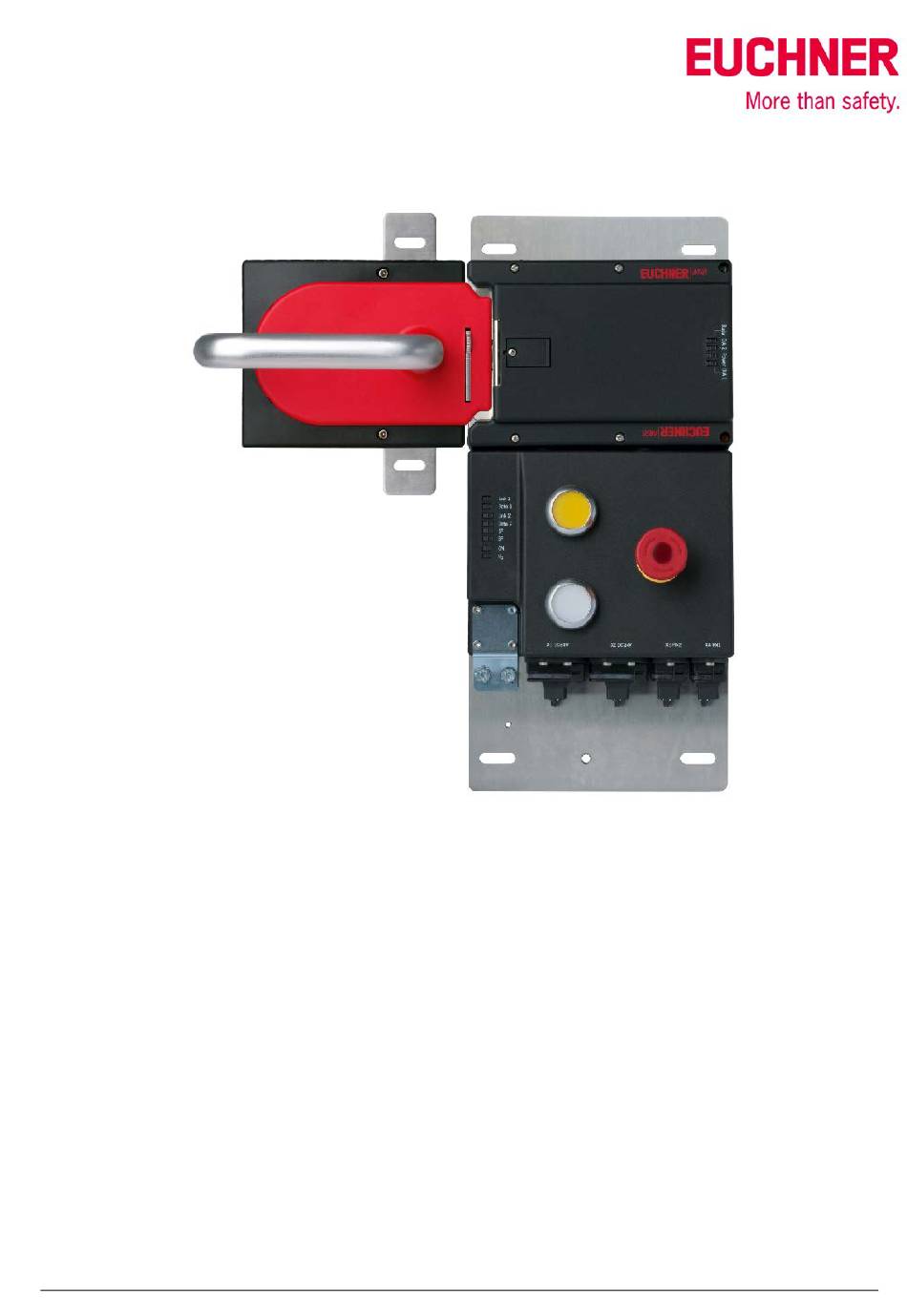

Connecting MGB-L1B-PN... to Siemens S7 315F (TIA Portal V13)
Contents
principle) ............................................................................................................................................................ 2
Components/modules used ................................................................................................................................. 2
EUCHNER ..................................................................................................................................................................... 2
Others .......................................................................................................................................................................... 2
Software ....................................................................................................................................................................... 2
Functional description ......................................................................................................................................... 3
General ......................................................................................................................................................................... 3
Data structure .................................................................................................................................................... 3
Notice ............................................................................................................................................................... 3
Mounting ............................................................................................................................................................ 4
Installing the GSDML file ...................................................................................................................................... 4
Hardware configuration ....................................................................................................................................... 9
Creating the safety program .............................................................................................................................. 14
Example of depassivation ............................................................................................................................................. 14
Explanation: ................................................................................................................................................................ 16
Sources ........................................................................................................................................................... 17
Important note - please observe carefully! .......................................................................................................... 18
Subject to technical modifications; no responsibility is accepted for the accuracy of this information. © EUCHNER 2016
AP000226-01-02/17
Page 1 of 18
