ENGLISH
INSTALLATION INSTRUCTIONS
COLUMN E700

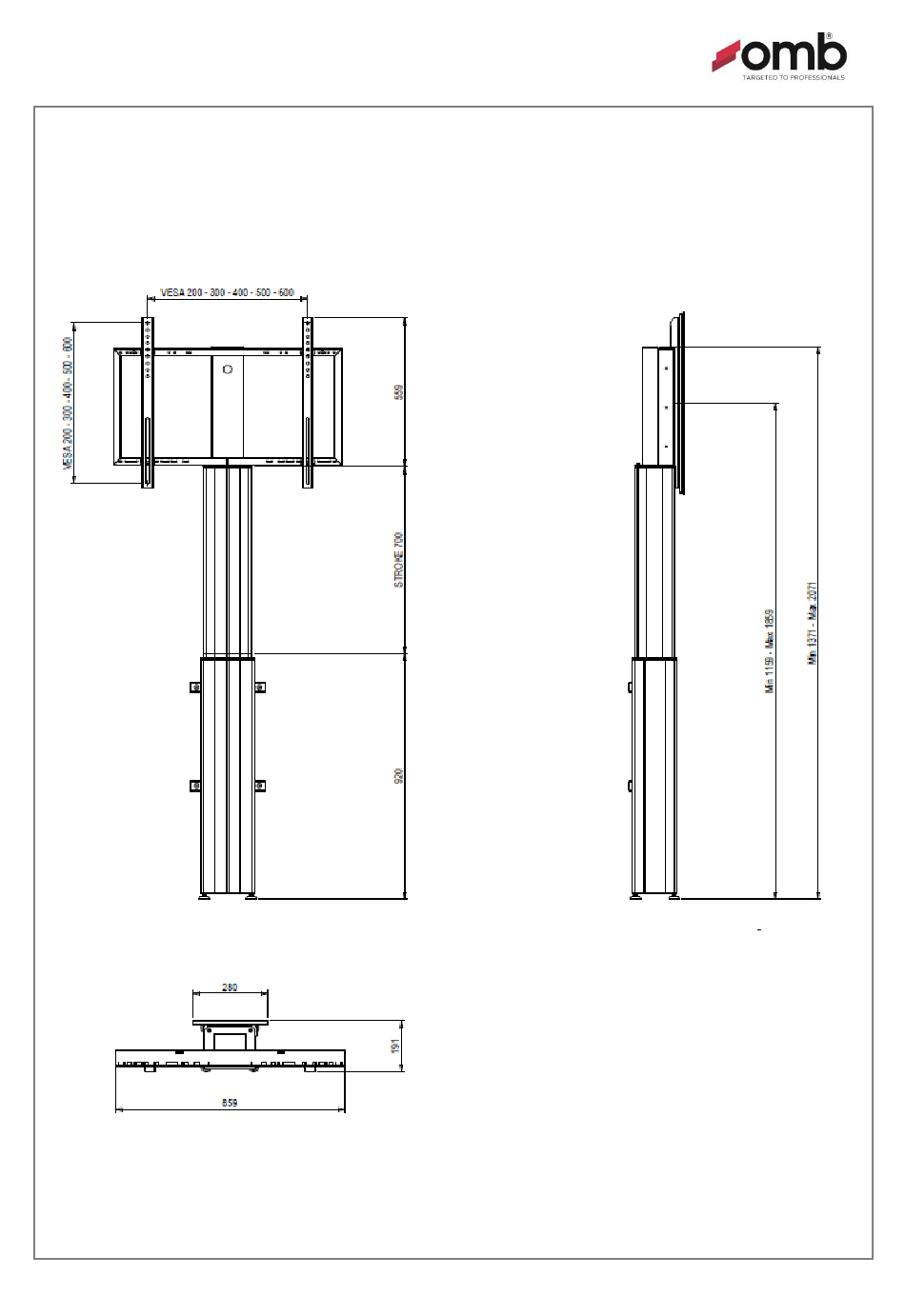

CAPACITY
Max Screen Size: up to 100" (254 cm)
Max weight capacity: 150 Kg (lbs 330)
Min VESA: 200x200
Max VESA: 800x600
REL 2024 – document code 04734
OMB srl│ via Risorgimento 25│ 38070 Stenico (TN)
Tel. +39.0464.771036│ info@ombitaly.it│www.ombitaly.it
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COLUMN E700 and is the answer not in the manual?

Questions and answers

Summary of Contents for OMB COLUMN E700

  • Page 1 COLUMN E700 CAPACITY Max Screen Size: up to 100” (254 cm) Max weight capacity: 150 Kg (lbs 330) Min VESA: 200x200 Max VESA: 800x600 REL 2024 – document code 04734 OMB srl│ via Risorgimento 25│ 38070 Stenico (TN) Tel. +39.0464.771036│ info@ombitaly.it│www.ombitaly.it...
  • Page 2: Safety Instruction

    IMPORTANT SAFETY INSTRUCTIONS Before using the COLUMN E700, please read the following information regarding safety so as to safeguard the integrity of the product and avoid accidents.
  • Page 3 Since the weight of the packed column is about 34 kg, the lifting and the transport should be done with a forklift or similar equipment, or carried by two people simultaneously. OMB srl│ via Risorgimento 25│ 38070 Stenico (TN) Tel. +39.0464.771036│ info@ombitaly.it│www.ombitaly.it...
  • Page 4: Back View

    ASSEMBLY PROCESS INSTALL THE ADJUSTABLE FEET Screw the 4 adjustable feet (B) to the base of the column (A) MOUNTING THE UPPER PART TO MOTORIZED COLUMN fix the main tube with VESA support (C) to the motorized column using 4 screws M10x30 (D). BACK VIEW FRONT VIEW ASSEMBLY THE SCREEN TO VESA SUPPORT...
  • Page 5 ASSEMBLY PROCESS MOUNTING THE COLUMN AND FIXING TO THE WALL WALL IN MASONRY (OPTIONAL SOLUTIONS) product code: 07180 1. Fix the two bars (E) to the column (A) using the screws (F). These two bars must be placed between the column and the wall. 2.
  • Page 6: Electrical Connections

    ASSEMBLY PROCESS ELECTRICAL CONNECTIONS SYSTEM DIAGRAM Connect according to the system diagram and then power on (input AC is 110-220VAC). Remote Six axis control sensor Up button: Press and hold the key to lift the column. Let go and stop. Down button: Press and hold the key to lower the column.
