PRESSURE WASHER
HYW1600E
Instruction Manual
WARNING: Read the instructions carefully before use.
Iss: Jan/25

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYW1600E and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai power products HYW1600E

Summary of Contents for Hyundai power products HYW1600E

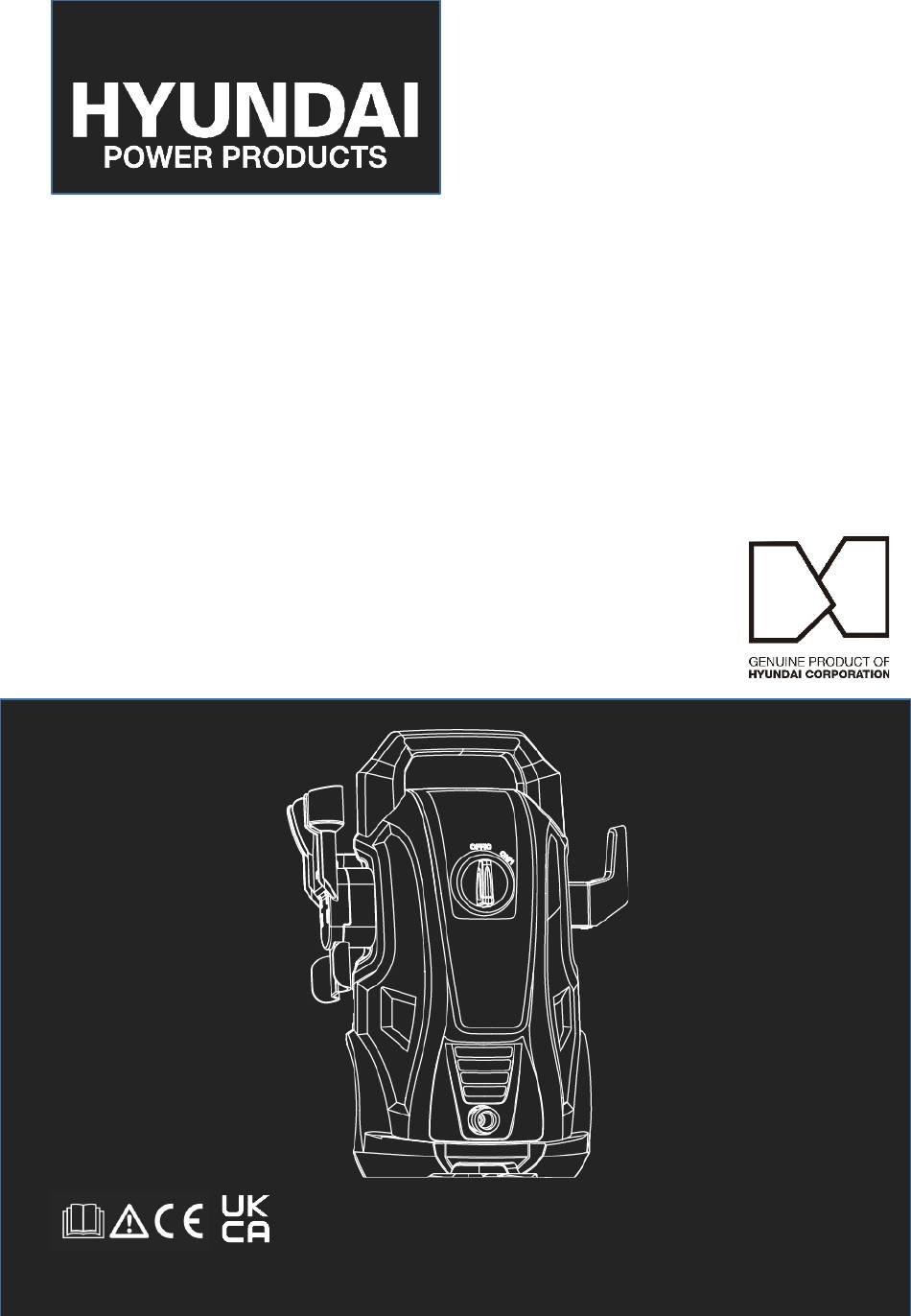

  • Page 1 PRESSURE WASHER HYW1600E Instruction Manual WARNING: Read the instructions carefully before use. Iss: Jan/25...

  • Page 3: Table Of Contents

    Contents Specifications……………………....41 Introduction……..……………………………3 Recycling And Disposal..………………...42 Safety Information…..…………………..4-14 Understand Your Machine.…..…………...4 Personal Safety...…….……………………4-5 Declaration Of Conformity…..…………..43 Inspect Your Machine…………………...5-6 Work Area…….……………………………..6 Notes………………………………….…..44-45 During Use…….…………………………….7-8 Electricity…….………………...………...….9-10 Useful Information…..……………………..46 Double Insulated Devices…..……..10 Our YouTube Channel…..………………..46 Vibrations….…………………………...11 Warranty…………………………….……….46 Noise…….……………………………...11 Manual Updates….……………………….46 Residual Risks…………………....11 Returning Your Product….……………….46 Intended Use………………………....12 Leaving A Review….……………………...46...

  • Page 4: Introduction

    THE MACHINE. Keep for future reference and pass it on if the machine is loaned or sold to another user. This manual has been produced by Hyundai Power Products and should be kept with the product. Please read and understand these instructions before you use your product.

  • Page 5: Safety Information

    Safety Information Understand Your Machine • WARNING! You must read these instructions carefully before operating the machine. Make sure that you are familiar with the controls and properly operate the machine. You must learn how to stop the machine quickly. If you do not follow the warnings and instructions, it may result in fire and/or serious injury.

  • Page 6: Inspect Your Machine

    Safety Information Personal Safety (Continued) • Do not touch parts that might be hot from operation. Allow parts to cool before attempting to maintain, adjust, or service. • Do not overreach. Keep proper footing and balance at all times. This enables better control of the machine in unexpected situations.

  • Page 7: Work Area

    Safety Information Inspect Your Machine (Continued) • Keep the machine in good operating condition. Operating the machine in poor or questionable condition could result in serious injury. • Be sure all safety devices are in working order and warning labels are in place. These items are installed for your safety.

  • Page 8: During Use

    Safety Information During Use • Never attempt to make any adjustments, while the machine is running. • You must switch off the machine: - Before checking or working on the machine. - When transporting the machine. - Whenever you leave the machine unattended. - If the machine starts to vibrate abnormally.
  • Page 9 Safety Information During Use • Do not leave the machine during standby for more then 5 minutes. • Any automatic start of the machine without pressing the gun trigger is attributable to air bubbles in the water or other similar phenomena which do not imply the existence of any defects in the machine.

  • Page 10: Electricity

    Safety Information Electricity (Where Applicable) DANGER : ELECTRICITY CAN KILL – NEVER WORK ON LIVE / ENERGISED EQUIPMENT. • Prior to carrying out any maintenance work you MUST identify electrical isolation methods and isolate all electrical supplies. • Prior to use and with all electrical supplies isolated, you MUST check all electrical cables, plugs and connectors for the following;...

  • Page 11: Double-Insulated Appliances

    Safety Information Electricity (Continued) • Power tools plug must match the outlet. Never modify the plug in any way Unmodified plugs and matching outlets will reduce risk of electric shock. • Water entering a power tool will increase the risk of electric shock. DO NOT abuse the power cord.

  • Page 12: Residual Risks

    Safety Information Vibrations (Where Applicable) • Prolonged use of hand held (operated) machines will cause the user to feel the effects of/from vibrations. These vibrations can lead to white finger (Raynaud’s phenomenon) or carpal tunnel syndrome. This condition reduces the ability of the hand to feel and regulate temperature, causing numbness and heat sensations and may cause nerve damage and circulatory tissue death.

  • Page 13: Intended Use

    Safety Information Intended Use The HYW1600E is an electric pressure washer from HYUNDAI and is powered by a 1600W HYUNDAI motor. The machine is manufactured according to the latest safety requirements. Every precaution is only effective when it is followed exactly.

  • Page 14: Personal Protective Equipment

    Safety Information Personal Protective Equipment Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating or repairing the machine. No protective equipment can ensure 100% protection. When selecting PPE, make sure it’s CE marked and it suits the user in terms of size, fit, etc.
  • Page 15 Safety Information Symbols On The Machine We have provided safety messages in this manual and on the machine. This information alerts you to potential hazards that could hurt you or others. Please read these messages carefully. However, we may not have listed all of the possible hazards, you must also use your own judgement.

  • Page 16: Unboxing

    2. Lay the contents out and check them. If any part is damaged or missing, you must not use the machine. Contact HYUNDAI POWER PRODUCTS immediately. 3. You must keep the packaging material in case the machine needs to be returned or repaired.

  • Page 17: In The Box/Features

    In The Box/Features *Not To Scale Descriptions on next page www.hyundaipowerproducts.co.uk...
  • Page 18 In The Box/Features Main Body This is the main part of the pressure washer. Carry Handle This is located the top of the machine so you can carry it. On/Off Switch Use this to turn the machine on and off. Water Outlet Connect the high pressure hose here.

  • Page 19: Assembly

    Assembly Assembly Overview There are 7 steps to the assembly: STEP 1: Attach The Lance/Trigger Gun Holder STEP 2: Attach High Pressure Washer Hose/Power Cable Holder STEP 3: Attach The Water Inlet Adapter STEP 4: Attach High Pressure Hose To Machine STEP 5: Attach High Pressure Hose To Trigger Gun STEP 6: Attach Water Supply Hose STEP 7: Attach The Accessories...
  • Page 20 Assembly STEP 2 : Attach High Pressure Hose/Power Cable Holder 1. Locate the bracket at the side of the machine and slot the high pressure hose holder into place as pictured below. NOTE: You can use the high pressure hose holder to neatly secure and store the hose without it becoming detached from the machine and/or tangled.
  • Page 21 Assembly STEP 3 : Attach The Water Inlet Adapter WARNING: Ensure the ON/OFF switch is in the OFF position when connecting the water inlet adapter 1. Locate the water inlet at the rear of the machine (as pictured). 2. Screw the water inlet adapter by hand until it is firmly secured onto the machine.
  • Page 22 Assembly STEP 4 : Attach High Pressure Hose To Machine 1. Take the end of the hose, which includes the threaded coupling, and align it to the water outlet at the front of the machine. 2. Insert the end of the hose into the water outlet and screw the coupling clockwise onto the thread of the water outlet until it is tight and secure.
  • Page 23 Assembly STEP 5 : Attach High Pressure Hose To The Trigger Gun 1. Attach the high pressure hose to the gun by pressing the button inwards (as pictured below) and guiding the hose upwards into its designated slot in a simultaneous action. Once the button has been released and the hose has been inserted into its designated slot, the hose will remain in place.

  • Page 24: Attach Water Supply Hose

    Assembly STEP 6 : Attach Water Supply Hose NOTE: The hose connector is included in the scope of the delivery. This is designed to connect the water supply hose to the water inlet adapter. 1. Connect the water supply hose (not included) to the inlet at the rear of the machine using a quick release garden hose connector.

  • Page 25: Attach Accessories

    Assembly STEP 7 : Attach Accessories Included Accessories: Spray Lance You can attach the adjustable nozzle to this. Detergent Bottle Ideal for cleaning cars, motorcycles, etc. Also for applying cleaning products to wood and stone surfaces. Variable Jet Nozzle This creates a powerful, concentrated jet of water. Cleaning Brush Use this to remove stubborn mud, grease and grime, and/or to clean wheels.
  • Page 26 Assembly Spray Lance and Variable Jet Nozzle How To Attach (Spray Lance) 1. Begin by attaching the spray lance to the pressure washer gun handle. 2. Attach by aligning the two studs on the end of the spray lance to the two grooves located on the inside of the trigger gun barrel.
  • Page 27 Assembly Spray Lance and Variable Jet Nozzle (Continued) How To Attach (Variable Jet Nozzle) 1. Attach the adjustable nozzle to the spray lance by aligning the two studs on the end of the nozzle to the two grooves located on the inside of the lance’s barrel. 2.
  • Page 28 Assembly Variable Jet Nozzle How to Use the Variable Jet Nozzle By twisting the nozzle (either anti-clockwise or clockwise) you can change the width of the spray, which, in turn, adjusts the intensity of the spray. The wider the spray, the less pressure which is ideal for delicate surfaces. The narrower the spray, the higher the pressure.
  • Page 29 Assembly Variable Jet Nozzle (Continued) Variable Jet Nozzle Uses You can use the variable jet nozzle to change from a narrow spray to a wide spray. The wider the spray, the less pressure which is ideal for delicate surfaces. The narrower the spray, the higher the pressure. Spray Pattern Uses Surfaces...
  • Page 30 Assembly Attaching The Cleaning Brush To The Trigger Gun 1. Begin by attaching the cleaning brush to the pressure washer gun handle. 2. Attach by aligning the two studs on the end of the cleaning brush to the two grooves located on the inside of the trigger gun barrel. 3.

  • Page 31: Continued On Next Page

    Assembly Foam Producer Bottle CAUTION: Ensure the water supply and machine is switched off before attaching the foam producer bottle to the spray lance. How To Attach 1. The variable jet nozzle must be detached in order to connect the foam producer bottle to the spray lance.
  • Page 32 Assembly Foam Producer Bottle (Continued) Using the Foam Producer Bottle 1. Unscrew the lid of the foam system attachment by turning the nozzle mechanism clockwise. Pour in the detergent. Use the recommended mixing ratio advised by the detergent manufacturer. Image 1. 2.
  • Page 33 Assembly Foam Producer Bottle (Continued) Image 1 How to Increase/Decrease the Detergent Used Increasing the Detergent – Twist the dial anti-clockwise to the + position. Decreasing the Detergent – Twist the dial clockwise to the – position. Image 3 Image 2 How to Adjust the Intensity of Foam Spray Wide Spray Pattern –...
  • Page 34 Assembly Foam Producer Bottle (Continued) Applying the Detergent 1. Once the detergent bottle has been appropriately filled, point the gun towards the intended surface and squeeze the trigger. The detergent will come out through the nozzle. 2. Ensure you apply the detergent thoroughly so it covers the cleaning surface. 3.

  • Page 35: Operation

    Operation Tips For Use • Pressure washing can be dangerous if not done correctly, it is important to prepare before working. Make sure you are wearing the correct PPE. • Hold the pressure washer gun securely with both hands so you have control. •...

  • Page 36: Starting

    Operation Starting YOU MUST read and understand the full safety instruction manual before starting the machine. Ensure water and power supplies are switched OFF before starting. WARNING: Running the pump dry will damage the pump and void the warranty. 1. Before connecting to the mains power supply, always check the switch on the machine is in the off position.
  • Page 37 Operation Starting (Continued) 5. If the trigger is locked, flick the trigger lock back against the trigger to unlock it. Image 4. 6. Hold the gun with both hands and press the trigger). Image 5. 7. You must hold the gun with both hands so you have control. Image 6. Image 4 Image 5 Squeeze and hold the trigger to...

  • Page 38: Stopping

    Operation Stopping 1. Press the On/Off switch to the OFF position. Image 1. Image 1 Turn the dial anti- clockwise to the OFF position to stop the machine. Continued on next page www.hyundaipowerproducts.co.uk...
  • Page 39 Operation Stopping (Continued) 2. Turn the water supply off. Image 2. 3. Unplug from the mains power supply. Image 3. 4. Release the trigger. Image 4. 5. Flick the trigger lock down to stop the trigger (U) from being pressed. Image 5. The gun is fitted with a trigger lock.

  • Page 40: Maintenance & Care

    Maintenance & Care General Maintenance WARNING : Turn OFF the machine and disconnect the power cord before maintaining the machine. You need to wear proper clothing and protective gloves whenever your hands are at risk. • Keep all nuts, bolts and screws tight to be sure the machine is in a safe working condition.

  • Page 41: Replacement Parts/Spares

    Replacement Parts/Spares Information No Hassle Returns Same Day Dispatch* Over 10,000 Spare Parts QR Code – Scan the QR code for a direct link to our website Our Website : power-spares.co.uk Call us : 01646 404406 Email us : sales@power-spares.co.uk To maintain your machine in peak operating condition, proper maintenance and care are crucial.

  • Page 42: Troubleshooting

    Maintenance & Care Troubleshooting NOTE : All corrective actions should be carried out by suitably qualified person/s. WARNING : The appliance is equipped with a motor protection device: in case of intervention, wait a few minutes then disconnect and re-connect the product to the electric system.

  • Page 43: Specification

    Technical Data Specification Model HYW1600E Voltage 240V Frequency 50Hz Power 1600W Working Pressure 90bar Maximum Pressure 135bar Working Flow Rate 5.5L/min Maximum Water Inlet Pressure 4bar Maximum Water Inlet Temperature 50 Degrees Celsius Declared Sound Power Level 92dB(A) Net Weight 6.5kg...

  • Page 44: Recycling And Disposal

    Recycling & Disposal Recycling & Disposal We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and/or Batteries is passed onto you by us. So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site.

  • Page 45: Eu Declaration Of Conformity

    Importer and Authorised Representative Genpower Ltd Isaac Way, Pembroke Dock, SA72 4RW Country of Origin: China Description: 1600W Pressure Washer SKU Code: HYW1600E Date of Issue: 10/06/2024 Regulations and Directives of Compliance 2011/65/EU RoHS • • EN IEC 55014-1:2021 EN IEC 55014-2:2021 •...
  • Page 46 Notes www.hyundaipowerproducts.co.uk...
  • Page 47 Notes www.hyundaipowerproducts.co.uk...

  • Page 48: Useful Information

    Go to YouTube and search ‘Hyundai Power Products’. Warranty Proof of purchase will be required before you make a warranty claim. Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS website: www.hyundaipowerproducts.co.uk Manual Updates Our manuals are constantly being reviewed and updated. Should you find an error, omission or something unclear, please contact us for assistance.

  • Page 49: Product Record

    Product Record Information As soon as you have purchased the machine, we recommend that you fill out the following. If you need to contact an authorised dealer or customer service for information on servicing, you may need to provide the following information. Date Of Purchase:………………………………………………………………………………..
  • Page 50 Contact Us Need Help? Talk To Our Experts Our friendly aftersales team will be more than happy to help you. Phone Call our team on 01646 687 880 Email aftersales@hyundaipowerproducts.co.uk Online Live Chat Go to www.hyundaipowerproducts.co.uk Post Genpower Ltd, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW. Hyundai Support Website Go to hyundaisupport.co.uk www.hyundaipowerproducts.co.uk...
  • Page 52 For Inquiries, Please Contact: GENPOWER LTD Isaac Way, London Road, Pembroke Dock, UK, SA72 4RW. T: +44 (0) 1646 687 880 info@hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk Imported / Distributed by Genpower Ltd for Licensed by Hyundai Corporation Holdings, Korea the United Kingdom & Ireland...
