HIGH PRESSURE WASHER ELECTRIC
HNHP2500SP-195i
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HNHP2500SP-195i and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai power products HNHP2500SP-195i

Summary of Contents for Hyundai power products HNHP2500SP-195i

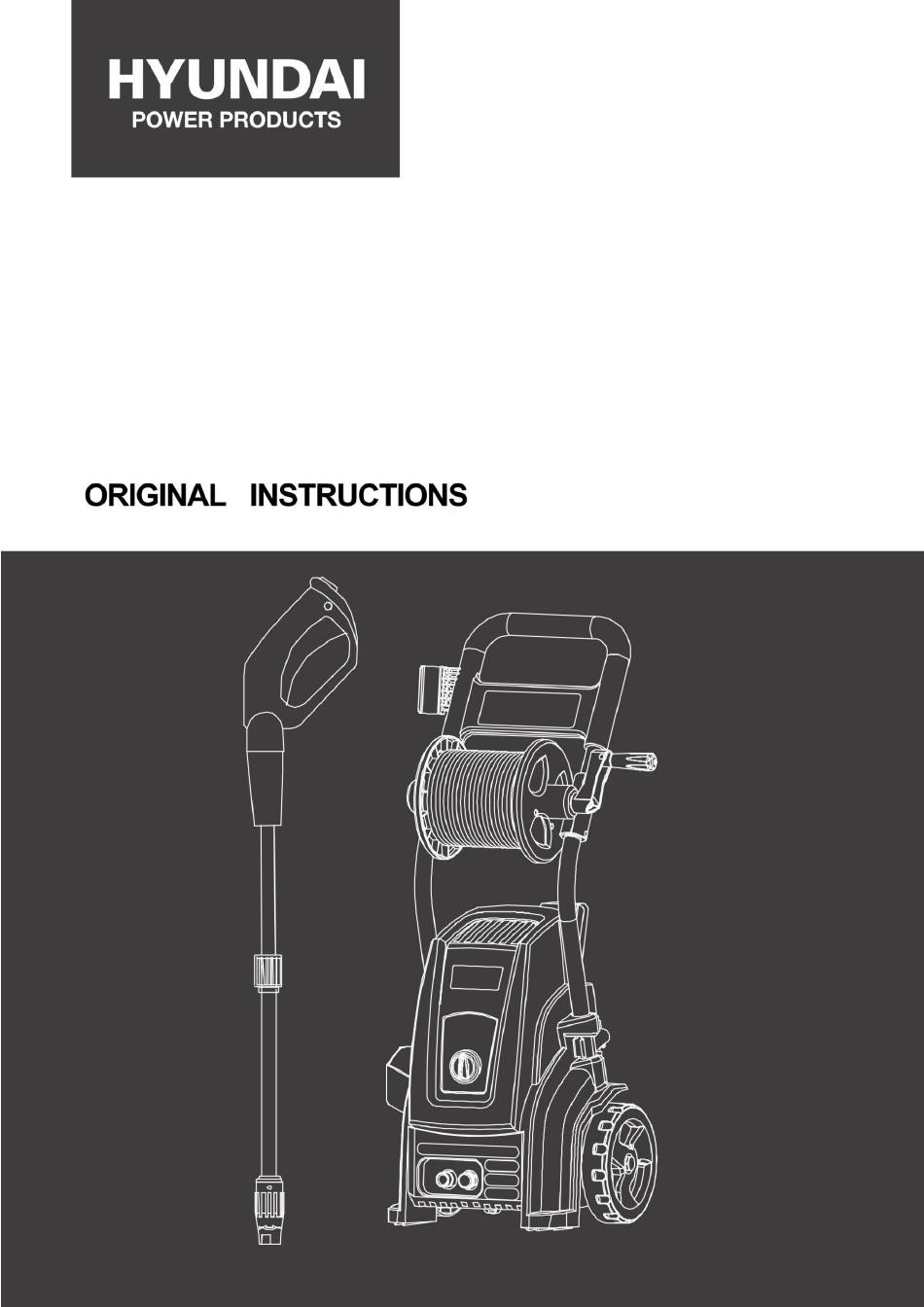

  • Page 1 HIGH PRESSURE WASHER ELECTRIC HNHP2500SP-195i...

  • Page 2: Safety Instructions

    Warning: Do not use appliance without reading the instruction sheet 1. SAFETY INSTRUCTIONS  Use this unit as described in this manual. Any mishandling and any use contrary to instructions for use shall in no case be the responsibility of the manufacturer. ...
  • Page 3 Children shall not play with the appliance.  If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.  Before any connection, check:  The appliance, power cable and accessories are not damaged.
  • Page 4 recommended by the manufacturer. Use of other cleaning or chemical agents may affect the safety of the machine.  WARNING: High pressure jets can be dangerous if misused. The jets should not be directed to people, electrical equipment or the machine itself.
  • Page 5 flow shutters is considered to be unsafe.  WARNING: The machine must be disconnected from the power supply during cleaning or maintenance and when replacing parts or converting the machine to other functions by removing the power source plug.  WARNING: Do not operate the machine if the power cord or any important parts are damaged, such as safety devices, high pressure hoses or the trigger gun.
  • Page 6 remain at a minimum distance of 10 meters from the sprayer.  The high pressure hose must remain connected to the compressor as long as the system is under pressure.  Do not use corrosive or flammable liquids in the machine.
  • Page 7 device that interrupts power if the earth leakage exceeds 30 mA for 30 ms or a device that will homologate the earth circuit.  Before assembling, dismantling, repairing, transporting, servicing and storing, please check if the appliance is disconnected from the power supply.
  • Page 8 weight. Do not overestimate your efforts and get help if necessary. The machine must be transported from  one point to another and disconnected. Always use the handle to push the machine.  Use the handle to lift the machine. ...
  • Page 9 to the kickback force. The power of the gun can cause a kickback and can produce a loss of control of the gun and create accidents and injuries. Hold the gun firmly, and with both hands if possible.  WARNING Always switch off the mains disconnecting switch when leaving the machine unattended.
  • Page 10 Intended Use Your PRESSURE CLEANER can perform a myriad of tasks in the house and in the garden. It effectively cleans a wide variety of surfaces. Your PRESSURE CLEANER is designed to operate from a cold water supply. It operates efficiently with water whose temperature is between 5 and 60 degrees.
  • Page 11 2. YOUR PRODUCT a. Description 1. Hose unwinding handle 2. High-pressure hose 3. Carry handle 4. Gun 5. Lance 6. on / off switch 7. Nozzle 8. Water supply connection...
  • Page 12 Electrical circuit c. Technical specifications Model HNHP2500SP-195i Voltage 230 V˜ 50Hz Assigned pressure 13 MPa Maximum pressure 19.5 MPa (Maximum allowable pressure) Max. inlet water pressure 0,4 MPa Assigned speed 7,0 l/min Maximum flow 8,75 l/min Power 2500 W Max.
  • Page 13 3. INSTALLATION AND CONNECTIONS Connecting pipes Note: The inlet filter must always be installed to filter out sand, limestone and other impurities as these may damage the valves of the pump. Install the high-pressure hose to the trigger gun and screw it in place (5, 7). Connect the machine to the water supply (2, 3 a n d 4).
  • Page 14 4. USE a. Before starting the machine NOTE: Never operate the sprayer without first opening the water supply! Never open the lid of the sprayer while it’s running. Do not use the sprayer in dangerous environments and in places where explosive substances are stored. Do not put water in materials containing asbestos and other materials that can be dangerous to health Do not use liquids containing organic solvents, oil-based acids or solvent, paint or...
  • Page 15 at low pressure. The combination of the action of the chemical agents and rinsing with high pressure is very effective in removing dirt. On vertical surfaces, apply the detergent starting from the bottom moving upwards. This will prevent the detergent flowing downwards and forming trails. Similarly, you need to rinse the surface from the bottom upwards.

  • Page 16: Troubleshooting

    7. DISPOSAL Electrical products should not be disposed of with household products. According to the European Directive 2012/19/EU for electrical and electronic equipment waste and its implementation in national law, used electrical products should be collected separately and disposed of at collection points provided for this purpose. Consult with your local authorities or your dealer for advice on recycling.
  • Page 17 Too small fuse Replace with a higher fuse. The fuse is blown Increase the amperage Try without the extension cable Air in the inlet hose / Let the machine operate with pump the open trigger until the working pressure resumes regularly. Inadequate supply Increase the water pressure, check for blockage of the...
  • Page 18 Declaration of conformity BUILDER SAS ZI, 32, rue Aristide Bergès-31270 CUGNAUX France Declares that the machine designated below HIGH PRESSURE WASHER ELECTRIC HNHP2500SP-195i Serial number: 20200814945-20200815304 20200807485-20200807844 20201000381-20201000740 Is in conformity with the provisions of the Machinery Directive 2006/42/EC and to the national regulations transposing it.

  • Page 19: Warranty

    10. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.

  • Page 20: Product Failure

    11. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.

  • Page 21: Warranty Exclusions

    12. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
