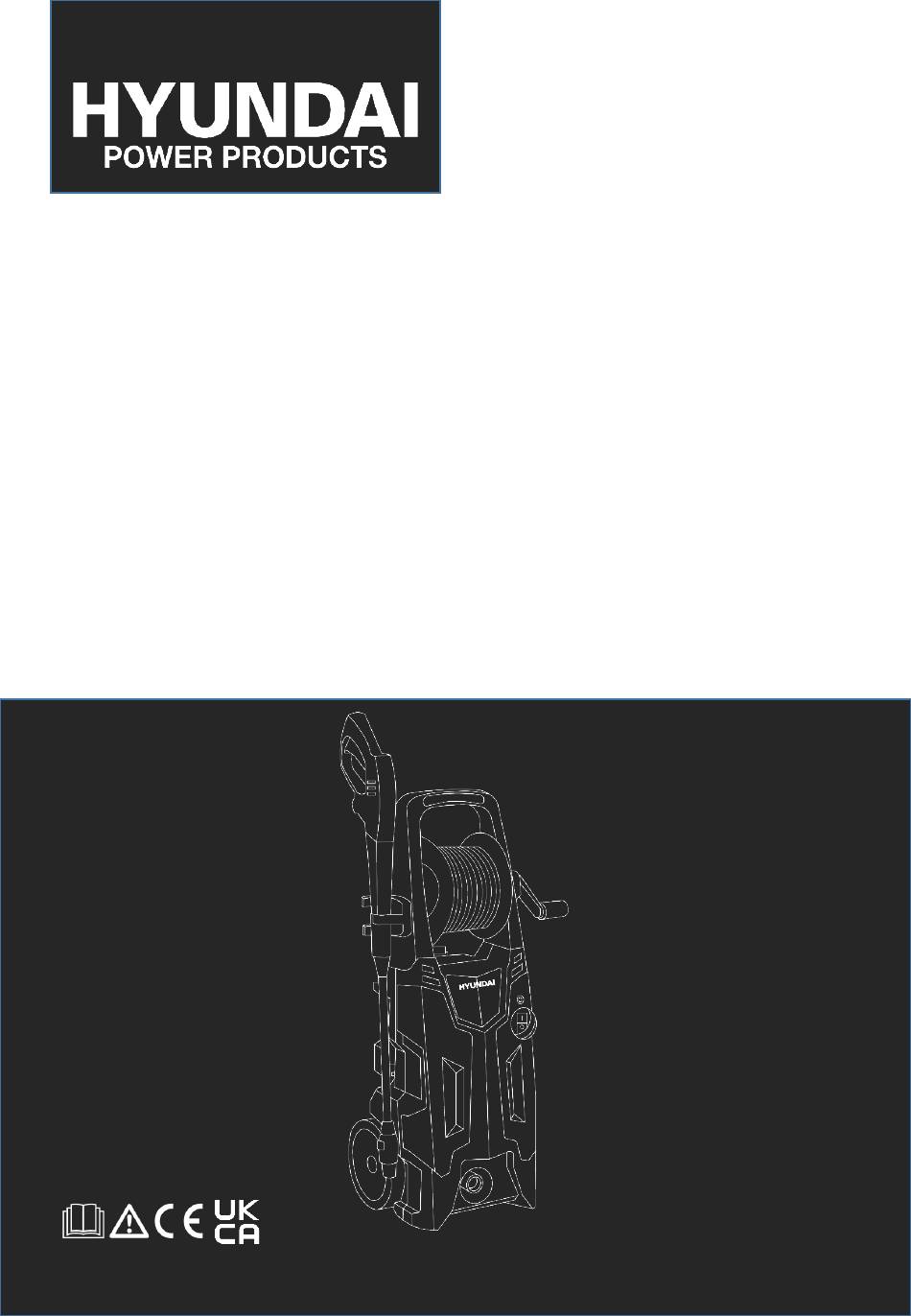

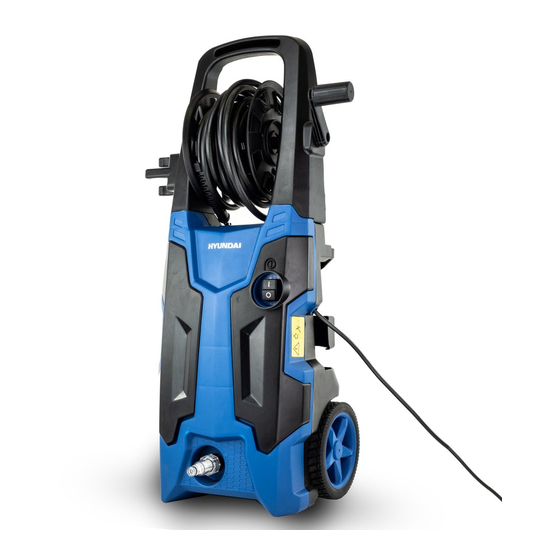

- Page 1 PRESSURE WASHER HYW2500E Instruction Manual WARNING: Read the instructions carefully before use.
-
Page 2: Table Of Contents
Contents Maintenance & Care………………….47-48 Introduction……..……………………………3 General Maintenance……………………47 Storage………………………………………47 Safety Information…..…………………..4-14 Cleaning…...………………………………..47 Understand Your Machine.…..…………...4 Troubleshooting…………………………….48 Personal Safety...…….……………………4-5 Inspect Your Machine…………………...5-6 Specifications……………………....49 Work Area…….……………………………..6 During Use…….…………………………….7-8 Batteries…….…………………………………9 Recycling And Disposal..………………...50 Electricity…….………………...………….9-10 Double Insulated Devices…..……..10 Declaration Of Conformity…..…………..51 Vibrations….…………………………..11 Noise…….……………………………..11 Notes…………………………………………52 Residual Risks…………………....11 Intended Use………………………....12 Useful Information…..……………………..53 Personal Protective Equipment…...13... -
Page 3: Introduction
THE MACHINE. Keep for future reference and pass it on if the machine is loaned or sold to another user. This manual has been produced by Hyundai Power Products and should be kept with the product. Please read and understand these instructions before you use your product. -
Page 4: Safety Information
Safety Information Understand Your Machine • WARNING! You must read these instructions carefully before operating the machine. Make sure that you are familiar with the controls and properly operate the machine. You must learn how to stop the machine quickly. If you do not follow the warnings and instructions, it may result in fire and/or serious injury. -
Page 5: Inspect Your Machine
Safety Information Personal Safety (Continued) • Do not touch parts that might be hot from operation. Allow parts to cool before attempting to maintain, adjust, or service. • Do not overreach. Keep proper footing and balance at all times. This enables better control of the machine in unexpected situations. -
Page 6: Work Area
Safety Information Inspect Your Machine (Continued) • Keep the machine in good operating condition. Operating the machine in poor or questionable condition could result in serious injury. • Be sure all safety devices are in working order and warning labels are in place. These items are installed for your safety. -
Page 7: During Use
Safety Information During Use • Do not operate the machine in confined areas where there may be a risk of crushing the operator between the machine and another object. • Never attempt to make any adjustments, while the machine is running. •... - Page 8 Safety Information During Use • Do not leave the machine during standby for more then 5 minutes. • Any automatic start of the machine without pressing the gun trigger is attributable to air bubbles in the water or other similar phenomena which do not imply the existence of any defects in the machine.
-
Page 9: Batteries
Safety Information Batteries (Where Present) Batteries present a risk if they become damaged by the possible leaking of electrolyte. This electrolyte is an acid and can cause serious burn injuries. Care should be taken when working on or near them. NOTE: the electrolyte may be in a liquid or gel form. -
Page 10: Double Insulated Devices
Safety Information Electricity (Continued) • Power tools plug must match the outlet. Never modify the plug in any way. DO NOT use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. •... -
Page 11: Residual Risks
Safety Information Vibrations (Where Applicable) • Prolonged use of hand held (operated) machines will cause the user to feel the effects of/from vibrations. These vibrations can lead to white finger (Raynaud’s phenomenon) or carpal tunnel syndrome. This condition reduces the ability of the hand to feel and regulate temperature, causing numbness and heat sensations and may cause nerve damage and circulatory tissue death. -
Page 12: Intended Use.......................................12 Useful Information
Safety Information Intended Use The HYW2500E is an electric pressure washer from HYUNDAI. The HYW2500E is powered by a 2500W motor. The machine is manufactured according to the latest safety requirements. Every precaution is only effective when it is followed exactly. -
Page 13: Personal Protective Equipment
Safety Information Personal Protective Equipment Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating or repairing the machine. No protective equipment can ensure 100% protection. When selecting PPE, make sure it’s CE marked and it suits the user in terms of size, fit, etc. -
Page 14: Symbols On The Machine
Safety Information Symbols On The Machine We have provided safety messages in this manual and on the machine. This information alerts you to potential hazards that could hurt you or others. Please read these messages carefully. However, we may not have listed all of the possible hazards, you must also use your own judgement. -
Page 15: Unboxing
2. Lay the contents out and check them. If any part is damaged or missing, you must not use the machine. Contact HYUNDAI POWER PRODUCTS immediately. 3. You must keep the packaging material in case the machine needs to be returned or repaired. -
Page 16: In The Box
In The Box *Not To Scale Descriptions on next page www.hyundaipowerproducts.co.uk... - Page 17 In The Box Main Body Turbo Nozzle This is the main part of the This creates a powerful, pressure washer. concentrated jet of water. Carry Handle Variable Jet Nozzle This slots into the top of the You can use this nozzle to machine so you can carry it.
-
Page 18: Features.........................................18-19 Product Record
Features Descriptions on next page www.hyundaipowerproducts.co.uk... - Page 19 Features Carry Handle Rotating Brush This slots into the top of the The inner part of the brush machine so you can carry it. rotates when in use. Hose Storage Reel Fixed Brush This keeps the high pressure hose Ideal for cleaning stubborn dirt tidy whilst in storage.
-
Page 20: Assembly
Assembly Assembly Overview There are 7 steps to the assembly: STEP 1. Assemble Hose Storage Reel STEP 2. Attach Wheels STEP 3. Attach Accessory & Cable Holder STEP 4. Attach Water Filter STEP 5. Attach Water Supply Hose STEP 6. Attach High Pressure Hose STEP 7: Attach Accessories STEP 1 : Assemble Hose Storage Reel 1. - Page 21 Assembly STEP 1 : Assemble Hose Storage Reel (Continued) 3. Push the hose storage reel handle (E) into the hole and screw in place using the supplied screw (J). 4. Slot the carry handle (B) into the top of the machine. Continued on next page www.hyundaipowerproducts.co.uk...
- Page 22 Assembly STEP 1 : Assemble Hose Storage Reel (Continued) 4. Clip the end of the high pressure hose (H) into the clip (C1) on the hose storage reel. 5. Use the hose storage reel handle (E) to wind up the high pressure hose (H). 7.
-
Page 23: Attach Wheels
Assembly STEP 2 : Attach Wheels 1. Click the wheels (F) into place on both sides of the machine. www.hyundaipowerproducts.co.uk... - Page 24 Assembly STEP 3 : Attach Accessory & Cable Holder 1. Use the supplied screws (J) to attach the accessory & cable holder (D) to the rear of the machine. Continued on next page www.hyundaipowerproducts.co.uk...
- Page 25 Assembly STEP 3 : Attach Accessory & Cable Holder (Continued) You can store the gun (G) in the gun You can keep the power cable (X) holder (D1) on the side of the machine. tidy by wrapping it around the hook. You can store the turbo nozzle and variable jet nozzle as shown below: www.hyundaipowerproducts.co.uk...
-
Page 26: Attach Water Filter
Assembly STEP 4 : Attach Water Filter 1. Make sure the On/Off switch (A1) on the machine is in the OFF position. 2. Connect the water filter (L) to the inlet (W1) on the front of the machine. www.hyundaipowerproducts.co.uk... -
Page 27: Attach Water Supply Hose
Assembly STEP 5 : Attach Water Supply Hose 1. Connect a water supply hose (not included) to the water inlet (W1) at the front of the machine using a quick release garden hose fitting (V). 2. Once you are ready to work, turn the water supply on at the tap. IMPORTANT: Only clean or filtered water should be used for intake. -
Page 28: Attach High Pressure Hose
Assembly STEP 6 : Attach High Pressure Hose 1. Connect the high pressure hose (H) to the outlet (W). 2. Attach the high pressure hose (H) to the gun (G), it will click into place. To release the high pressure hose, push the release button (Z1). If the trigger is not depressed whilst disconnecting the lance from the hose, the connector may be hydro-locked and it will not be possible to remove. -
Page 29: Attach Accessories
Assembly STEP 7 : Attach Accessories Included Accessories: Detergent Spray Bottle Rotating Brush This allows for quick and easy The inner part of the brush rotates application of detergents. when in use. Ideal for smooth surfaces that need a deep clean. Turbo Nozzle The brush rotates its soft bristles to This creates a powerful,... -
Page 30: High Pressure Curved Lance
Assembly High-Pressure Curved Lance How To Attach 1. Attach the high-pressure curved lance (T) onto the gun (G) by lining up the studs on the base of the lance with the slots in the gun. Push the lance into the gun and twist in a clockwise direction. -
Page 31: Turbo Nozzle
Assembly Turbo Nozzle How To Attach 1. Attach the turbo nozzle (M) onto the lance for interchangeable nozzle head (O). 2. Attach the lance (O) onto the gun (G) by lining up the studs on the base of the lance with the slots in the gun. Push the lance into the gun and twist in a clockwise direction. -
Page 32: Variable Jet Nozzle
Assembly Variable Jet Nozzle How To Attach 1. Attach the variable jet nozzle (N) onto the lance for interchangeable nozzle head (O). 2. Attach the lance (O) onto the gun (G) by lining up the studs on the base of the lance with the slots in the gun. - Page 33 Assembly Variable Jet Nozzle (Continued) Adjusting Spray Width To change the width of the spray, twist the nozzle (N) as shown in the image below. DO NOT adjust the nozzle when the trigger is squeezed. The wider the spray, the less pressure which is ideal for delicate surfaces. The narrower the spray, the higher the pressure.
-
Page 34: Detergent Spray Bottle
Assembly Detergent Spray Bottle How To Attach 1. Attach the lance (O) onto the gun (G) by lining up the studs on the base of the lance with the slots in the gun. Push the lance into the gun and twist in a clockwise direction. - Page 35 Assembly Detergent Spray Bottle Filling Detergent Spray Bottle 1. Unscrew the lid of the foam system attachment (K). Pour in the detergent. Use the recommended mixing ratio advised by the detergent manufacturer. Image 1. 2. Screw the lid back on. Image 2. 3.
-
Page 36: Rotating Brush
Assembly Rotating Brush How To Attach 1. Attach the rotating brush (Q) onto the gun (G) by lining up the studs on the base of the brush with the slots in the gun. Push the brush into the gun and twist in a clockwise direction. -
Page 37: Fixed Brush
Assembly Fixed Brush How To Attach 1. Attach the fixed brush (R) onto the gun (G) by lining up the studs on the base of the brush with the slots in the gun. Push the brush into the gun and twist in a clockwise direction. -
Page 38: Patio Cleaner
Assembly Patio Cleaner How To Attach 1. Attach the extension lance (U) onto the gun (G) by lining up the studs on the base of the lance with the slots in the gun. Push the lance into the gun and twist in a clockwise direction. -
Page 39: Premium Foam Spray Bottle
Assembly Premium Foam Spray Bottle How To Attach 1. Attach the premium foam spray bottle (P) onto the gun (G) by lining up the studs on the end of the foam system with the slots in the gun. Push the foam bottle into the gun and twist in a clockwise direction. - Page 40 Assembly Premium Foam Spray Bottle (Continued) Filling Premium Foam Spray Bottle 1. Unscrew the lid of the premium foam spray bottle attachment (P). Pour in the detergent. Use the recommended mixing ratio advised by the detergent manufacturer. Image 1. 2. Screw the lid back on. Image 2. 3.
- Page 41 Assembly Premium Foam Spray Bottle (Continued) Using Premium Foam Spray Bottle Narrow Water Jet Wide Water Jet Rotate nozzle anti-clockwise to create Rotate nozzle clockwise to create a a narrow water jet. wide spread water jet. Reduce Detergent Used Increase Detergent Used Turn adjuster anti-clockwise to reduce Turn adjuster clockwise to increase the the amount of detergent mixture...
-
Page 42: Operation
Operation Pressure Washing Tips • Pressure washing can be dangerous if not done correctly, it is important to prepare before working. Make sure you are wearing the correct PPE. • Hold the pressure washer gun securely with both hands so you have control. •... -
Page 43: Starting
Operation Starting YOU MUST read and understand the full safety instruction manual before starting the machine. 1. Before connecting to the mains power supply, always check the switch on the machine is in the off position. Image 1. 2. Connect to water supply. 3. - Page 44 Operation Starting (Continued) 5. To unlock the trigger (Y), press the top button (Z) in. Image 4. 6. Hold the gun (G) with both hands and press the trigger (Y). Image 5. 7. You must hold the gun (G) with both hands so you have control. Image 6. Image 4 Image 5 Image 6...
-
Page 45: Stopping
Operation Stopping 1. Press the On/Off switch (A1) to the Off position. Image 1. Image 1 Continued on next page www.hyundaipowerproducts.co.uk... - Page 46 Operation Stopping (Continued) 2. Turn the water supply off. Image 2. 3. Unplug from the mains power supply. Image 3. 4. Release the trigger (Y). Image 4. 5. To lock the trigger (Y), press the bottom button (Z). Image 5. The gun is fitted with a trigger lock (Z).
-
Page 47: Maintenance & Care
Maintenance & Care General Maintenance WARNING : Turn OFF the machine and disconnect the power cord before maintaining the machine. You need to wear proper clothing and protective gloves whenever your hands are at risk. • Keep all nuts, bolts and screws tight to be sure the machine is in a safe working condition. -
Page 48: Troubleshooting
Maintenance & Care Troubleshooting NOTE : All corrective actions should be carried out by suitably qualified person/s. WARNING : The appliance is equipped with a motor protection device: in case of intervention, wait a few minutes then disconnect and re-connect the product to the electric system. -
Page 49: Specifications
Technical Data Specification Model HYW2500E Voltage 240V Frequency 50Hz Power 2500W Maximum Flow Rate 510L/hour Maximum Pressure 180bar Net Weight 11.6kg www.hyundaipowerproducts.co.uk... -
Page 50: Recycling And Disposal
Recycling & Disposal Recycling & Disposal We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and/or Batteries is passed onto you by us. So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site. -
Page 51: Declaration Of Conformity
Genpower Ltd Isaac Way, Pembroke Dock, SA72 4RW Country of Origin: China Description: 2500W Pressure Washer SKU Code: HYW2500E Date of Issue: 18/03/2021 Regulations and Directives of Compliance • 2011/65/EU RoHS • 2014/35/EU Low Voltage Directive • 2014/30/EU EMC Directive... -
Page 52: Notes
Notes www.hyundaipowerproducts.co.uk... -
Page 53: Our Youtube Channel
Go to YouTube and search ‘Hyundai Power Products’. Warranty Proof of purchase will be required before you make a warranty claim. Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS website: www.hyundaipowerproducts.co.uk Manual Updates Our manuals are constantly being reviewed and updated. Should you find an error, omission or something unclear, please contact us for assistance. - Page 54 Product Record Information As soon as you have purchased the machine, we recommend that you fill out the following. If you need to contact an authorised dealer or customer service for information on servicing, you may need to provide the following information. Date Of Purchase:………………………………………………………………………………..
-
Page 55: Contact Us
Contact Us Need Help? Talk To Our Experts Our friendly aftersales team will be more than happy to help you. Phone Call our team on 01646 687 880 Email aftersales@hyundaipowerproducts.co.uk Online Live Chat Go to www.hyundaipowerproducts.co.uk Post Genpower Ltd, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW. Hyundai Support Website Go to hyundaisupport.co.uk www.hyundaipowerproducts.co.uk... - Page 56 Importer: GENPOWER LTD Isaac Way, London Road, Pembroke Dock, UK, SA72 4RW. T: +44 (0) 1646 687 880 E: info@hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk Imported / Distributed by Genpower Ltd for the United Kingdom & Ireland Licensed by Hyundai Corporation, Korea...
