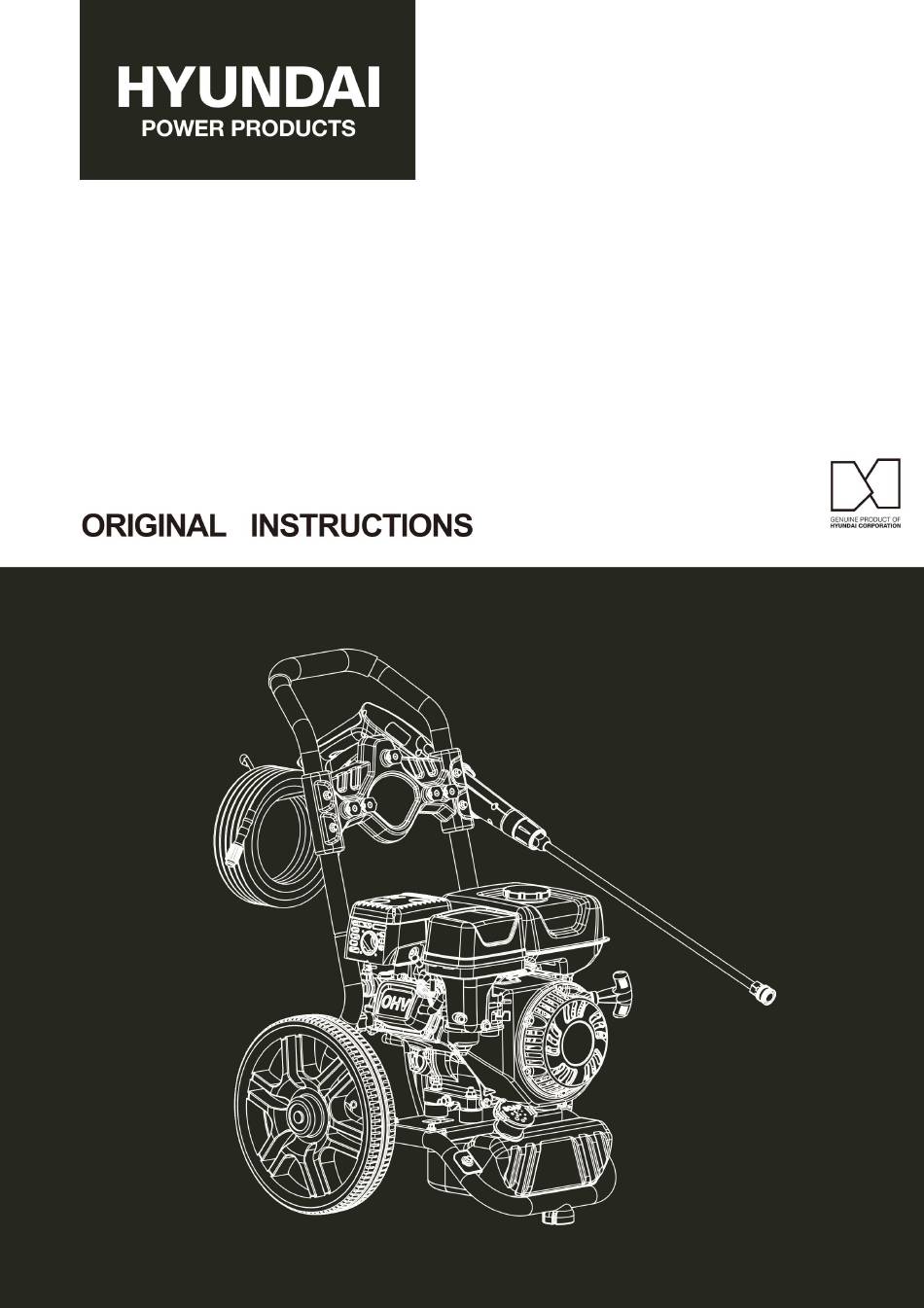

- Page 1 PETROL PRESSURE WASHER HNHPT220-B WARNING: Read thoroughly the instruction manual before using.
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS........................3 2. DESCRIPTION OF THE APPLIANCE....................9 3. ASSEMBLY............................10 4. OPERATION............................13 5. MAINTENANCE...........................21 6. TROUBLESHOOTING........................27 7. TECHNICAL SPECIFICATIONS.......................29 8. PARTS LIST AND DIAGRAM......................30 9. DECLARATION OF CONFORMITY....................32 10. WARRANTY............................32 11. PRODUCT FAILURE........................33 12. WARRANTY EXCLUSIONS......................34... -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS - Read all instructions before using the machine. - Use this unit as described in this manual. Any mishandling and any use contrary to instructions for use shall in no case be the responsibility of the manufacturer. - Follow all instructions given in this manual regarding putting into... - Page 4 - WARNING: Do not use the machine near people unless they wear protective clothing. - Do not direct the jet against yourself or others to clean clothes or footwear. - WARNING: Risk of explosion. Do not spray flammable liquids. - WARNING: High pressure cleaners should not be used by children or untrained persons.
- Page 5 - Children, animals and persons not participating in the use of the machine must remain at a minimum distance of 10 meters from the sprayer. - The high pressure hose must remain connected to the compressor as long as the system is under pressure. - Do not use corrosive or flammable liquids in the machine.
- Page 6 and injuries. - During use, transport, assembly, disassembly, in case of failure, during foreseeable tests or breakdowns, the tool must always remain upright. - Do not use the tool in dangerous situations or when an accident has occurred. Do not use it indoors, in places where exhausted gases can be emitted, etc.
- Page 7 expected for operation. - Do not operate the machine if fuel has been spilled; change location, and wait until the device is dry before restarting it. - Use the machine in an open space and avoid contact with heat generating appliances, such as boilers, water heaters, etc.
- Page 8 Intended use Your PRESSURE CLEANER can perform a myriad of tasks in the house and in the garden. It effectively cleans a wide variety of surfaces. Your PRESSURE CLEANER is designed to operate from a cold water supply. Your PRESSURE CLEANER has been designed for outdoor use only on materials such as stone, wood and plastics.
-
Page 9: Description Of The Appliance
Symbols Read the instruction manual. Warning symbol. Complies with applicable European standards and directives. WARNING! The high jet should not be directed to persons, animals, live devices or the device itself. This machine is not suitable for connection to a drinking water supply. Sound power level guaranteed. -
Page 10: Assembly
Pressure hose Spray wand Air filter Hose hanger Pressure pump Fuel tank assy Handle grip Siphon hose Engine switch Nozzle Wheel kit Recoil starter assy Gun holder Frame Choke Spray gun Engine Fuel valve Trigger Panel Oil drain plug Trigger lock Muffler Dipstick Spray gun... - Page 11 3. Connect the Pressure Hose to the Pump outlet fitting and tighten the nut firmly by hand.See Figure C. 4. Connect the Pressure Hose to the handle of the Spray Gun and tighten the nut firmly by hand. See Figure D. 5.
- Page 12 The water source must be able to provide a minimum of five gallons of clean, cold water per minute at 20PSI. Only use a 5/8" inner diameter (or larger) hose that is rated to meet this capacity. GENERAL INFORMATION Fuel ...
-
Page 13: Operation
4. OPERATION Read the entire “ SAFETY ” section at the beginning of this manual including all text under subheadings therein before set up or use of this product. Improper treatment of Pressure Washer can damage internal components and shorten the life of unit.Failure to follow this warning will void warranty. - Page 14 causing damage. 2.1 Move the Pressure Washer OUTSIDE and place on a flat and level surface. 2.2 Clean the Fuel Cap and the area around it. 2.3 Unscrew and remove the Fuel Cap. 2.4 Remove the Strainer and remove any dirt and debris. Then replace the Strainer.
- Page 15 4.2 Move the Fuel valve to the “ON” position. 4.3 Turn the Engine switch on. NOTICE: If engine does not start check engine oil level. Engine will not start with low or no engine oil. 4.4 Grip the Starter Handle of the Engine loosely and pull it slowly two times to allow the gasoline to flow into the Engine’s carburetor.
- Page 16 NOTICE: Moving the Choke Lever too fast could stall the engine. 5. Using Detergent Only use the Black Nozzle when spraying detergent. Only use detergents specified for pressure washers. 5.1 If the Pressure Washer have a onboard Soap Tank: 5.1.1 Fill Soap Tank with detergent and close the Lid. 5.1.2 Change the nozzle in the wand to Black Nozzle.
- Page 17 Pressure Washer resulting from failure to follow instruction will void warranty. ALWAYS wear approved safety glasses when operating Pressure Washers. Spray can splash back or propel objects, including incorrectly attached accessories. The high pressure stream of water that this equipment produces can cut through skin and its underlying tissues, leading to possible amputation.
- Page 18 25° Nozzle - Green: This nozzle delivers a 25 degree spray pattern for intense cleaning of larger areas. It should only be used on areas that can withstand pressure from this nozzle. 40° nozzle-white:This nozzle delivers a 40 degree spray pattern for intense cleaning of larger areas.
- Page 19 10. Using The Spray Gun WARNING! To prevent accidental discharge of high pressure washer, the trigger lock on the trigger should be engaged whenever the pressure washer is not in use. To disengage the Trigger Lock, push the lock down and into its original position. To Operate The Trigger: 10.1 Squeeze the trigger to start water flow through the nozzle.
- Page 20 12. Pressure Adjustment Increase distance: To vary the pressure on the surface being cleaned,vary the distance between spray wand and the surface being cleaned. Change pressure wand nozzle: Completely shut down Pressure Washer and stop gasoline engine. Change spray nozzle for desired pressure(see "Selecting The Right Nozzle"). Restart engine.
-
Page 21: Maintenance
16.3 Squeeze the Trigger to release excess pressure. 16.4 If pressure washer detergent has been used, run clean water through the system to eliminate detergent residue using the following procedure: 16.4.1 Turn off the Engine as detailed in step 2. 16.4.2 Fill the Detergent Tank (Not supplied)with clean water. - Page 22 Deposit Cup Clean √ Clean, Adjust √* * * Spark Plug Replace √* Spark Arrester Clean √ Valve Clearance Check, Adjust √* * Fuel Tank Clean √* * Emission & √* * Evaporation System Fuel Supply Line Clean Every two years (Replace if necessary * * ) * Recommended to be performed more often than in the schedule if operated in dusty environments.
- Page 23 WARNING! Do not operate Pressure Washer without screen filter. Impurities entering pressure pump can cause internal damage. Cleaning Pressure Washer Daily or before use inspections should include areas around and underneath Pressure Washer looking for signs of fuel or oil leaks. Preventative maintenance should be taken if leakage is found.
- Page 24 All oil should meet minimum American Petroleum Institute(API) Service Class SJ.SL or better.Use no special additives. Select the oil's Viscosity grade according to the expected operating temperature (also see chart). The SAE Viscosity Grade Chart Above 40°F use 10W-30 Between 40°F and 10°Fuse10W-30 Bellow 10°Fuse synthec 5W-30 Replace the Dipstick and Clockwise.
- Page 25 pressurized air to blow dust out of the filter.If this does not get the filter clean, replace it. For foam filters: Wash the filter in warm water and mild detergent several times. Rinse.Squeeze out excess water and allow it to dry completely. Soak the filter in lightweight oil briefly, then squeeze out the excess oil.
- Page 26 5. Pump Preparation: 5.1 Disconnect the Pressure Hose and water supply hose from the Pump. 5.2 Connect a short length of garden hose with a male hose connector on one end to the Pump's water inlet connection. 5.3 Use a funnel to add approximately six ounces of RV antifreeze to the Pump. NOTICE: Use only RV antifreeze.
-
Page 27: Troubleshooting
6. TROUBLESHOOTING Problem Possible causes Probable solutions Engine will not FUEL RELATED: FUEL RELATED: start 1.No fuel in tank or fuel valve is in 1. Fill fuel tank with fresh 87+octane "OFF" position. unleaded stabilizer-treated gasoline 2. Low quality, stale, dirty or and turn fuel valve to “ON"... - Page 28 Engine lacks 1. Cylinder pressure is low. 1. Clean or replace fuel filter. power 2. Dirty air filter. Engine 1. Spark plug cap loose. 1. Check wire connections. misfires 2. Incorrect or defective spark plug. 2. Re-gap or replace spark plug. 3.
-
Page 29: Technical Specifications
Water leaking 1. Worn or broken O-ring. 1. Tighten hose connection. at spray 2. Loose hose connection. gun/wand connection 7. TECHNICAL SPECIFICATIONS Model HNHPT220-B Engine displacement 209cc Start type Recoil start Rated pressure 17.5MPa Allowable pressure 22MPa Rated flow 7.5L/min... -
Page 30: Parts List And Diagram
Sound power level LwA: 107.7 dB(A) K= 3 dB(A) Guaranteed Sound Power Level 111 dB(A) 8. PARTS LIST AND DIAGRAM General assembly diagram... - Page 31 General parts list PART DESCRIPTION PART DESCRIPTION Nozzle Nozzle Nozzle Shock absorbing mount Nozzle Six corners bolts Nozzle Bolts Holder Engine fixed floor Six corners bolts Frame Panel Six corners bolts High pressure hose hook Shock absorbing mount Six corners bolts Detergent siphon hose Hand rubber sleeve Pipe clamp...
-
Page 32: Declaration Of Conformity
BUILDER SAS ZI, 32 rue Aristide Bergès – 31270 Cugnaux - France Declares that the machinery designated below: PETROL PRESSURE WASHER Ref.: HNHPT220-B Serial number: 20230808446-20230808613 E2307-025 Complies with the provisions of the Directive “machinery” 2006/42/EC and national laws transposing it:... -
Page 33: Warranty
10. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 34: Product Failure
11. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 35: Warranty Exclusions
12. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
