HIGH PRESSURE WASHER ELECTRIC
HNHP2500SP-195i6
WARNING: Read thoroughly the instruction manual before using.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HNHP2500SP-195i6 and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai power products HNHP2500SP-195i6

Summary of Contents for Hyundai power products HNHP2500SP-195i6

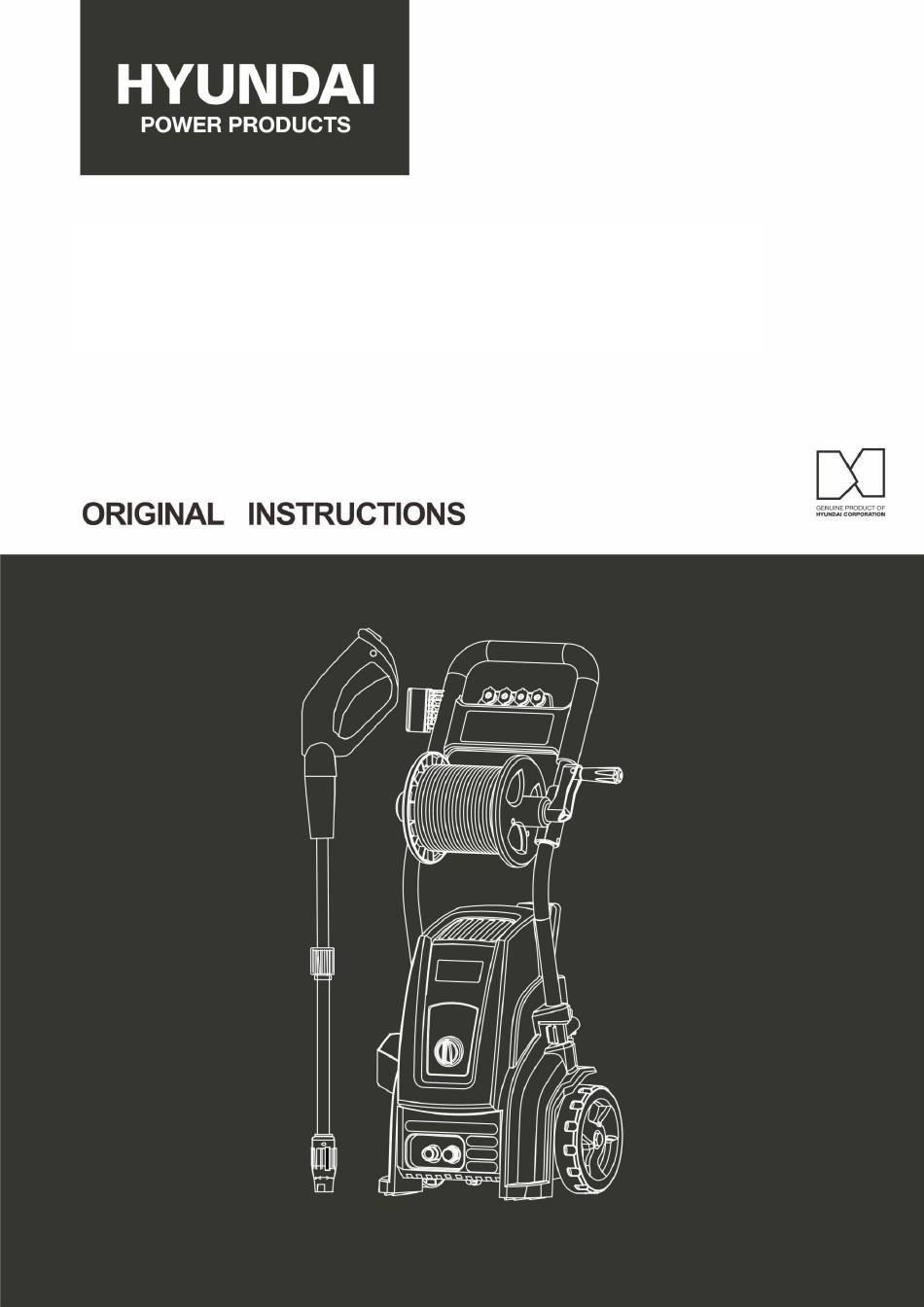

  • Page 1 HIGH PRESSURE WASHER ELECTRIC HNHP2500SP-195i6 WARNING: Read thoroughly the instruction manual before using.

  • Page 2: Table Of Contents

    CONTENTS 1. SAFETY INSTRUCTIONS........................3 2. YOUR PRODUCT..........................9 3. INSTALLATION AND CONNECTIONS..................11 4. USE...............................12 5. CARE AND MAINTENANCE ......................13 6. STORAGE............................13 7. DISPOSAL............................14 8. TROUBLESHOTING......................... 14 9. DECLARATION OF CONFORMITY....................16 10. WARRANTY............................. 17 11. PRODUCT FAILURE........................18 12.

  • Page 3: Safety Instructions

    1. SAFETY INSTRUCTIONS  Use this unit as described in this manual. Any mishandling and any use contrary to instructions for use shall in no case be the responsibility of the manufacturer.  Failure to observe the safety and operating instructions may result in a risk of electric shock, fire and / or personal injury.
  • Page 4 not damaged. In this case, do not use the appliance and take it to your dealer for inspection and repair. ■ The voltage indicated on the rating plate of the appliance corresponds to that of your electrical installation.  Do not disassemble the device yourself. Any disassembly, repair or inspection should be carried out exclusively by a qualified person.
  • Page 5 used by children or untrained persons.  WARNING: Pipes, fittings and connectors are important for the safety of the machine. Only use hoses, fittings and connectors recommended by the manufacturer.  WARNING: To ensure the safety of the machine, use only the original manufacturer's parts or approved by the manufacturer.
  • Page 6  WARNING: Make sure there are no exhaust emissions near the air intakes.  Children, animals and persons not participating in the use of the machine must remain at a minimum distance of 10 meters from the sprayer.  The high pressure hose must remain connected to the compressor as long as the system is under pressure.
  • Page 7 homologate the earth circuit.  Before assembling, dismantling, repairing, transporting, servicing and storing, please  check if the appliance is disconnected from the power supply.  Handle the unit with care, do not drop it.  Do not use the machine in extreme weather conditions, when it is very cold.
  • Page 8 accidents and injuries.  During use, transportation, assembly, dismantling when out of service, testing or foreseeable breakdowns, the tool must keep always stand up.  Do not use the tool where dangerous situations or accidents may occur. Do not use it indoor, in places where are exhausted gases, etc.

  • Page 9: Your Product

    To remove algae and mosses from roofs, brick walls and gutters;  For cleaning of gardening tools and machinery, furniture and grills;  For hygiene and maintenance of kennels, stables, etc. And their surroundings; It is especially  useful for cleaning muddy sidings. The sprayer alone is capable of performing most of the garden cleaning tasks or on buildings.
  • Page 10 Electrical circuit c. Technical specifications Model HNHP2500SP-195i6 Voltage 230 V˜ 50Hz Assigned pressure 13 MPa Maximum pressure 19.5 MPa (Maximum allowable pressure) Max. inlet water pressure 0,4 MPa Assigned speed 7,0 l/min Maximum flow 8,75 l/min Power 2500 W Max.

  • Page 11: Installation And Connections

    3. INSTALLATION AND CONNECTIONS Connecting pipes Note: The inlet filter must always be installed to filter out sand, limestone and other impurities as these may damage the valves of the pump. - Install the high-pressure hose to the trigger gun and screw it in place (5, 7). - Connect the machine to the water supply (2, 3 a n d 4).

  • Page 12: Use

    4. USE Before starting the machine NOTE: Never operate the sprayer without first opening the water supply! Never open the lid of the sprayer while it’s running. Do not use the sprayer in dangerous environments and in places where explosive substances are stored. Do not put water in materials containing asbestos and other materials that can be dangerous to health Do not use liquids containing organic solvents, oil-based acids or solvent, paint or oil...

  • Page 13: Care And Maintenance

    To remove particularly stubborn dirt, using a brush in a combination with a detergent and a high- pressure rinse may be necessary. The next cleaning procedure will help you to better organize your cleaning and obtain optimal results in minimum time: A.

  • Page 14: Disposal

    7. DISPOSAL Electrical products should not be disposed of with household products. According to the European Directive 2012/19/EU for electrical and electronic equipment waste and its implementation in national law, used electrical products should be collected separately and disposed of at collection points provided for this purpose. Consult with your local authorities or your dealer for advice on recycling.
  • Page 15 Too small fuse Replace with a higher fuse. The fuse is blown Increase the amperage Try without the extension cable Let the machine operate with the Air in the inlet hose / pump open trigger until the working pressure resumes regularly. Increase the water pressure, check Inadequate supply for blockage of the hose or change...

  • Page 16: Declaration Of Conformity

    BUILDER SAS ZI, 32, rue Aristide Bergès-31270 CUGNAUX France Declares that the machine designated below HIGH PRESSURE WASHER ELECTRIC HNHP2500SP-195i6 Serial number: 20240410152-20240410311 Is in conformity with the provisions of the Machinery Directive 2006/42/EC and to the national regulations transposing it.

  • Page 17: Warranty

    10. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.

  • Page 18: Product Failure

    11. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.

  • Page 19: Warranty Exclusions

    12. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
