Weka HD16 Instructions For Use Manual

Diamond core drill
Hide thumbs Also See for HD16:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the HD16 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Weka HD16

Summary of Contents for Weka HD16

  • Page 2 FU6D MENU OVERVIEW...
  • Page 3 DIAMOND CORE DRILL HD16, HD18 Please read carefully before putting the machine into operation! With the WEKA core drilling machine you own an excellent product of quality, with which you will certainly be fully satisfied if you use it for its designed use.
  • Page 4 Avoid abnormal posture. Care for safe standing and keep the balance anytime. Do not work on a ladder. Thus you can control the electric tool better in unexpected situations. Wear suitable clothing. Do not wear wide clothing or jewelry. Keep hair, clothing and gloves away from moving parts.

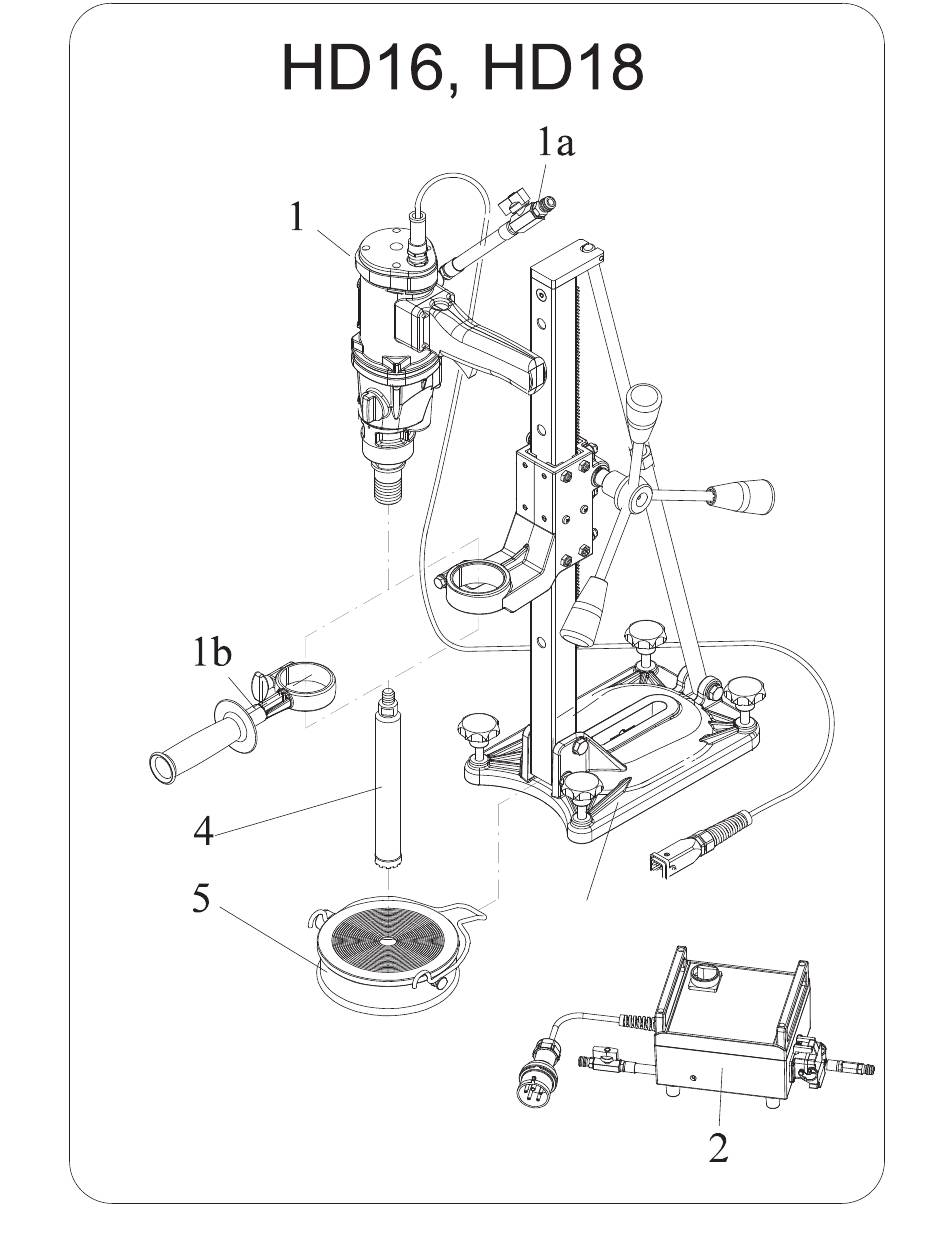

  • Page 5 The HD16 is a hand-held core drill with a water cooled high frequency motor with water supply. The HD16 can be used manually as well as in a stand (3) (drilling hand-held or by stand). It is suitable for drilling rock, concrete and masonry.

  • Page 6: Electrical Connection

    In this case absolutely disconnect the mains plug immediately and check the ground wire. HD16 and FU6 can be used at a generator or a transformer provided by the construction site, if following conditions are kept: operating voltage within +5% and –10 % to nominal voltage...
  • Page 7 After switching the machine off and on again, the motor start again softly. Gear changing The HD16 is equipped with a 3-speed gear unit. Please do never change gears forcibly but only when the machine is just coming or has already come to a stop. Please select the speed according to the drilling diameter (according to chart on the type plate).
  • Page 8 , already downloaded data will be refused and the process will start from the beginning once the user has initiated it again. In case the update process fails please contact WEKA, we can help you to restore the converters firmware.
  • Page 9 Playstore: https://play.google.com/store/apps/details?id=de.wekaelektrowerkzeuge.wekaserviceapp When installing the WEKA Service App it is necessary to allow access to the location. Without permission the App will not be able to communicate with the converter. While establishing a connection depending on the operational system of the smartphone there might be a pairing request.
  • Page 10 "WEKA FU6 D/C Sn.:00000". After selecting a listed converter the "WEKA Service App" will compare the current firmware version to the available versions on the WEKA server and will prompt if an update is available.
  • Page 11 O P E R A T I N G I N S T R U C T I O N S Diamond core bits The tool fixture is prepared for standard drill bits with G ½" (HD16), 1 1/4" UNC (HD1603) or the new M33/3 thread (special model HD1608).
  • Page 12 D E C L A R A T I O N O F C O N F O R M I T Y Description: Diamond core drill - for drilling holes in concrete, stone and masonry Type: HD16, HD18 and FU6 (and versions) from serial no.: 0115001 We hereby declare under our sole responsibility that this product conforms with the following standards:...

This manual is also suitable for:

Hd18
