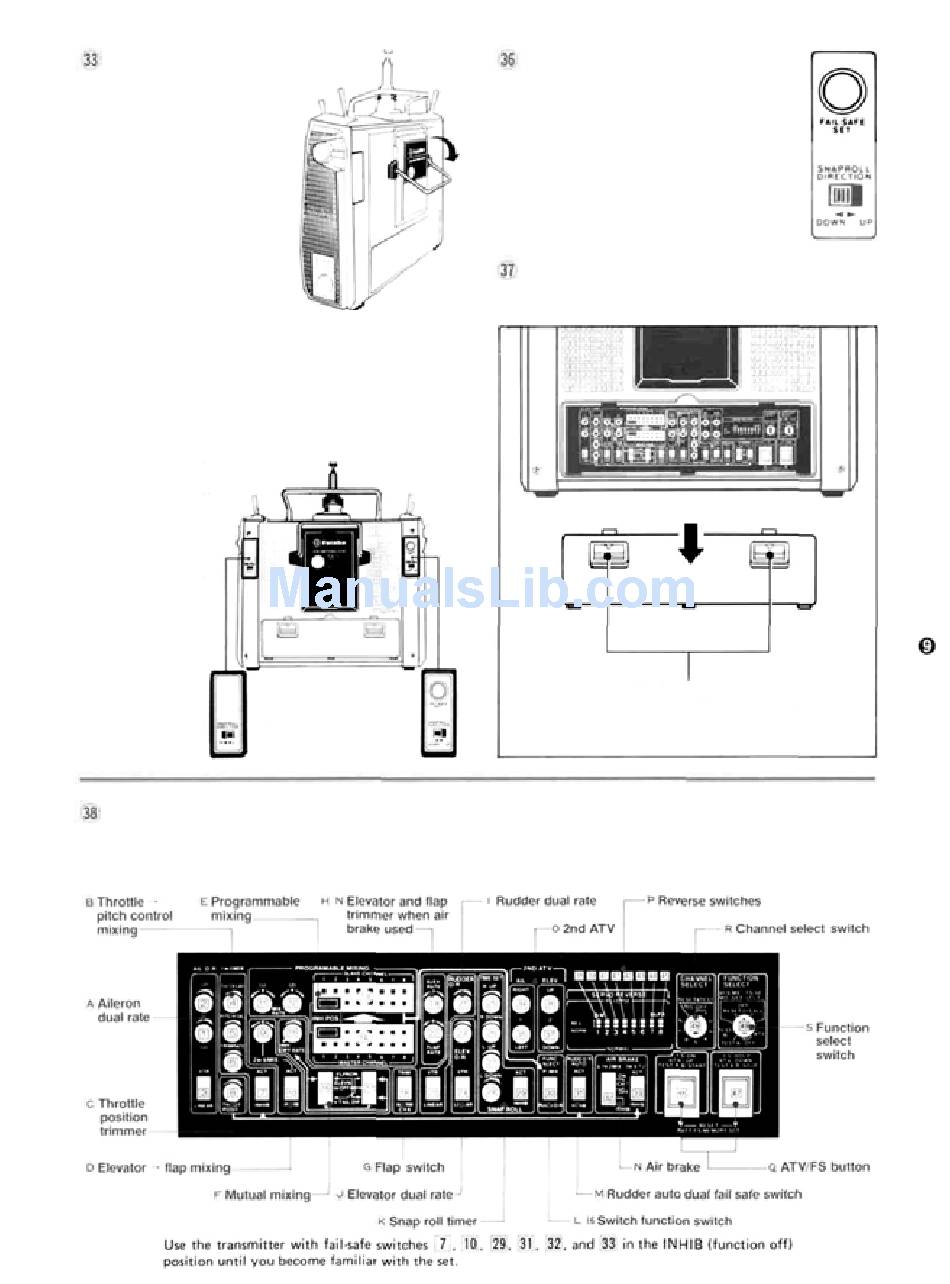

FUTABA FP-8SGAP Instruction Manual page 11

Mini stand
• Use this stand as shown
in Figure when laying
the transmitter down.
This makes operation
easier and protects the
RF module and
transmitter back.
The 4 rubber feet
supplied can also be
installed using the
transmitter back screws.
* NOTE: The 4 rubber feet supplied as accessories
can be installed on the transmitter back
(using the longer back cover retaining
screws) to provide additional protection.
Snap roll direction switch (R/L)
Snap roll direction switch (UP/DOWN)
• These switches control
the direction of
the snap roll
when the
Snap roll
switch 13 is
used.
Left-right
switching
Fig. 8
Trimmer Panel
•This panel contains switches, buttons, and trimmers for setting and adjusting the many versatile
transmitter functions. Use the small screwdriver supplied with the set for making adjustments.
Fail safe set button
• This pushbutton is used when
Back Cover
Fig. 7
• Removal of this cover exposes the trimmer
panel. Remove as shown in Fig. 10.
Up-down
switching
setting the Fail Safe servo
positions (FS instructions
Page 25).
Remove the back cover by pulling
these stoppers in the arrow direc-
tion.
Fig. 9
Fig. 10
Fig. 11
