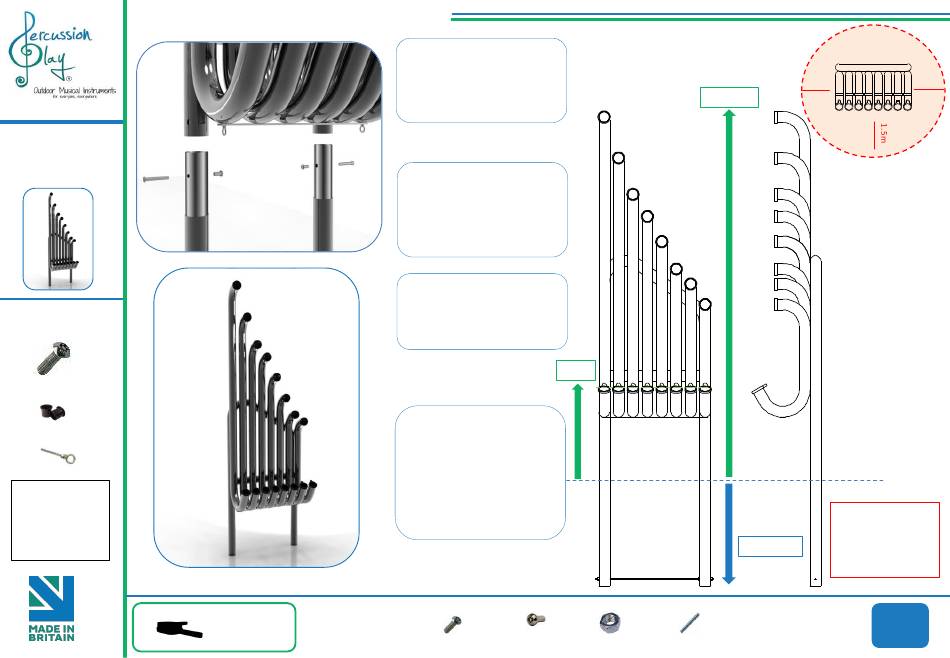

Percussion Play PPTEMB Installation Instructions

Installation Instructions
Ground Fixed
Tembos Diatonic
Page 1 of 3
Instrument
Components:
x16
M10x100 Security Screw
x32
M10 Flanged Slide Bearing
x2
M6 Eye Bolt
Metric Conversion:
300mm/ 12"
600mm/ 24"
900mm/ 35"
1.5m/ 59"
2730mm/ 107"
Weight of heaviest part
BS EN 1176
70kg (Tembo Frame)
Ground Fix
Pair Neoprene
Paddles X1
Components:
1. Locate Tembos frame onto
legs and, and bolt into place
using pre drilled holes, 2 bolts
per post.(See Assembly
Guide)
2.Excavate 1 hole for Tembos
W300xL900 by 600mm deep
in desired location upon
decision from customer. (See
Ground Fix Post Installation
sheet)
3. Insert the Ground Fix Bar
between the 2 bases of the
legs and fix in place with the
nuts provided (See Ground Fix
Post Installation sheet)
KS1,2
4. Locate frame into hole
according to customers
preference. Once happy fill
holes using rapid hardening
concrete. Be sure to compact
concrete around legs and
leave to dry according to
manufactures guidelines.
x2
x2
M10x70 Security Screw
M10 Barrel Nut
2730mm
600mm
Spares available from
x4 x1 percussionplay.com
local distributor
M10 BZP Nut M10 x 800 Bar
1.5m
1.5m
Install Instrument
with 1.5m free space
(from widest point)
around it.
Ground Surface
CAUTION: Tembos
surface can get hot
in direct sunlight, if
possible install in
shaded areas.
80 Kg
or from your
