Operating manual for micro annular gear pumps
mzr-2942X1-cp
HNP Mikrosysteme GmbH
Bleicherufer 25
D-19053 Schwerin (Germany)
Phone:
Fax:
E-mail:
https://www.hnp-mikrosysteme.de/en
Last update: May 2025
+49 385/52190-301
+49 385/52190-333
info@hnp-mikrosysteme.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the mzr-2942X1-cp and is the answer not in the manual?

Questions and answers

Related Manuals for HNP Mikrosysteme mzr-2942X1-cp

Summary of Contents for HNP Mikrosysteme mzr-2942X1-cp

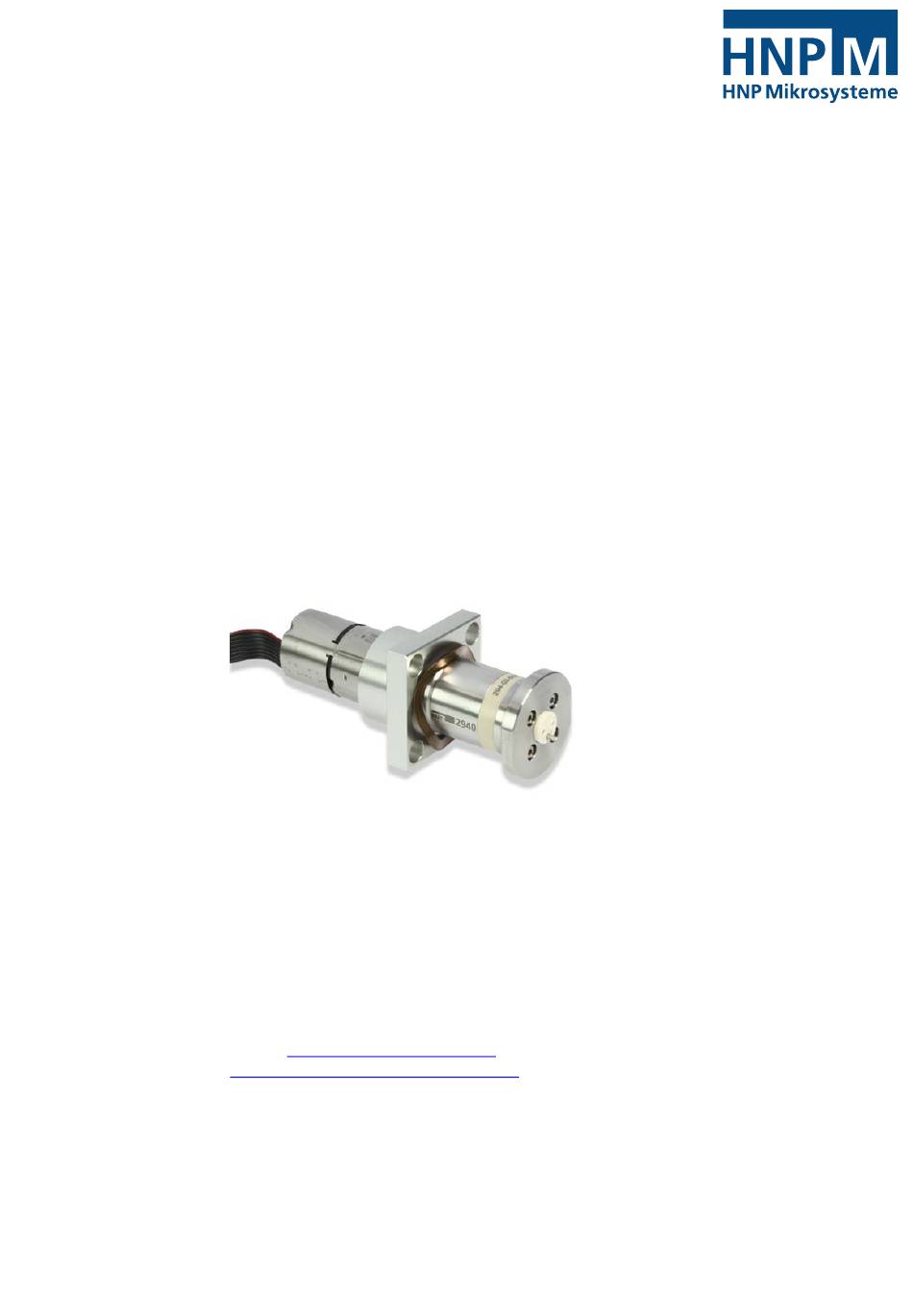

  • Page 1 Operating manual for micro annular gear pumps mzr-2942X1-cp HNP Mikrosysteme GmbH Bleicherufer 25 D-19053 Schwerin (Germany) Phone: +49 385/52190-301 Fax: +49 385/52190-333 E-mail: info@hnp-mikrosysteme.de https://www.hnp-mikrosysteme.de/en Last update: May 2025...
  • Page 2 Without prior explicit written permission of HNP Mikrosysteme GmbH no part of this manual may be, copied, reproduced or processed. This manual has been prepared with care. HNP Mikrosysteme does assume no liability for any errors in this manual and resulting consequences. Likewise, no liability is assumed direct or subsequent damages arising from an incorrect use of the devices.

  • Page 3: Table Of Contents

    Contents Operating manual mzr-2942X1-cp Contents General Information Application scope of the pumps Product information Measurements Flow charts Technical data of the micro annular gear pump mzr- 2942X1-cp Technical data of the drive 1.6.1 Pin assignment with connector Safety instructions Safety symbols in this operating manual...
  • Page 4 Contents Operating manual mzr-2942X1-cp 5.5.3 Startup with an external 0(4)-20 mA current signal 5.5.4 Startup with external potentiometer 5.5.5 Startup with the RS-232 interface 5.5.6 Startup of the pump units with network mode (NET1 Command) Start Up / Shut Down...
  • Page 5 Contents Operating manual mzr-2942X1-cp 17.1 General information 17.2 Declaration of media in contact with the micro annular gear pump 17.3 Shipment Declaration of media in contact with the micro annular gear pump and its components Appendix Last update: May 2025...

  • Page 7: General Information

    In case assistance is needed, please indicate the pump type visible on the housing. Application scope of the pumps The micro annular gear pump mzr-2942X1-cp described in this manual are suitable for continuous delivery and discrete dosage of water, watery solutions, solvents, methanol, oils, lubricating liquids, paints and varnishes as well as many other liquids.

  • Page 8: Product Information

    1 General Information Operation manual mzr-2942X1-cp Product information This manual is valid for the micro annular gear pumps mzr-2942X1-cp manufactured by HNP Mikrosysteme GmbH, Bleicherufer 25, D-19053 Schwerin, Germany. The bottom line of this manual shows issue and date of issue of the manual.

  • Page 9: Technical Data Of The Micro Annular Gear Pump Mzr

    1 bar * with additional equipment table 1 Technical data of the micro annular gear pump mzr-2942X1-cp The material properties of a liquid (e.g. viscosity, lubricating property, particle Warning content, corrosiveness) impacts the technical data and the lifetime of pumps.

  • Page 10: Technical Data Of The Drive

    Operation manual mzr-2942X1-cp Technical data of the drive The micro annular gear pump mzr-2942X1-cp is provided with a canned motor with integrated motion controller. The motor uses a high dynamic of the micro annular gear pump. With the internal control unit it is possible to manage lower RPM ranges down to 10 RPM.

  • Page 11: Pin Assignment With Connector

    1 General Information Operation manual mzr-2942X1-cp 1.6.1 Pin assignment with connector Description Digital Input 24VDC (U Analog input Analog GND Fault output RS-232 RxD / CAN-L (Interface receive) RS-232 TxD / CAN-H (Interface send) table 3 Pin configuration of the motor cable...

  • Page 12: Safety Instructions

    2 Safety instructions Operation manual mzr-2942X1-cp Safety instructions Please comply not only with the general safety instructions listed below, but also with specific safety instructions mentioned in the following chapters. Safety symbols in this operating manual Non respect of the safety instructions marked with the following signs...

  • Page 13: Safety Instructions For The Operator

    Please provide for an adequate air ventilation and thus cooling of the motor. The micro annular gear pump mzr-2942X1-cp must not be used in areas exposed to explosion risks or in proximity of inflammable gases and vapors.

  • Page 14: Improper Modes Of Operation

    2 Safety instructions Operation manual mzr-2942X1-cp Improper modes of operation The safety of operation of the delivered device can only be insured by correct use, as described in chapter 1. The limit values given in this manual must not be exceeded in any case.

  • Page 15: Transport And Intermediate Storage

    Transport To avoid any transport-related damage, the package must be protected against shocks. HNP Mikrosysteme guarantees that all goods leave the factory in the best condition. Any noticed damage should be reported to the concerned forwarding agent, authorized dealer or to HNP Mikrosysteme as manufacturer.

  • Page 16: Description Of The Pump

    4 Description of the pump Operation manual mzr-2942X1-cp Description of the pump Principle of the Micro annular gear pumps Micro annular gear pumps are positive displacement pumps. They contain two rotors bearing slightly eccentrically to each other; an externally toothed internal rotor and an annular, internally toothed external rotor (see figure 4).
  • Page 17 Example: The pump mzr-2942X1-cp feeds with its displacement volume of 12 µl with 3000 RPM and a volumetric efficiency of 100 % referring to the above-mentioned formula the flow rate of 36 ml/min.

  • Page 18: Construction

    The micro annular gear pump head is available with one fluid connection versions. fluid connectors 8-pole connector connection cable pump head figure 7 Construction of the micro annular gear pump mzr-2942X1-cp Technical data subject to change without prior notice! Last update: May 2025...

  • Page 19: Materials And Liquids

    4 Description of the pump Operation manual mzr-2942X1-cp Materials and liquids Wetted parts mzr-2942X1-cp Rotors -Ceramics Bearing case PEEK™ Bearing - Ceramics Dynamic seal FPM (fluoroelastomer) static seal FFPM (perfluoroelastomer) Shaft -ceramics Fluid connectors PEEK™ table 5 Construction materials of the wetted parts The resistance of the wetted parts must be checked and ensured by the operator before operation.
  • Page 20 4 Description of the pump Operation manual mzr-2942X1-cp figure 8 dimensions manifold mzr-2942X1-cp M2.1 In order to prevent foreign bodies from penetrating into the pump, the liquid inlet and outlet are protected by plastic plugs or screws. Warning When installing the pump, ensure that there is no gap between manifold adapter and fixing support located.

  • Page 21: System Integration

    − Operating temperature range If you notice any difference between the required and the delivered pump type, please contact HNP Mikrosysteme. Do not put the pump into operation without prior approval. Mounting of the micro annular gear pump The favored mounting position of the micro annular gear pump is horizontal.
  • Page 22 5 System integration Operation manual mzr-2942X1-cp HNP Mikrosysteme offers a choice of standard filters covering a broad spectrum of applications. You may count on our assistance for the selection of the most suitable filter. In order to select the best adapted filter, such operating parameters as the flow rate, the viscosity and the degree of pollution of the liquid will be needed.

  • Page 23: General Instructions For The Assembly Of The Liquid Supply Network

    5 System integration Operation manual mzr-2942X1-cp General instructions for the assembly of the liquid supply network Foreign bodies and dirt particles can block the micro annular gear pump and lead to its damage. Please note that all the components of the liquid supply system should be Warning clean and flush them if needed before pump installation.
  • Page 24 5 System integration Operation manual mzr-2942X1-cp fitting lock ring ferrule tube/ pipe plain chamfer figure 9 Fluid connection fitting 1/4"-28 UNF, stainless steel 1. Cut the tube with a hose cutter to the 90° angle. Metal tubing, that produce swarf during cutting must be throughoutly cleansed and flushed.

  • Page 25: Connection Of The Micro Annular Gear Pump To The Power Supply

    In order to operate the pump a supplementary source of 24 VDC will be required. The ampacity of the voltage source should amount to around 2 A for the micro annular pumps mzr-2942X1-cp. The micro annular gear pump is connected via the Terminal Box S-G05. This enables an easy startup of the pump due to: −...
  • Page 26 5 System integration Operation manual mzr-2942X1-cp alternative serial power supply interface 24 V DC of PC RS-232 Power In RS-232 Power In 24 VDC 24 VDC Term inal Box S-G05 Term inal Box S-G05 HNP M ikrosystem e Gm bH...

  • Page 27: Startup With Potentiometer

    5 System integration Operation manual mzr-2942X1-cp Installation of the cable wires − tool: screwdriver blade 2.5 x 0.4 mm − open the spring clamp with the screwdriver through the side slot − cable in cable opening place (cable can be used with or without ferrule) −...

  • Page 28: Startup With External 0-10 V Signal

    5 System integration Operation manual mzr-2942X1-cp Remarks: − You may adjust speed of the micro annular gear pump without the need to connect it to the serial interface. − In case error occurs for example due to motor overload - the green status LED on the Terminal Box S-G05 will turn red.

  • Page 29: Startup With An External 0(4)-20 Ma Current Signal

    5 System integration Operation manual mzr-2942X1-cp Make sure that the polarity of the supplied direct current is correct, otherwise electronics will be damaged. The input circuit at the analog input is layed out as a differential amplifier. If the analog input is “open” there is already a voltage of 2 V. That means in this case that the motor would be turning at a speed of about 2000 rpm.
  • Page 30 5 System integration Operation manual mzr-2942X1-cp serial alternative interface power supply of PC 24 V DC RS-232 Power In RS-232 Power In 24 VDC 24 VDC Term inal Box S-G05 Term inal Box S-G05 HNP M ikrosystem e Gm bH...

  • Page 31: Startup With External Potentiometer

    5 System integration Operation manual mzr-2942X1-cp 5.5.4 Startup with external potentiometer 1. Connect the drive with the eight colored wires to the terminal box S-G05. The colors of the corresponding wire connections are described in the table 7. 2. Bring the internal potentiometer knob to the null position by turning it clockwise to the limit stop.

  • Page 32: Startup With The Rs-232 Interface

    5 System integration Operation manual mzr-2942X1-cp The input circuit at the analog input is layed out as a differential amplifier. If the analog input is “open” there is already a voltage of 2 V. That means in this case that the motor would be turning at a speed of about 2000 rpm. In order to set 0 rpm the input must be connected over a low ohm resistor to the analog ground (AGND) or connected to the AGND-voltage level.

  • Page 33: Startup Of The Pump Units With Network Mode (Net1 Command)

    5 System integration Operation manual mzr-2942X1-cp 5.5.6 Startup of the pump units with network mode (NET1 Command) All standard units are delivered with node number 0. In order to prepare the units for network operation, they must first be individually connected to the PC and set to the desired node address using the FAULHABER Motion Manager.
  • Page 34 5 System integration Operation manual mzr-2942X1-cp While connecting the DC voltage pay attention to the correct polarity, otherwise electronics may be damaged. 9. You may now install the delivered software as described in the chapter 7 respectively chapter 8. Remarks: Controller which the manufacturer specifically shipped for the network −...

  • Page 35: Start Up / Shut Down

    Depending on the application for example water, or isopropanol may be used. If you have doubts whether a liquid is suitable for this function or not, please ask the manufacturer of the liquid or HNP Mikrosysteme. Last update: May 2025...
  • Page 36 6 Start Up / Shut Down Operation manual mzr-2942X1-cp Flushing cycle Selection of flushing liquid (FL) Right flushing see table 9 (Selection of the flushing liquid) liquid Is the see table 10 (Resistance of the sealing materials) pump resistant? see table 9 (Selection of the flushing liquid)
  • Page 37 6 Start Up / Shut Down Operation manual mzr-2942X1-cp Nature of the handled liquid Flushing cycle Suitable flushing liquid [min] Oils, fats, plastifiers 15-20 isopropanol, ethanol, acetone, benzine Solvents (polar + nonpolar) 5-10 isopropanol, ethanol Other organic liquids 10-15 isopropanol , ethanol...

  • Page 38: Shutdown Of The Micro Annular Gear Pump

    6 Start Up / Shut Down Operation manual mzr-2942X1-cp Shutdown of the micro annular gear pump During the shutdown of the pump the following steps should be followed − Flush the pump with a filtered and particle-free flushing liquid (solvent) (see chapter 6.3)
  • Page 39 6 Start Up / Shut Down Operation manual mzr-2942X1-cp End of test/operation Flushing cycle Drain the pump Selection of flushing liquid (FL) Pump Right requires see table 10 flushing flushing? liquid Flushing cycle Is the see table 11 pump Delivery of...

  • Page 40: Conservation

    6 Start Up / Shut Down Operation manual mzr-2942X1-cp 6.4.1 Conservation If the micro annular gear pump operates at irregular intervals or for other reasons should be put out of operation for a longer period, it should, after service and flushing procedure (see chapter 6.3), be filled in with a suitable conservation liquid.

  • Page 41: Dismantling Of The System

    6 Start Up / Shut Down Operation manual mzr-2942X1-cp Liquids isopropanol solvent for organic compounds, cosmetics, essential oils, waxes and esters, antifreezers, antiseptic agents acetone solvent for a number of organic compounds, unlimited solubility in water, dissolves natural and synthetic resins, fats,...

  • Page 42: Trouble Shooting

    − by changing the operating direction of the pump. If these measures turn out to be ineffective, please contact the service staff of HNP Mikrosysteme (see chapter 15) and send the pump back to the manufacturer for inspection. You should under no condition try to dismantle the pump by yourself. This...

  • Page 43: Software "Mzr-Pump Control

    After a successful installation the program »mzr-pump control« can be found in the start menu under »Programs - HNP Mikrosysteme«. After the program had been initiated, data such as the pump type »mzr-2942X1-cp« should be set. The »Dosage« operating mode (see figure 20) enables to set constant volumes in units such as ml, mg or rpm as well as pauses for a fixed number of sequences or for continuous operation.
  • Page 44 7 Software »mzr-pump control« Operation manual mzr-2942X1-cp figure 20 Setup window in the »Dosage« operating mode figure 21 Setup window in the »Continuous flow« operating mode Technical data subject to change without prior notice! Last update: May 2025...

  • Page 45: Motion Manager" Software (Optional)

    8 »Motion Manager« software (optional) Operation manual mzr-2942X1-cp »Motion Manager« software (optional) The »Motion Manager« software enables operation and configuration of the drive and offers a possibility of an online graphic analysis of the operating data. The software is delivered on CD.
  • Page 46 8 »Motion Manager« software (optional) Operation manual mzr-2942X1-cp The commands are entered in the field »Enter command:«. The button »Send« will send the command to the drive for execution (see figure 22). The commands may be given alternatively in capital or lowercase letters. Excess space characters will be ignored by the drive.

  • Page 47: Programming Of The Control Unit

    8 »Motion Manager« software (optional) Operation manual mzr-2942X1-cp Programming of the control unit The S-ND control unit of the micro annular gear pump may be adapted by the user to a specific application by means of an easy programming language. The program files are available in the ASCII code and have by default the »mcl«...
  • Page 48 8 »Motion Manager« software (optional) Operation manual mzr-2942X1-cp figure 24 File selection window The mcl-file is transferred to the drive by selecting Terminal - Transfer Configuration file from the menu (see figure 25). Technical data subject to change without prior notice!
  • Page 49 8 »Motion Manager« software (optional) Operation manual mzr-2942X1-cp figure 25 Transfer of a mcl-file as a parameter data When a window appears with the enquiry if the mcl files should be transferred to the »Motion-Controller«, answer by clicking on the »Yes« button.

  • Page 50: Accessories For Microfluidic Systems

    Non-liability clause HNP Mikrosysteme GmbH shall not be liable for damages resulting from the non-respect of instructions comprised in this operating manual. It remains at the responsibility of the user to conform to all laws, rules and regulations in force.

  • Page 51: Ec Directive

    11 EC Directive Operation manual mzr-2942X1-cp EC Directive A Directive or EC Directive is a legal instrument of the European Community addressing at the member states and forcing them to implement specific regulations or targets. Leastwise, micro annular gear pumps are covered, by the...

  • Page 52: Electromagnetic Compatibility (Emc)

    HNP Mikrosysteme GmbH | Brunnenstraße 38 | D-19053 Schwerin, Germany. Please inform us in advance via the e-mail address service@hnp- mikrosysteme.de. HNP Mikrosysteme GmbH will then ensure that they are disposed of in an environmentally friendly and legally compliant manner. REACH regulation (EC) No. 1907/2006 HNP Mikrosysteme is not a manufacturer or importer of chemical substances subjected to registration, but in terms of regulation, a downstream user.

  • Page 53: Emc Directive And Standards

    11 EC Directive Operation manual mzr-2942X1-cp 11.1.1 EMC Directive and Standards Comformity was proven by proof of compliance with the following harmonized standards by the company Dr. Fritz Faulhaber: − EN 61000-6-4 (10/01): Generic standards – Emission standard for industrial environments −...

  • Page 54: Declaration Of Conformity

    12 Declaration of conformity Operation manual mzr-2942X1-cp Declaration of conformity The delivered micro annular gear pump falls within scope of the following EC directives: − Machinery Directive (2006/42/EU) − EMC Directive (2014/30/EU) You may request the declarations of conformity for the micro annular gear pumps from us separately.
  • Page 55 This statement does not warrant any characteristics in terms of product liability. Please note the safety instructions in the manual. Mr. Lutz Nowotka, HNP Mikrosysteme GmbH, Bleicherufer 25, D-19053 Schwerin is authorised to compile the technical file according to Annex VII A.
  • Page 57 (following EMC Directive 2014/30/EU) We hereby declare that the following micro annular gear pumps of the high performance series: mzr-2942X1-cp are intended for installation into another machinery/plant and that start of operation is forbidden till it is identified that the machinery/plant into which these micro annular gear pumps shall be installed corresponds to the regulations of the EC guidelines regarding safety and health requirements.

  • Page 59: Problems And Their Removal

    13 Problems and their removal Operating manual mzr-2942X1-cp Problems and their removal Disturbance Cause Solution 1 The pump does not start operation. No power supply Check the power supply. 2 The pump does not deliver any No liquid in the primary tank.
  • Page 60 13 Problems and their removal Operating manual mzr-2942X1-cp Disturbance Cause Solution Flush the pump with a syringe. Return the pump to the manufacturer for cleansing. Use a filter, flush the liquid delivery system. The non-return valve does not open. Rinse the non-return valve.
  • Page 61 If a disturbance that has not been mentioned in the above list, or that makes the use of the micro annular gear pump unsafe appears, please stop the operation of the pump without delay and contact HNP Mikrosysteme (see chapter 15). If needed return the pump to the manufacturer for checkup.

  • Page 62: Maintenance And Warranty

    For service and maintenance please return your micro annular gear pump to HNP Mikrosysteme. You will find the address on the cover of the present operating manual. You should under no condition try to dismantle the pump by yourself. This...

  • Page 63: Maintenance/Repair

    (see chapter 6.3) also slows down the wearout process of the pump. Sealing elements, rotors and shaft are parts that undergo wear and will be replaced by HNP Mikrosysteme GmbH during maintenance depending on their degree of wear. If the pump head is dismantled during maintenance work, all seals and O-rings must be replaced on reassembly, as otherwise absolute leakage protection cannot be guaranteed.

  • Page 64: Technical Customer Support

    15 Technical customer support Operating manual mzr-2942X1-cp Technical customer support Do you have any questions about installing or operating your pump? Contact for Technical Sales Phone +49| (0) 385|52190-300 E-Mail sales@hnp-mikrosysteme.de https://www.hnp-mikrosysteme.de/en/contact/technical-sales/ Contact for Technical Service Phone +49| (0) 385|52190-325 E-Mail service@hnp-mikrosysteme.de...

  • Page 65: Legal Information

    16 Legal information Operating manual mzr-2942X1-cp Legal information Marks is a registered German trademark of HNP Mikrosysteme GmbH. ® MoDoS is a registered German trademark of HNP Mikrosysteme GmbH. ® µ-Clamp ® is a registered German trademark of HNP Mikrosysteme GmbH.

  • Page 66: Safety Information For The Return Of Already Employed Micro Annular Gear Pumps And Components

    17 Safety information for the return of already employed micro annular gear pumps and components Operating manual mzr-2942X1-cp Safety information for the return of already employed micro annular gear pumps and components 17.1 General information The operator carries the responsibility for health and safety of his/her employees.
  • Page 67 18 Declaration of media in contact with the micro annular gear pump and its components Operating manual mzr-2942X1-cp Declaration of media in contact with the micro annular gear pump and its components Type of the device Pump type/article no.: Serial number:...
  • Page 68 19 Appendix Operating manual mzr-2942X1-cp Appendix − Layouts Technical data subject to change without prior notice! Last update: May 2025...
  • Page 69 19 Appendix Operating manual mzr-2942X1-cp figure 27 mzr-2942X1-cp manifold assembly M2.1 Last update: May 2025 Technical data subject to change without prior notice!
  • Page 70 19 Appendix Operating manual mzr-2942X1-cp Figure 28 Installation space mzr-2942X1-cp Technical data subject to change without prior notice! Last update: May 2025...
