HNP Mikrosysteme mzr-2521 Operating Manual

Micro annular gear pumps
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

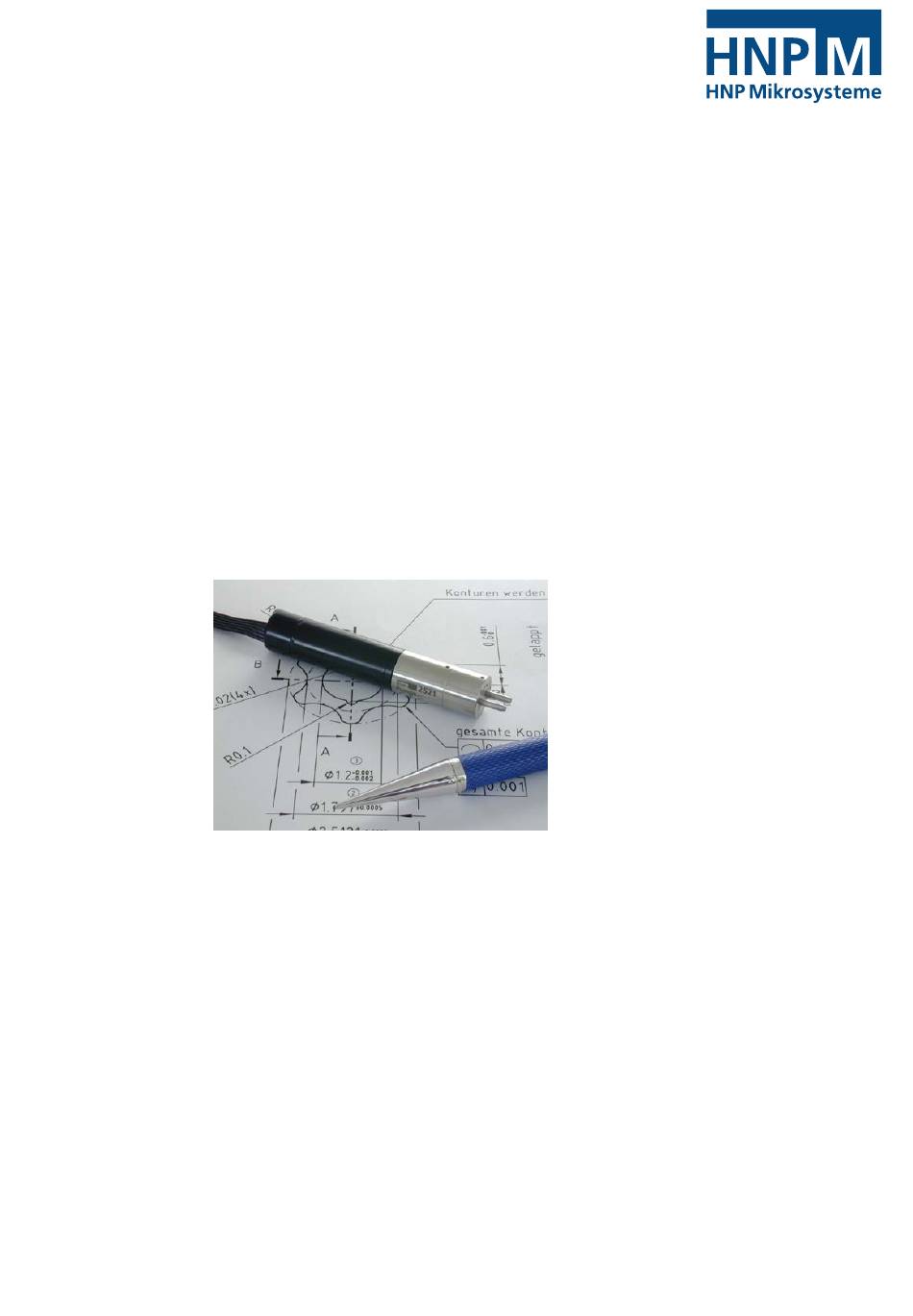

Operating manual for micro annular gear pumps
mzr-2521 and mzr-2921
HNP Mikrosysteme GmbH
Bleicherufer 25
D-19053 Schwerin
Phone: 0385/52190-301
Fax:
E-mail: info@hnp-mikrosysteme.de
http://www.hnp-mikrosysteme.de
Last update: June 2019
0385/52190-333
