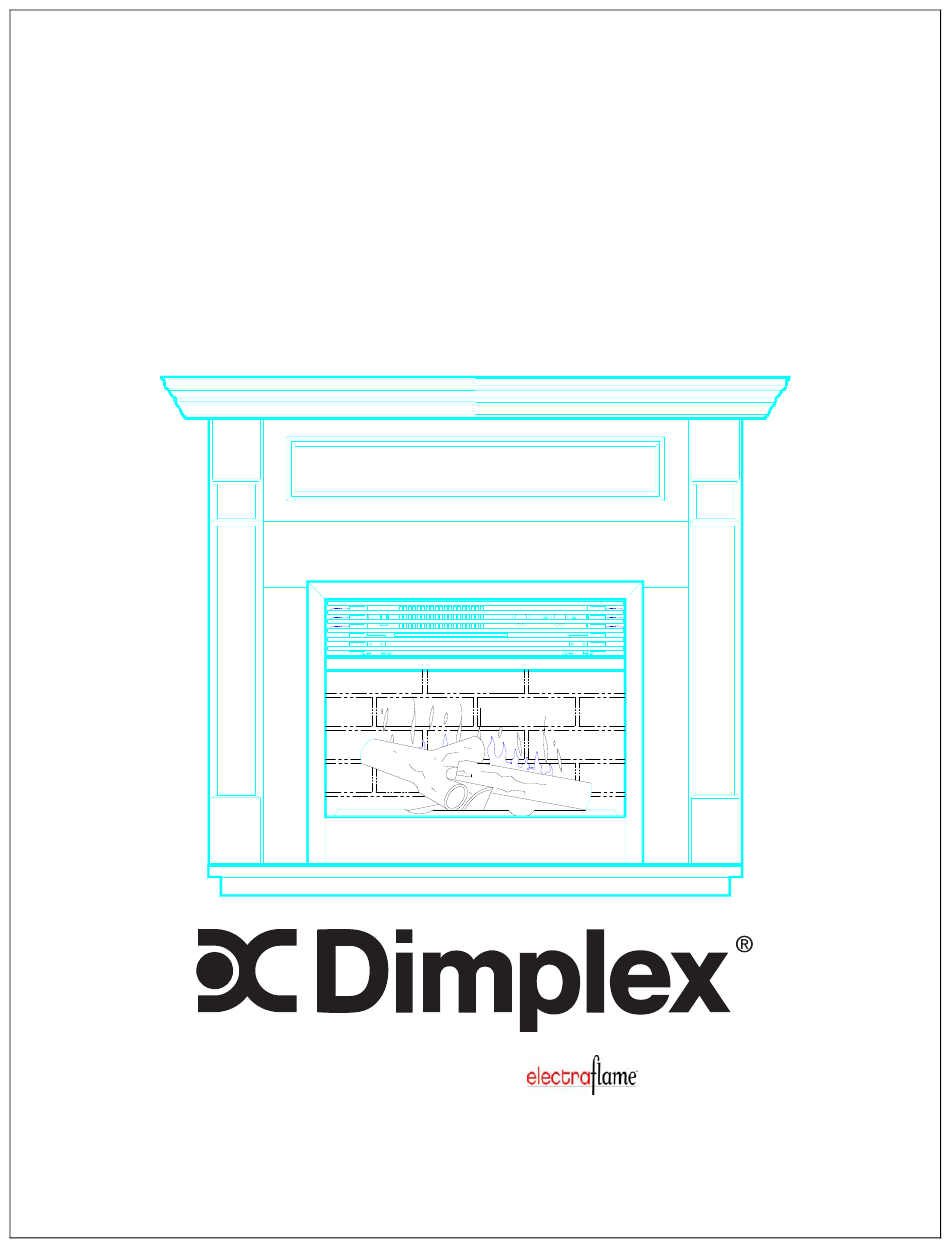

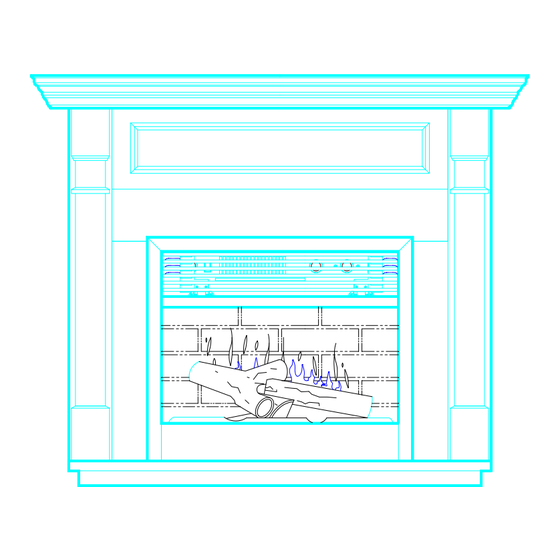

- Page 1 MODEL EF2602 PARTS & SERVICE MANUAL Formally Sold under 7400450100R00...
-
Page 2: Table Of Contents
Table of Contents OPERATION ......................3 WIRING DIAGRAM ....................6 REPLACEMENT PARTS ..................6 TO REPLACE UPPER LIGHT BULBS ..............7 TO REPLACE LOWER LIGHT BULBS ..............8 TO REPLACE MAIN ON/OFF SWITCH ..............9 TO REPLACE LIGHT DIMMER SWITCH ............10 TO REPLACE FLAME SPEED CONTROL ............ -
Page 3: Operation
ELECTRAFLAME ELECTRIC FIREPLACE OPERATION This section will explain the function of each convenient control. To access the controls, open the upper grill by pulling near the top, forward and down. A. MAIN ON/OFF SWITCH The on/off switch supplies power to all fireplace functions (heater & flame). B. -
Page 4: Optional Remote Control Usage
ELECTRAFLAME ELECTRIC FIREPLACE OPTIONAL REMOTE CONTROL USAGE 1. Plug the unit into the outlet located on the side of the receiver. 2. Plug the receiver into the wall outlet. 3. Install a 9 volt battery into the transmitter. 4. Turn the unit main power switch to the on position prior to using the remote control. - Page 5 ELECTRAFLAME ELECTRIC FIREPLACE...
-
Page 6: Wiring Diagram
WIRING DIAGRAM REPLACEMENT PARTS EF SERIES FIREPLACES ELECTRAFLAME CATALOGUE NO. EF2602 PART NO. 6900241059 REPLACEMENT PART REPLACEMENT PART NO. 1. GLASS 6900100400RP 2. GRILL 6900080159RP 3. LOG SET 0437960100RP 4. MIRROR 5900060300RP 5. POWER ON/OFF SWITCH 2800070200RP 6. LIGHT DIMMER KNOB 8800000800RP 7. -
Page 7: To Replace Upper Light Bulbs
ELECTRAFLAME ELECTRIC FIREPLACE If unit was operating prior to servicing allow at least 10 minutes for light bulbs and heating element to cool off to avoid accidental burning of skin. Disconnect power before attempting any maintenance or cleaning to reduce the risk of electric shock or damage to persons. -
Page 8: To Replace Lower Light Bulbs
ELECTRAFLAME ELECTRIC FIREPLACE If unit was operating prior to servicing allow at least 10 minutes for light bulbs and heating element to cool off to avoid accidental burning of skin. Disconnect power before attempting any maintenance or cleaning to reduce the risk of electric shock or damage to persons. -
Page 9: To Replace Main On/Off Switch
ELECTRAFLAME ELECTRIC FIREPLACE If the fireplace was operating prior to servicing allow at least 10 minutes for light bulbs and heating element to cool off to avoid accidental burning of skin. Disconnect power before attempting any maintenance or cleaning to reduce the risk of electric shock or damage to persons. -
Page 10: To Replace Light Dimmer Switch
ELECTRAFLAME ELECTRIC FIREPLACE If the fireplace was operating prior to servicing allow at least 10 minutes for light bulbs and heating element to cool off to avoid accidental burning of skin. Disconnect power before attempting any maintenance or cleaning to reduce the risk of electric shock or damage to persons. -
Page 11: To Replace Flame Speed Control
ELECTRAFLAME ELECTRIC FIREPLACE If the fireplace was operating prior to servicing allow at least 10 minutes for light bulbs and heating element to cool off to avoid accidental burning of skin. Disconnect power before attempting any maintenance or cleaning to reduce the risk of electric shock or damage to persons. -
Page 12: To Replace Flame Motor/Flame Rod
ELECTRAFLAME ELECTRIC FIREPLACE If the fireplace was operating prior to servicing allow at least 10 minutes for light bulbs and heating element to cool off to avoid accidental burning of skin. Disconnect power before attempting any maintenance or cleaning to reduce the risk of electric shock or damage to persons. -
Page 13: To Replace Flame Motor/Flame Rod
ELECTRAFLAME ELECTRIC FIREPLACE TO REPLACE FLAME MOTOR/FLAME ROD NOTE: Removal of the glass eases the installation of the bottom cover. 12. Remove the mounting screw in the center of the glass and remove the retainer bracket. 13. Remove the glass by lifting up from the bottom. 14. -
Page 14: To Replace Heater On/Off Switch
ELECTRAFLAME ELECTRIC FIREPLACE If the fireplace was operating prior to servicing allow at least 10 minutes for light bulbs and heating element to cool off to avoid accidental burning of skin. Disconnect power before attempting any maintenance or cleaning to reduce the risk of electric shock or damage to persons. -
Page 15: To Replace Heater Thermostat Control
ELECTRAFLAME ELECTRIC FIREPLACE If the fireplace was operating prior to servicing allow at least 10 minutes for light bulbs and heating element to cool off to avoid accidental burning of skin. Disconnect power before attempting any maintenance or cleaning to reduce the risk of electric shock or damage to persons. -
Page 16: To Replace Heater Assembly
ELECTRAFLAME ELECTRIC FIREPLACE If the fireplace was operating prior to servicing allow at least 10 minutes for light bulbs and heating element to cool off to avoid accidental burning of skin. Disconnect power before attempting any maintenance or cleaning to reduce the risk of electric shock or damage to persons. -
Page 17: To Replace The Power Cord
ELECTRAFLAME ELECTRIC FIREPLACE If the fireplace was operating prior to servicing allow at least 10 minutes for light bulbs and heating element to cool off to avoid accidental burning of skin. Disconnect power before attempting any maintenance or cleaning to reduce the risk of electric shock or damage to persons. -
Page 18: Trouble Shooting Guide
ELECTRAFLAME ELECTRIC FIREPLACE TROUBLE SHOOTING GUIDE APPEARANCE Problem Flame frozen. Probable Cause Loose wiring or defective flame motor. Solution Check all wiring for loose connections, repair/replace as necessary. If wiring connections are suitable, replace flame motor. Service Manual Reference Page 12 Problem Flame not bright, flame not visible. - Page 19 ELECTRAFLAME ELECTRIC FIREPLACE TROUBLE SHOOTING GUIDE APPEARANCE Problem Fireplace does not turn on. Probable Cause Defective main power on/off switch or loose wiring. Solution Check all wiring for loose wiring connections, repair/replace as necessary. If all wiring connections are suitable check the main on/off switch for proper operation.
-
Page 20: Heater Assembly
ELECTRAFLAME ELECTRIC FIREPLACE TROUBLE SHOOTING GUIDE HEATER ASSEMBLY Problem Heating element is glowing red. Probable Cause Normal operation or defective heating assembly. Solution Small glowing sections of the element are considered normal. If larger glowing sections are causing the heater to trip the thermal cut out, unplug, discontinue use and replace the heater assembly. - Page 21 ELECTRAFLAME ELECTRIC FIREPLACE TROUBLE SHOOTING GUIDE HEATER ASSEMBLY Problem Heater is not turning off. Probable Cause Defective switch or loose wiring or defective heater assembly. Solution Check all wiring for loose wiring connections, repair/replace as necessary. If all wiring connections are suitable check heater on/off switch &...
- Page 22 ELECTRAFLAME ELECTRIC FIREPLACE TROUBLE SHOOTING GUIDE NOISE Problem Excessive noise with the heater on. Probable Cause Excessively dirty blower or defective heater assembly. Solution Remove the top cover and clean the dust out of the blower, if noise persists replace heater assembly or see below.
- Page 23 ELECTRAFLAME ELECTRIC FIREPLACE TROUBLE SHOOTING GUIDE GENERAL Problem Circuit breaker trips or fuse blows when the unit is turned on. Probable Cause Improper circuit current rating. Solution Additional appliances may exceed the current rating of the circuit breaker or fuse. Plug the unit into another outlet or install on a dedicated circuit with a 15 amp rating.
- Page 24 1367 Industrial Road Cambridge ON Canada N1R 7G8 1-888-346-7539 www.dimplex.com In keeping with our policy of continuous product improvement, we reserve the right to make changes without notice. © 2011 Dimplex North America Limited...
