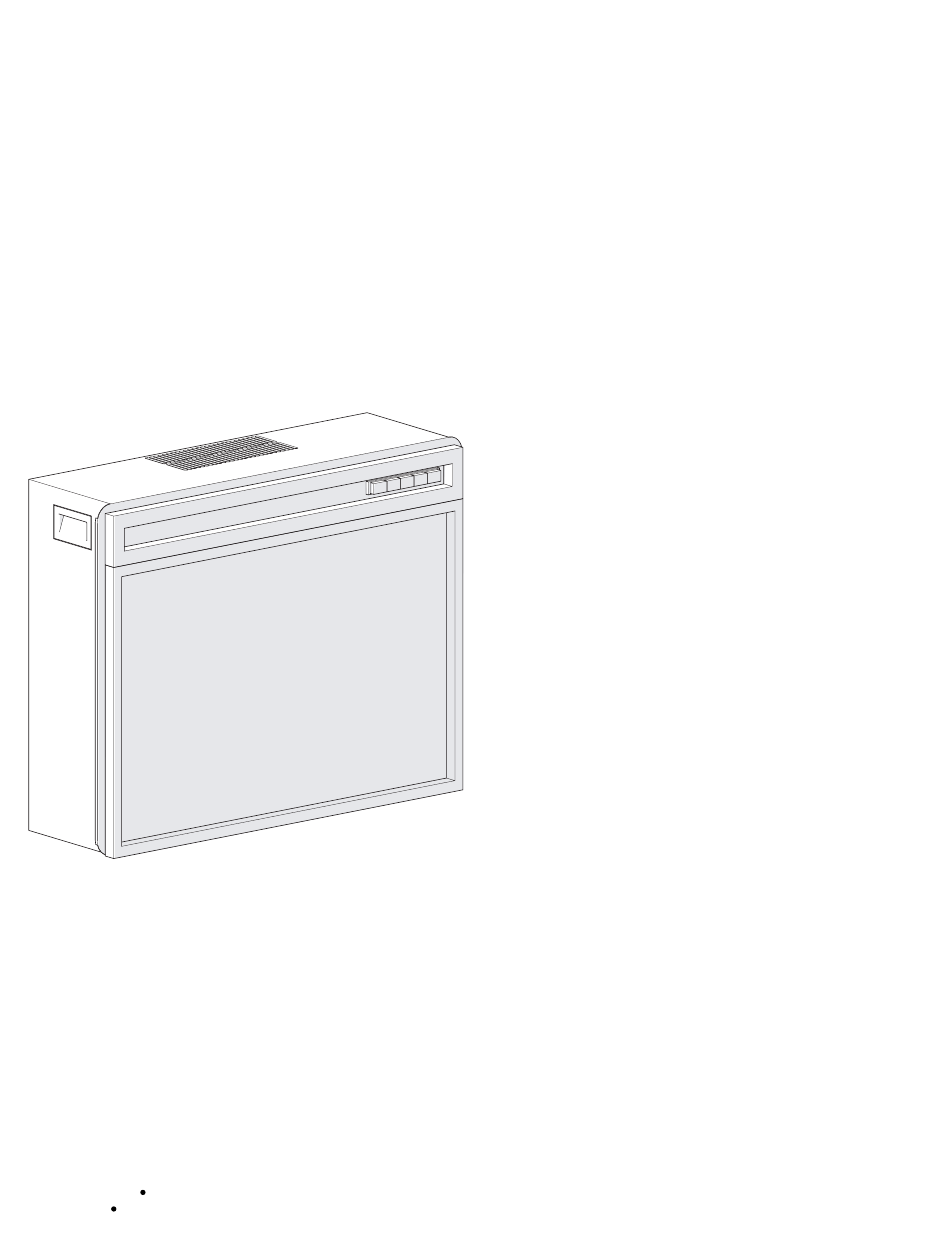

- Page 1 IMPORTANT SAFETY INFORMATION: Always read this manual first before attempting to service this fireplace. For your safety, always comply with all warnings and safety instructions contained in this manual to prevent personal injury or prop- erty damage.
-
Page 2: Table Of Contents
EF2870 COMPONENT PICTURES . . . . . . . . . . . . . . . . . . . -
Page 3: Operation
OPERATION To disable: Press and holding the button on the unit for 5 seconds will disable the heater, indicated by the temperature dis- play flashing. Figure 1 To enable: With the temperature displayed (it will be flashing), press and hold the button on the unit for 5 seconds to reacti- vate the heating controls. - Page 4 play flashing. To enable: Figure 3 With the temperature displayed (it will be flashing), press and hold the button on the unit for 5 seconds to reacti- vate the heating controls. Sleep Timer This icon will light up with a blue light when using the Timed Shut-OFF function.
-
Page 5: Exploded Parts Diagram - Ef2870
EXPLODED PARTS DIAGRAM - EF2870 REPLACEMENT PARTS - 1. Flicker Motor ....9. Ember LED's .... -
Page 6: Exploded Parts Diagram - Ef2570
EXPLODED PARTS DIAGRAM - REPLACEMENT PARTS - 1. Flicker Motor ....10. Cord Set ..... . . 2. -
Page 7: Wiring Diagram - Ef2870
WIRING DIAGRAM - THERMISTOR MOTOR REMOTE SWITCHBOARD DISPLAY WIRING DIAGRAM - THERMISTOR MOTOR REMOTE SWITCHBOARD DISPLAY FLAMES... -
Page 8: Flicker Motor Replacement
2. From the back of the unit remove the screws (16 on the WARNING: Disconnect circuit power before attempt- EF2870 and 12 on the EF2570) that secure the back ing any maintenance or cleaning to reduce the risk of panel to the firebox. -
Page 9: Thermistor Replacement
5. Disconnect the wiring connections, at the control board, and install the new heater assembly. 2. From the back of the unit remove the screws (16 on the EF2870 and 12 on the EF2570) that secure the back 6. Reattach the wiring and reassemble. panel to the firebox. -
Page 10: Ef2570 Component Pictures
COMPONENT PICTURES Front view of unit Heater Assembly, Control board & IR Sensor Flicker Motor, Terminal Block, Flicker Rod Flame LED Assembly and Cord Set Connection Display Board (with cover and without) Control Board... -
Page 11: Ef2870 Component Pictures
EF2870 COMPONENT PICTURES Front view of unit Heater Assembly and Control board Flicker Motor, Terminal Block and Flicker Rod Flame LED Assembly Display Board (with cover and without) Control Board and Switch Board Thermistor... -
Page 12: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM CAUSE SOLUTION PART NUMBER General Circuit breaker trips or fuse Short in unit wiring. Trace wiring in unit. blows when unit is turned Improper circuit current rating Additional appliances may exceed the current rating of the circuit breaker or fuse. Plug unit into another outlet or install unit on a dedi- cated 15 amp circuit. - Page 13 PROBLEM CAUSE SOLUTION 28” - 9601130800RP Heater Heater is not turning off Improper operation Refer to Operation Section Defective switchboard Replace switchboard Defective thermistor Replace thermistor Defective control board Replace the control board Heater is not turning on, but Improper operation Refer to Operation Section flame effect is still function- Unit requires resetting...
