Eloma Joker B Operation Manual

Combi-steamer
Hide thumbs Also See for Joker B:
Table of Contents

Advertisement

Quick Links

Combi-Steamer
Joker B
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Joker B and is the answer not in the manual?

Questions and answers

Related Manuals for Eloma Joker B

Summary of Contents for Eloma Joker B

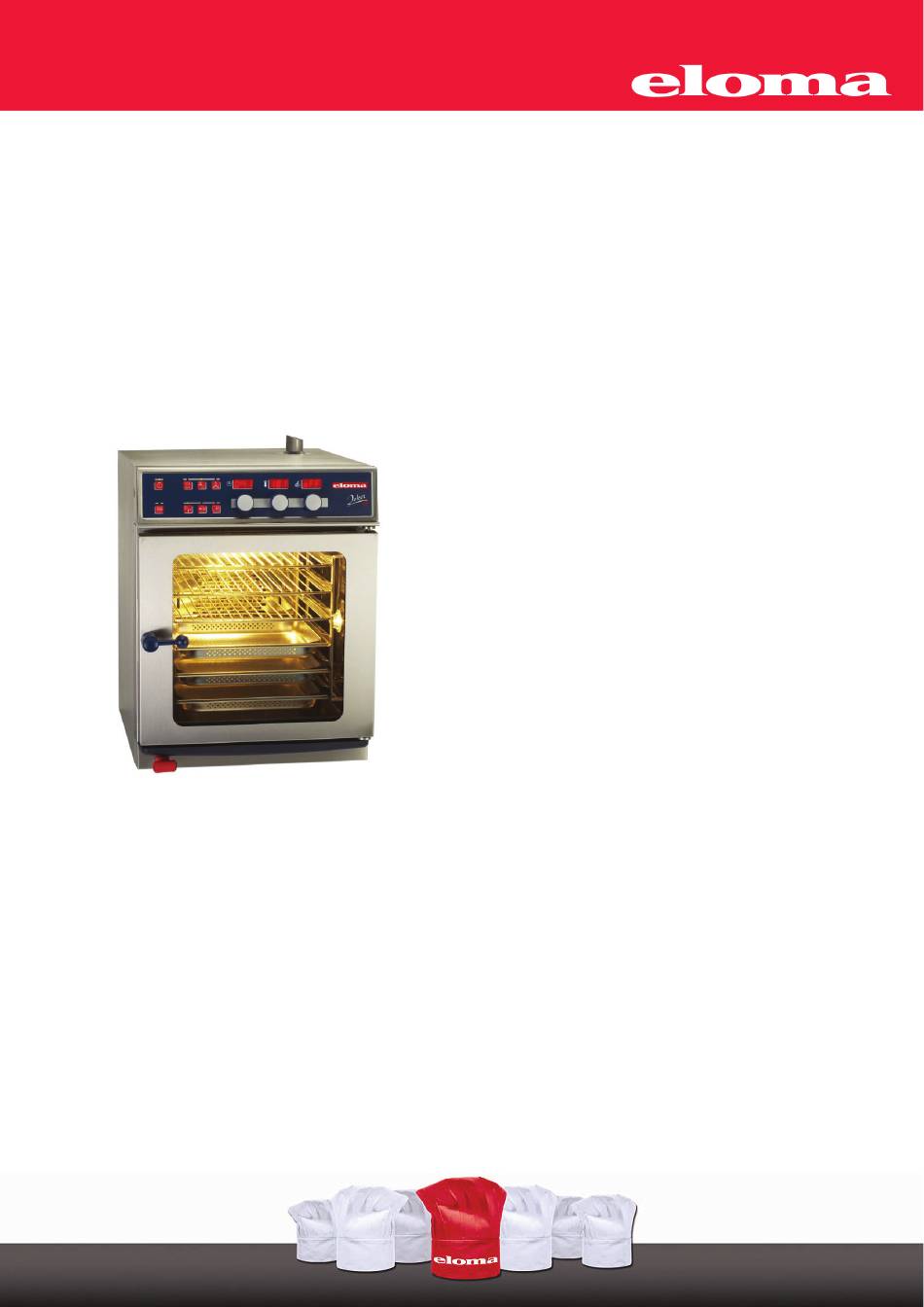

  • Page 1 Combi-Steamer Joker B Operation Manual...
  • Page 3 You have chosen an Eloma combi-steamer. Thank you for your confidence. This operation manual is for the combi steamer model Joker B. Please read the installation and operating instructions in full before starting up the appliance and make sure to pay particular attention to the safety information.

  • Page 4: Table Of Contents

    Table of contents Safety information ........................4 Control panel and functional description ..................7 Control panel Joker B ....................7 Functional description of operating elements ............. 7 Selecting / changing the multifunction key assignment ..........9 Starting the Combi Steamer ....................... 10 Input of operating data and start with only one cooking mode ........
  • Page 5 Pictograms/symbols used Warning Caution Danger! Indicates a situation presenting an Indicates a potentially dangerous Indicates a potentially dangerous immediate danger, which, if situation, which, if situation, which, if if not avoided, will result in not avoided, could result in not avoided, could result in minor or serious injury or death.

  • Page 6: Safety Information

    Eloma combi steamers are designed for use in commercial environments. Method of operation Combi-steamer Joker B works with steam, combi-steam (combining the two media hot air and steam) or convection (hot circulating air) depending on the cooking mode selected with steam.
  • Page 7 The door must not be opened whilst Autoclean is running (risk of chemical burns). Only use Eloma Multi-Clean special cleaning agents and Eloma Multi-Clean rinse agents. Eloma GmbH accepts no liability for damage caused by using non-Eloma cleaning agents or rinse agents; use of such agents will also invalidate any warranty claims.
  • Page 8 Remove the sensor from the food before taking the batch out. Condensation hood (option) An optional condensation hood is available for Eloma combi steamers. The condensation hood is controlled fully automatically via the combi steamer. During the cooking process, steam is condensed as it passes over air-cooled plate condensers.

  • Page 9: Control Panel And Functional Description

    Control panel and functional description Control panel Joker B ON/OFF Display time Display temperature Steaming Combi-cooking Convection Display core temperature Start/Stop Man. Steaming / M-Key Knobs ® PreHeat/Cool down Clima Aktiv Functional description of operating elements ON/OFF Press key, JOKER now ready for work, key is lit oven chamber illuminated, Displays indicate: LED cooking mode "steaming"...
  • Page 10 “Manual steaming”/ “Active Temp” As long as the key is pressed, water evaporates in the cooking compartment. Selection possible in the modes Combi steaming, Convection, and LT Cooking. With the Active Temp function, the cooking compartment of the combi-steamer is brought to a preselected set point temperature. If the cooking compartment temperature is below the set point value, the heating is switched on.

  • Page 11: Selecting / Changing The Multifunction Key Assignment

    Display + Rotary knob TIMER (digital display, 3 characters) Turn rotary knob to set the cooking time of the selected cooking mode from 0:00 minutes to 24.0 hours. Turn left for * ---* continuous operation. Display up to 10 hours in minutes 10.0), from 10.1 (10 hours 10 min.) in 10-minute intervals.

  • Page 12: Starting The Combi Steamer

    Starting the Combi Steamer Prior to start : Open water tap! In case the ambient temperature is lower than + 5° C / +41°F, the oven must be warmed to room temperature. Press ON/OFF, key is lit, oven chamber illuminated, the oven is ready for work. Program display indicates c1, basic setting is steaming, temperature display indicates 99°...

  • Page 13: Combitronic ® Combination Of Different Cooking Modes

    Program end the Joker switches off automatically. An acoustic signal sounds for 30 seconds, to stop it immediately, press Start/Stop Memory The last program entered is again displayed and can be repeated just by restarting. How to change data in program flow: Press touch key of corresponding cooking mode and change data: Use rotary knobs to change time, temperature or core temperature.

  • Page 14: Core Temperature Control

    Core temperature control Core temperature control can be used with all cooking modes. However, make sure to enter always higher core temperatures in following steps, since the oven switches automatically off, once the highest core temperature is reached. Function: Delay start programming This function allows to have an entered or stored program or a combination automatically started within a period of up to 24 hours.

  • Page 15: Preheat - Cool Down Active Temp

    Preheat / Cool Down Active Temp additional function “ Active Temp” can be used for each cooking program. The Preheat function is used to bring the cooking compartment of the combi-steamer to a preselected temperature. If the compartment temperature is below the set value, the heating is switched on. If the temperature is too high for the subsequent cooking program, the unit is cooled down.

  • Page 16: Special Programs

    5. Special Programs HACCP (Option) The integrated HACCP control facilities care for recording during the cooking process for each program the exact actual data for time, temperature and core temperature. All processed cooking programs are stored, once the selected cooking time has run down or if the cooking process was terminated by pressing the Start/Stop key.

  • Page 17: Printed Protocol In ° C

    5.1.3 Printed protocol in ° C ----------------------------------------------------------------- Serial No. :100100 Unit type :Joker B Print date : 15.09.0 16:00  Total operating hours of the appliance Total operating hours : 1 CT every 3 minutes ----------------------------------------------------------------- Date : 15.09.2007 ...

  • Page 18: Cleaning And Maintenance

    Operation Prior to starting the combi-steamer Joker B equipped with Autoclean, open the water tap. A sound signal announces that either the water supply is shut or else the water pressure is too low.

  • Page 19: Manual Cleaning

    Open the door, the sound signal stops. Spray special cleaner into the oven cavity. We recommend using only Eloma’s special cleaning agent. This product was developed especially for the use in combi steamers, it was tested and approved.

  • Page 20: Hints On Operational Safety

    Other cleaning products can possibly cause irreparable rust damages in the cooking chamber, as well as damage pumps and seals. Eloma GmbH cannot assume liability for any damages resulting from the use of alternative products. This will void the Eloma warranty.
  • Page 21 Connections Refer to the dimensioned sketch for connections of cleaning and rinse agent. This label on the unit marks the position of these connections. Reiniger Klarspüler Cleaner Rinse agent Nettoyant Rince-éclat   Use the supplied clamp straps to attach the hoses of the canisters to the prepared connections of the unit.

  • Page 22: Valuable Information

    Valuable information Error Message Error Description Reaction, error remedy Doors open Close the door Probe cooking chamber 1 Operation stop! no signal Customer service call! Meat probe Warning! no signal sensor 1 Customer service call! Meat probe operation is possible!. Meat probe Warning! no signal sensor 2...

  • Page 23: Trouble Shooting

    Formation of rust in the Poor water quality Filter the water, cooking chamber follow the installation instructions Wrong cleaning agent Use the Eloma product Remains of cleaning agent Wash the interior thoroughly and in the cooking chamber regularly. There are iron chips in the...

  • Page 24: Unit Parameters

    Unit parameters Adjustment of operational parameters All operational parameters are correctly set when the combi steamer is delivered. However, if it is necessary to change time and date (summer/winter time, incorrect setting) proceed as follows : The unit must be switched on but with no program Set the time to 1:23 and press the key “Manual humidification“...

  • Page 25: Cleaning And Maintenance

    10. Cleaning and maintenance Regular cleaning of the combi steamer is of utmost importance. Only Eloma recommended cleaner agents may be used. Please observe the manufacturer's operating instructions. Caring for the door sealing A door sealing is subject to wear.
  • Page 26 Cleaning the cooking chamber behind the air conducting sheet : Autoclean nozzle Clean weekly respectively according to Fastening contamination. screw Switch off the appliance and allow to cool down. conducting Remove the grease/fat filter. sheet Remove the hang-in racks Fat filter Remove the fixing screws of the air conducting sheet.
  • Page 28 Notes:...
  • Page 29 Notes:...
  • Page 30 Notes:...
  • Page 32 Englisch Art. Nr.: bed_ ELO 501277_jb_ 05 _en...
