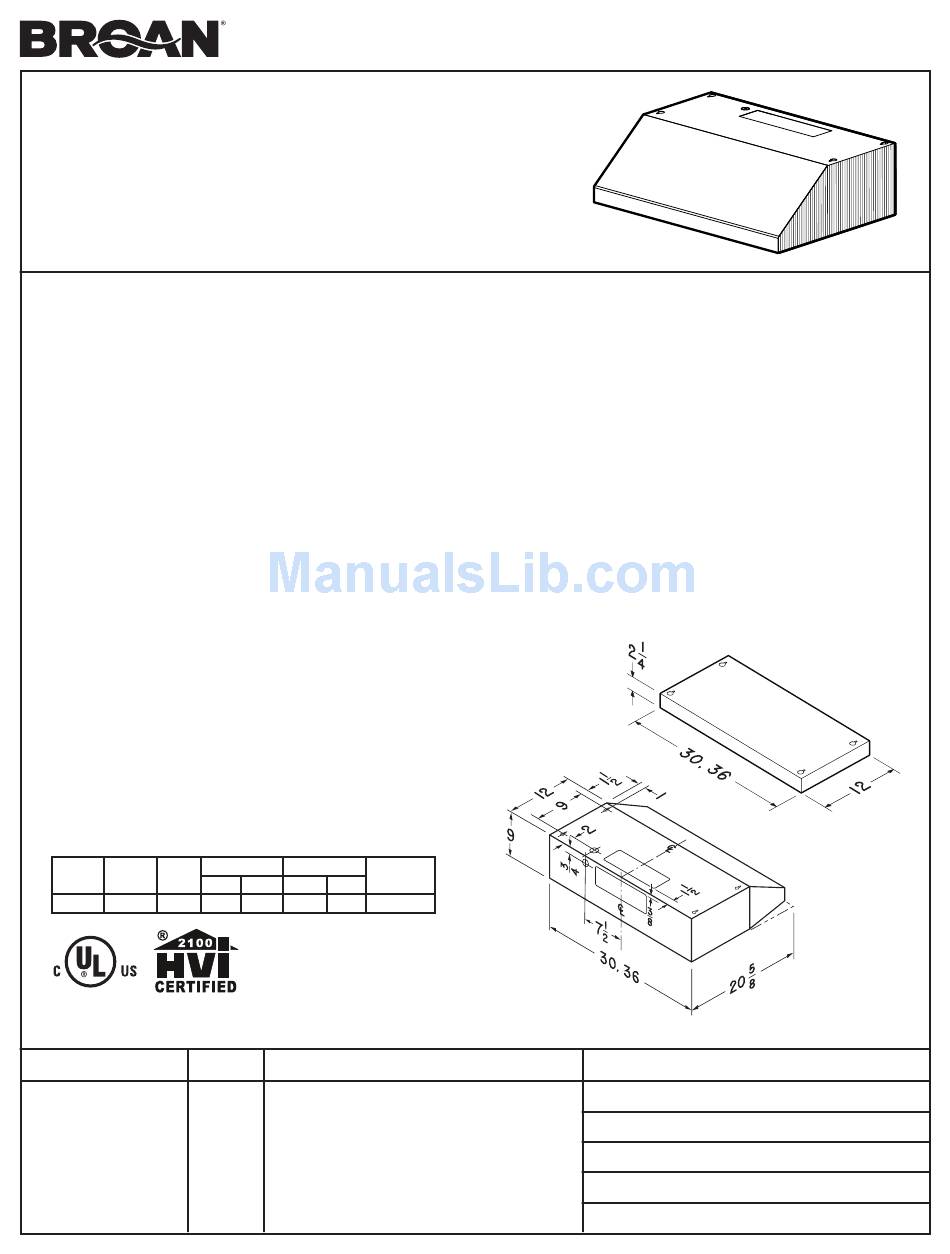

NuTone AP130 Specification Sheet

MODEL AP1 SERIES
PRO-STYLE

RANGE HOOD

Designed to meet the performance needs of
today's conventional cooking appliances.
FEATURES
•
Infinite speed rotary control with solid state blower
memory and separate on/off switch
•
Two-position light switch for "bright" or "night-light"
illumination
•
Dual halogen lamps with stainless steel trim rings
(50W GU10 - MR16 lamps, purchase separately)
•
High efficiency dual centrifugal blower with resilient
anti-vibration motor mounts
•
Broan Heat Sentry - automatically turns blower to
TM
high speed when excess cooking heat is detected
•
Two washable, micromesh aluminum grease filters with
Microban coating that inhibits the formation of odor-
®
producing bateria and protects filter from discoloration
•
Hemmed bottom for safety and good looks
•
Damper/duct connector included
•
Professional styling in Stainless Steel, Black and White
•
Available in 30" and 36" widths
•
Non-Ducted Recirculation Kit - NDK358 Series
- Order to match color and size of hood
•
Replacement filters (package of 2):
- Grease with Microban - 97017456 (BPAPFA)
- Grease without Microban - 97017455 (BPRPFA)
- Non-Ducted - 97007662 (88F)
SPECIFICATIONS
SONES
VOLTS AMPS RPM VER. HOR.
120 7.0 1625 7.0
Broan-NuTone LLC, 926 West State Street, Hartford, WI 53027 (1-800-637-1453)
REFERENCE QTY.
CFM
VER. HOR. DUCT
7.0 440 440 3¼" x10"
HVI-2100 ceRTIfIed RaTIngs comply with
new testing technologies and procedures
prescribed by the Home Ventilating Institute, for
off-the-shelf products, as they are available to
consumers. Product performance is rated at 0.1
in. static pressure, based on tests conducted in
aMca's state-of-the-art test laboratory. sones
are a measure of humanly-perceived loudness,
based on laboratory measurements.
REMARKS
SPECIFICATION SHEET
TYPICAL SPECIFICATION
Range hood shall be Broan AP1 Series.
Unit shall have a backdraft damper and be ducted
vertically (horizontally) to the outside.
Unit shall have washable micromesh aluminum filters with
special Microban coating.
®
Unit shall have a permanently lubricated, dual centrifugal
blower resiliently mounted and controlled with an infinite
speed, solid state control. RPM not to exceed 1625.
Hood shall have an infinite speed rotary control with
memory and a separate, two-position light switch. Sides
shall be straight and bottom hemmed - with no sharp
edges. Stainless steel shall be 24-gauge, 430 series.
Air delivery shall be no less than 440 cfm and sound levels
no greater than 7.0 Sones. All air and sound ratings shall
be certified by HVI.
Unit shall be U.L. and cU.L. listed.
NDK358 SERIES
NON-DUCT
RECIRCULATION
KIT
Project
Location
Architect
Engineer
Contractor
Submitted by
AP1 SERIES
PRO-STYLE
RANGE HOOD
Date
70E 99043998A
