NuTone Best AEWPD Quick Start Manual

AEWPD Telescopic Flue Cover for use with WPD38I and WPD39M
Series Outdoor Range Hood.
Model Length
AEWPD3054SB
AEWPD3054SBE

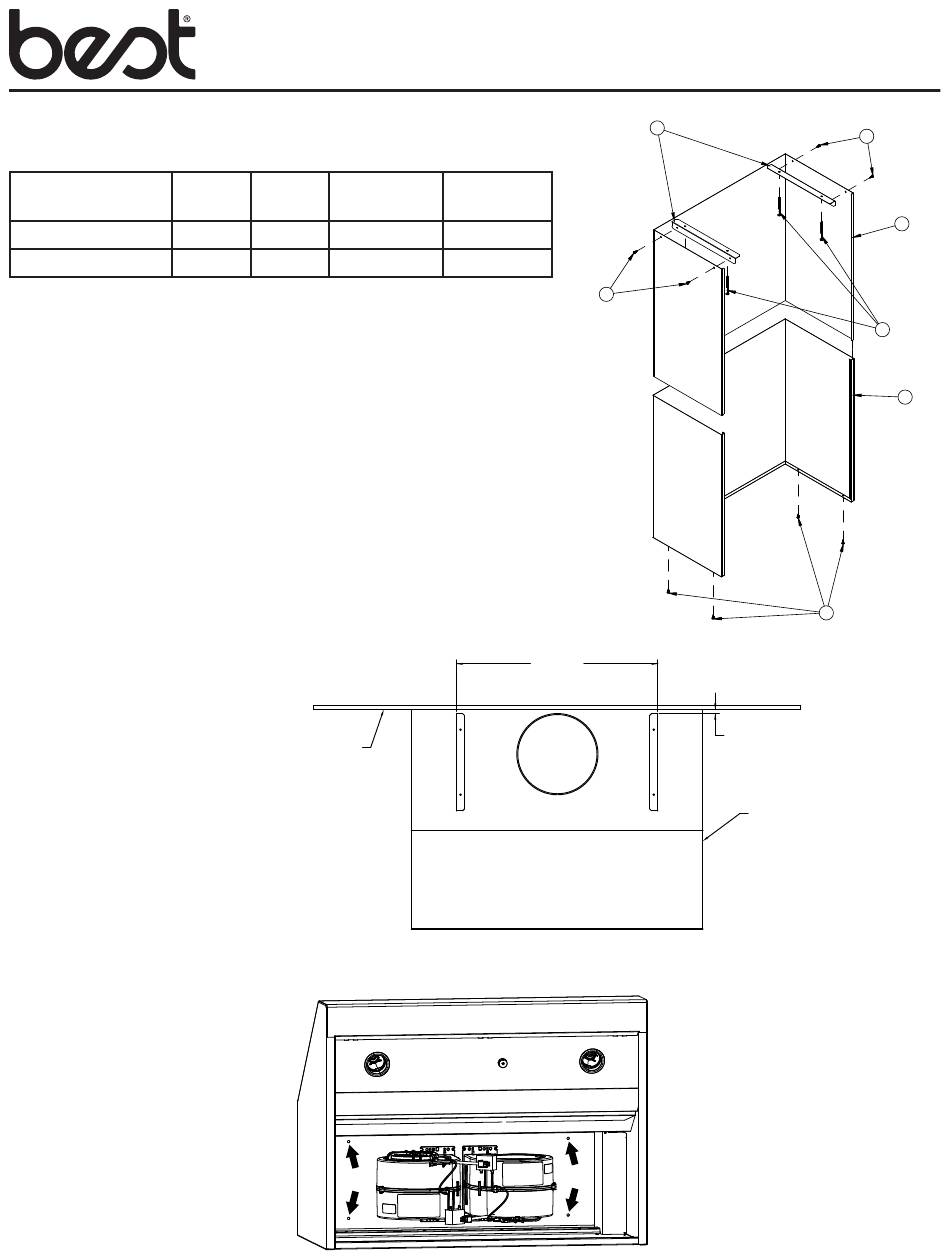

This Kit Contains:
1. (1) Telescopic Flue Cover Bottom
2. (1) Telescopic Flue Cover Top
3. (2) Mounting Brackets
(1) Hardware Bag (Service Part S97019391) Including:
4. (4) #10 x 2" Screws
5. (8) # 8 x 3/8" Screws
Follow hood installation manual steps 1-9 prior to installing
Telescopic Flue Cover, and steps 11-12 to finalize hood
installation.
Step 1:
Remove protective coating from
Telescopic Flue Cover. Be careful
not to scratch surface of stainless
steel.
Step 2:
Fasten Mounting Brackets (Item 3)
to ceiling using dimensions shown
and (4) #10 x 2" Screws (Included
Item 4). Screws must be fastened
into building structure.
Step 3:
Fasten Telescopic Flue Cover to
Hood using: (4) # 8 x 3/8" Screws
(included Item 5). Arrows show hole
locations on Hood. Hand tighten
screws only.
Width Collapsed
Height
13" 25" 30"
16" 25" 30"
WALL
Maximum
Height
54"
54"
5
24-3/4"
CENTER BRACKETS
WITH CENTER OF HOOD
TOP VIEW OF HOOD
MODEL AEWPD
3
5
BOTH BRACKETS
2" FOR AEWPD3054SBE
1/2" FOR AEWPD3054SB
HOOD
Step 4:
Extend Telescopic Flue
Cover and fasten to
Mounting Brackets (Item 3)
with (4) # 8 x 3/8" Screws
(Included Item 5).
5
2
4 4 TOTAL
1
