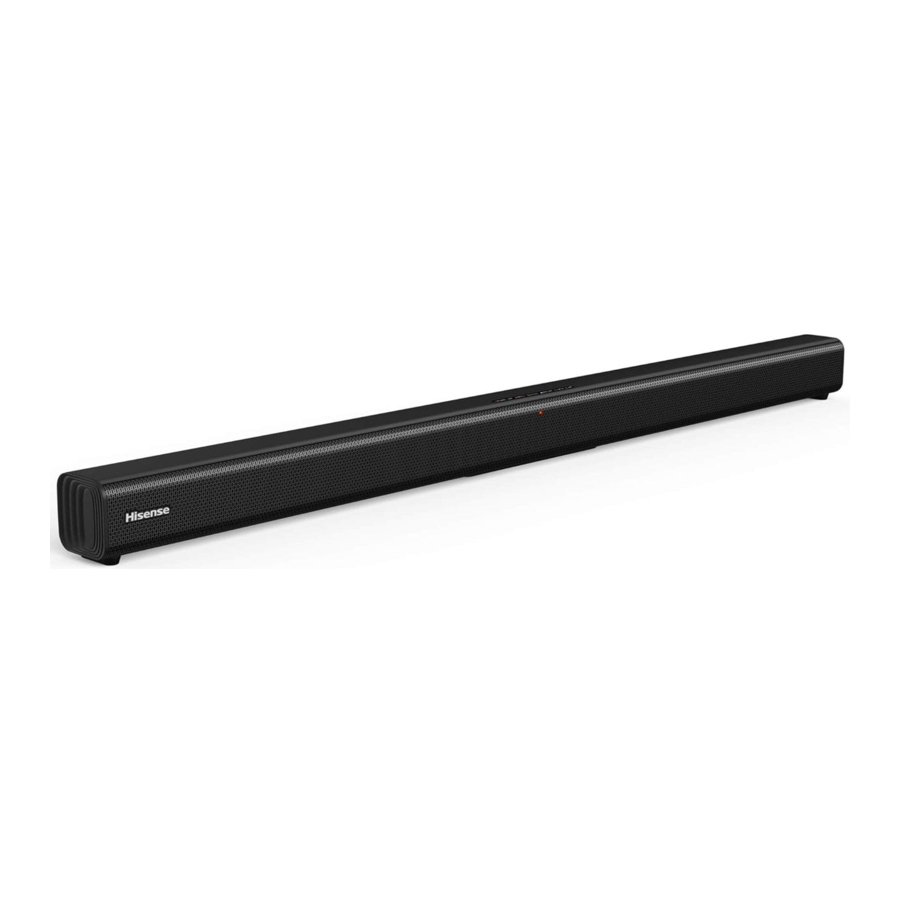

Hisense HS205 Manual

What's in the Box

Remote control

1. Switch the unit between ON and STANDBY mode.

2. (MUTE)
   Mute or resume the sound.
3. MOVIE
   Switch to MOVIE EQ e ect.
4. MUSIC
   Switch to MUSIC EQ e ect.
5. VOL+/VOL-
   Increase/decrease the volume level.
6.
   Skip to previous/next track in Bluetooth/USB mode.
7. /PAIR
   Play/pause/resume playback in Bluetooth/USB mode. Press and hold to activate the pairing function in Bluetooth mode or disconnect the existing paired Bluetooth device.
8. NEWS
   Switch to NEWS EQ e ect.
9. HDMI ARC
   Select the HDMI ARC mode.
10. OPT/COAX
    Select the OPTICAL/COAXIAL mode.
11. (BT)
    Select the Bluetooth mode.
12. LINE IN
    Select the LINE IN mode.
13. USB
    Select the USB mode.

Replace the Remote Control Battery

1. Press and slide the back cover to open the battery compartment of the remote control.
2. Insert two AAA size batteries (included). Make sure the (+) and (–) ends of the batteries match the (+) and (–) ends indicated in the battery compartment.
3. Close the battery compartment cover.

• Do not mix old and new batteries;
• Do not mix alkaline, standard (Carbon-Zinc) or rechargeable (Ni-Cd, Ni- MH, etc.) batteries.

Identifying the Parts

3. Screws
   Remove the screws then install the wall mounting screws into the back of the unit.
4. (ON/OFF) Button
   Switch the unit between ON and Standby mode.
5. +/- (Vol+/Vol-) Buttons
   Increase/decrease the volume level.

6. (SOURCE) Button
   Select the play function.
7. AC~ Socket
   Connect to the power supply.
8. LINE IN Socket
   Connect to an external audio device.
9. USB Socket
   Insert the USB device to play music.
10. HDMI ARC Socket
    Connect to a TV via HDMI cable.
11. COAXIAL Socket
    Connect to a coaxial audio output on the TV.
12. OPTICAL Socket
    Connect to an optical audio output on the TV.

Connections

• Before connecting the AC power cord, ensure you have completed all other connections.


Basic Operation

Standby/ON
When you rst connect the main unit to the mains socket, the main unit will be in Standby mode.

• Press the button on the unit or on the remote control to switch the unit ON.
• Press the button again to switch the unit back to STANDBY mode.
• Disconnect the mains plug from the mains socket if you want to switch the unit OFF completely.
  Auto Wake
  If a TV or an external device is connected (LINE IN / OPTICAL / COAXIAL / HDMI ARC), the unit will switch on automatically when the TV or the external device is switched on.
  Automatic Power Off Function
  The unit automatically turns to Standby mode after about 15 minutes if the TV or the external unit is disconnected, switched off.
  • To switch the unit o completely, remove the mains plug from the mains socket.
  • Please turn the unit o completely to save energy when not in use.

Select Modes
Press the (SOURCE) button repeatedly on the unit or the HDMI ARC, (Bluetooth), OPT/COAX, USB and LINE IN buttons on the remote control to select the desired mode. The indicator light on the front of the main unit will show which mode is currently in use.

Adjust the Volume
Press the VOL+ / VOL- buttons on the unit or on the remote control to adjust the volume. If you wish to turn the sound o, press the (MUTE) button on the remote control. Press the (MUTE) button again or press the VOL+ / VOL- buttons on the unit or on the remote control to resume normal listening.

Select a Preset Sound Effect
While playing, press the NEWS / MOVIE / MUSIC buttons on the remote control to select the preset equalizers:

• MOVIE (recommended for viewing movie)
• MUSIC (recommended for listening to music)
• NEWS (recommended for listening to news)

Bluetooth Operation
