This user's guide describes the operation of the TAS5751M evaluation module (EVM). The EVM is
connected to the PurePath™ Console Motherboard (PPCMB) and is configured using PurePath Console 3
(PPC3) software. Visit the
The main contents of this document are:
Details for properly connecting a TAS5751M evaluation module (EVM) and the details of the EVM
Start-up procedure using PurePath Console 3 (PPC3) software with the correct plugin for the EVM
Quick-start guide for the common modes in which the TAS5751MEVM is used
Throughout this document, the abbreviation EVM and the term evaluation module are synonymous with
the TAS5751MEVM evaluation module, unless otherwise noted.
space
space
......................................................................................................................
1
Overview
....................................................................................................................
2
EVM Setup
3
Using the TAS5751MEVM with PurePath Console 3
4
Board Layout, Bill of Materials, and Schematic
1

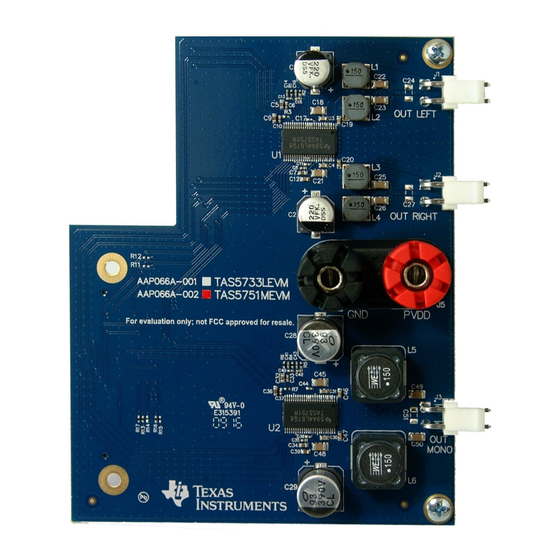

TAS5751M Evaluation Board
