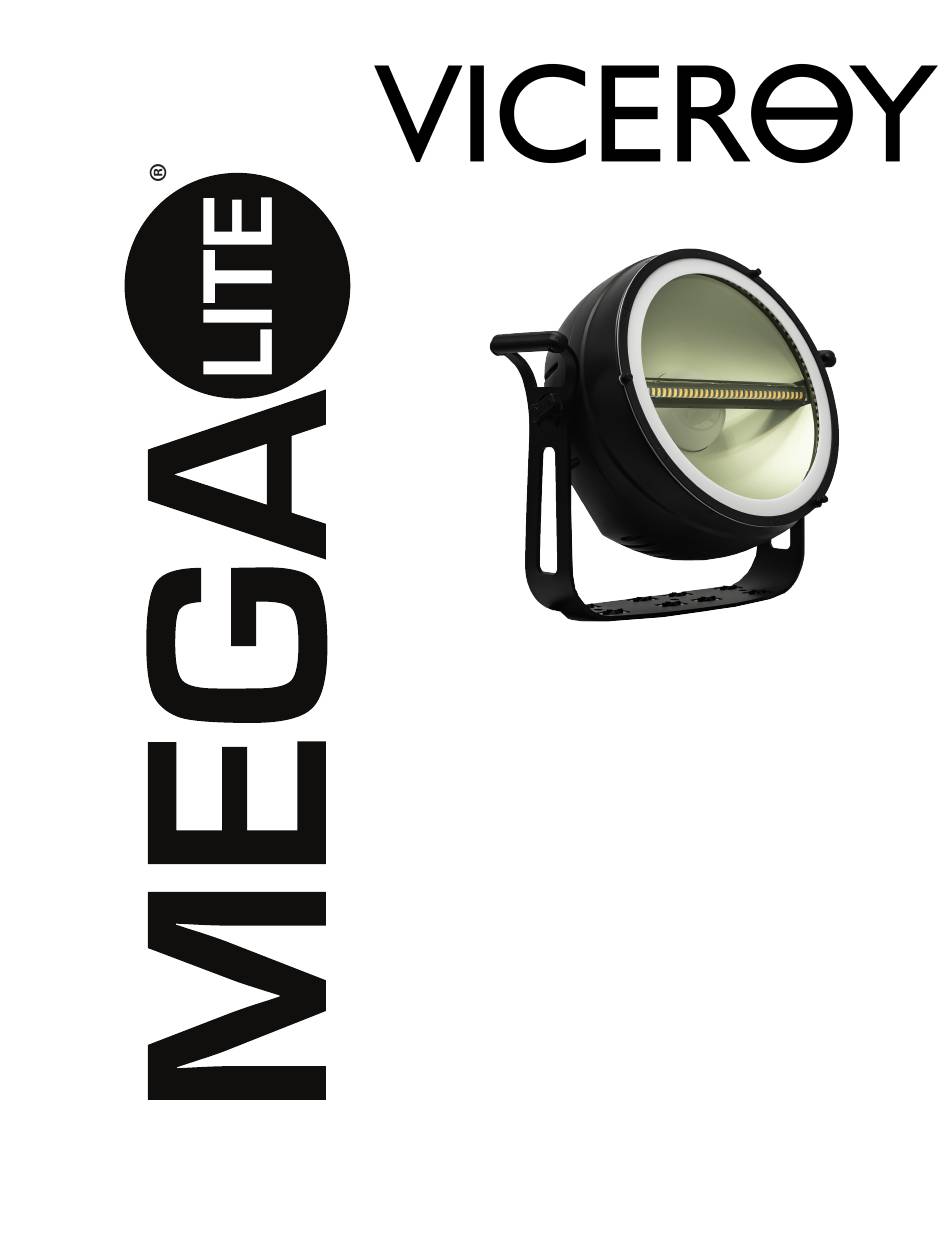

Page 1: Table Of Contents
USER MANUAL Table of Contents Safety Information What’s Included Specifications Main Power Connection DMX Connection Display Settings DMX Profile Size And Weight Installation Parts and Accessories Warranty Customer Service... -
Page 2: Safety Information
What is Included 1pc Viceroy Fixture 1pc Power Cable - Nema 5-15 to SAC3FX-67 1pc User Manual... -
Page 3: Specifications
Specifications Fixture ID 4155-Viceroy Mechanical Specifications Housing: Die-Cast Aluminum Outdoor Rating: IP-65 Mounting System: Mounting Yoke Power Connection: Input: Seetronics SAC3MPX-67 Output: Seetronics SAC3FPX-67-01 Cable Input: Nema 5-15 to SAC3FX-67 (cable included) Signal Connection: Input: Seetronics J5F2C-W-B-67 5 pin XLR... -
Page 4: Main Power Connection
Main Power Connection Caution! Do not connect fixture to a dimmer system. This unit must be earthed. (Electronically grounded) Replace fuse only with the specified type and rating. This device is equipped with auto switching power supply that will allow the fixture to work from 100-240V AC 50/60Hz Power Link max 3 units at 120V Cable USA... -
Page 5: Display Control
It’s LCD display gives you a code view of the options and functions. The following will explain each function. V1.1 28° The Viceroy comes with Key Lock enabled. To unlock the fixture (from the home screen), press the MODE and SET buttons for three seconds. DOWN... - Page 6 Slave: Sets fixture in slave mode. Fixture must be placed on DXM start 1.DMX channel 001. 2.Slave 3.Dimmer 4.Auto Dimmer: Manual control of all light features. Adjust to desired effect. 1.DMX 2.Slave 3.Dimmer 4.Auto Auto: Options for Playback Auto Program, YES or NO. Yes enables auto 1.DMX mode.
-
Page 7: Dmx Profile
DMX Profile... - Page 8 DMX Profile...
-
Page 9: Size And Weight
Size and Weight 21.6” 10.6” 17” 1.37” 19” Fixture Size: 21.6” X 19” X 10.6” Fixture Weight: 42.1lb Packaged Size: 25.75” X 22.5” X 14.5” Packaged Weight: 53lb... -
Page 10: Installation
Installation Caution! 1. The Installation must be carried out by an authorized dealer or trained professional. 2. Unit may cause severe injuries, if you have doubts concerning the safety do not install. 3. Unit is to be 24 inches away from flammable materials. 4. -
Page 11: Warranty
General Terms & Conditions 1. All resellers must have approved and signed Reseller Application on file, including their respective state tax information and W-9. Applications are re-evaluated on a fiscal calendar year basis to assure business integrity and tax status. 2. -
Page 12: Customer Support
Customer Support MEGA-Lite has a customer support line to provide set-up help and to answer any questions should you encounter a problem. Please visit our website for any other related technical documents. For service related issues, please contact our service dept. Monday - Friday 9am to 6pm CST (210)684-2600 Service@mega.lighting...
