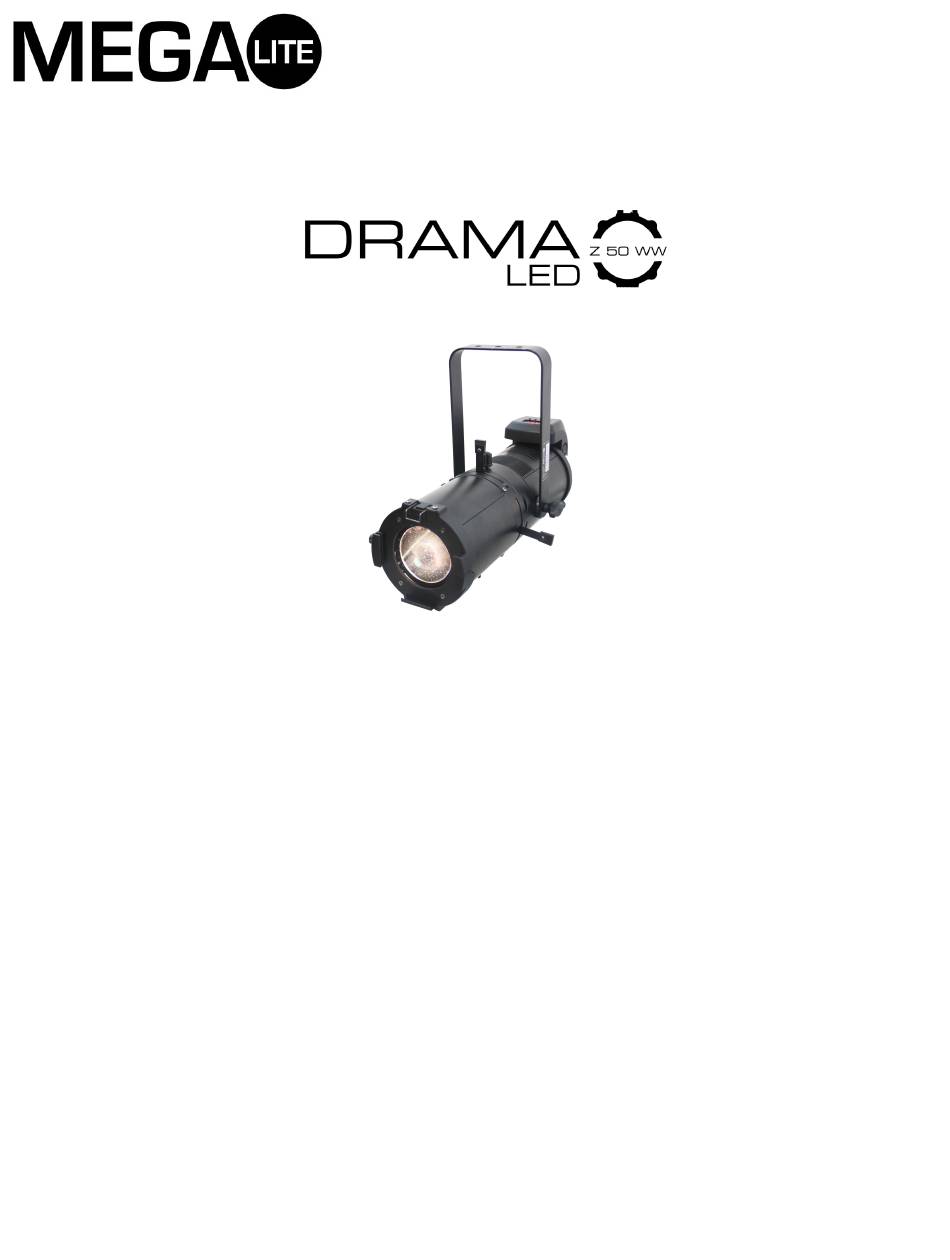

Page 1: Table Of Contents
USER MANUAL Table of Contents Safety Information Specifications Photometrics Main Power Connection DMX-512 Connection Mounting Controller DMX Profile Main Control Menu Rigging the Fixture Cleaning & Maintenance... -
Page 3: Safety Information
Check that the unit has not been damaged during transport Protection Against Fire 1. Maintain a minimum of 1 foot distance from any type of flame. 3. Replace fuse only with the specified type and rating. 4. Do Not install the unit to close to a heat source. 5. -
Page 4: Specifications
Technical Information Part Numbers Fixture 7058-Drama LED Z50 WW Mechanical Specifications DMX Connectors: 3 or 5-pin XLR connectors in/out (specified at ordering) Power Connections: Nema 5-15 to screw type base connector cable mounted Thermal: Maximum ambient temperature 40° C Maximum surface temperature 60° C... -
Page 5: Photometrics
Photometrics Output at Full Lens Lumens at Full Output Efficiency 18° 1611 33lm/W 36° 1561 32lm/W Lumens at Full Beam Angle 18° Distance Foot Candles Beam Diameter 810fc 1.6' 203fc 3.1' 90fc 4.7' 51fc 6.3' Lumens at Full Beam Angle 36° Distance Foot Candles Beam Diameter... -
Page 6: Main Power Connection
Main Power Connection Caution! Do not connect fixture to a dimmer system. This unit has Auto switching power supply. It will respond to 110V or 220V automatically This unit must be earthed. (electronically grounded) Replace fuse only with the specified type and rating. The occupation of the connection-cable is as follows: This fixture is equipped with an electronic power supply that will let the unit operate from 100V to 240V from 50Hz to Cable (USA) -
Page 7: Mounting Controller
Mounting DMX Controller The mounting of the DMX controller should be mounted on the rear of the body. There is male USB Connection that needs to align with the female base connection. The 2 thumb screws need to be tightened to secure the controller with the fixture. -
Page 8: Main Control Menu
Main Control CONTROL BOARD If fixture was purchased with 7057-CON you will have Dimmer and DMX Control over the fixture . The control board on the fixture is your inter- face to access and control all the functions on the unit. Its digital display gives you a code view of the options and functions. -
Page 9: Rigging The Fixture
Rigging the fixture Caution! 1. The installations must be carried out by an authorized dealer or trained professional. 2. Unit may cause severe injures if you have doubts concerning the safety do not install. 3. Unit is to be 24inches away from flammable materials (decoration material) 4. - Page 10 Warranty Information Warranty Conditions -Unless otherwise stated in writing, your product is covered by a one year parts and labor limited warranty. -LED’s and LAMPS are not guaranteed to match in color temperature or output. -It is the owner’s responsibility to furnish receipts or invoices for verification of purchase, date, and reseller or distributor. If purchase date cannot be provided, date of manufacture will be used to determine warranty period.
