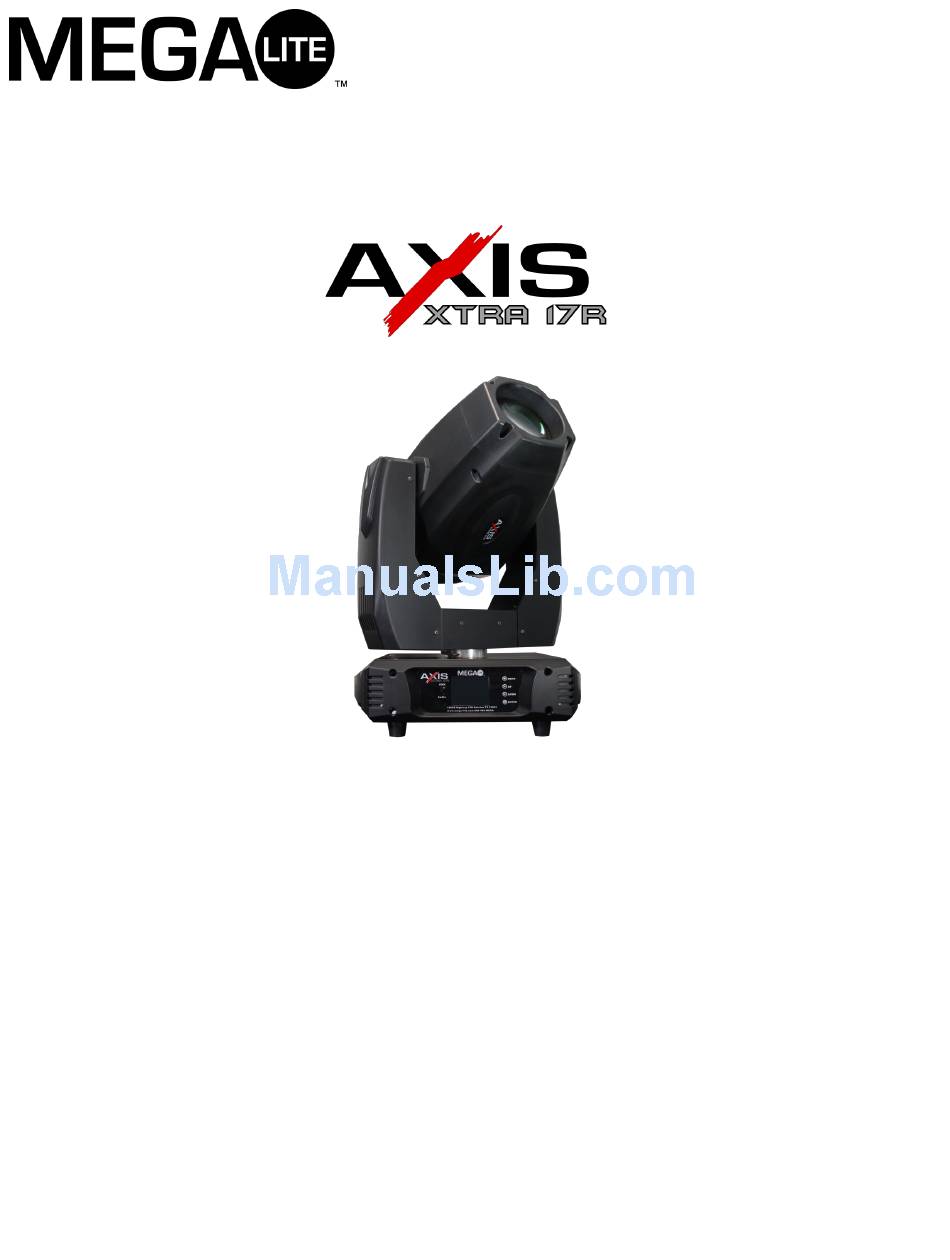

USER MANUAL
Table of Contents
Safety Information...............................................................3
Specifications.....................................................................4
Main Power Connection........................................................5
DMX-512 Connection...........................................................5
Rigging the Fixture..............................................................6
Main Control Menu..............................................................7
DMX Profile.....................................................................................8
Parts List.......................................................................................10
Advertisement
Table of Contents
Related Manuals for MegaLite axis xtra 17R
Summary of Contents for MegaLite axis xtra 17R
-
Page 1: Table Of Contents
USER MANUAL Table of Contents Safety Information……………………………………...………………3 Specifications………………………………………...…………………4 Main Power Connection…………………………...…………………..5 DMX-512 Connection……………………………..…………………...5 Rigging the Fixture……………………………….…………………….6 Main Control Menu……………..…………………………………..….7 DMX Profile..................8 Cleaning & Maintenance...............10 Parts List..................10... - Page 3 Check that the unit has not been damaged during transport Protection Against Fire 1. Maintain a minimum of 1 foot distance from any type of flame. 3. Replace fuse only with the specified type and rating. 4. Do Not install the unit to close to a heat source. 5.
-
Page 4: Specifications
Specifications Part Numbers Fixture Lamp Flight Case 1155 - AXIS Xtra 17R L-YOD 17R 1155-RC2 Dual Road Case Mechanical Specifications 9.5 ” Pan: 540° Tilt: 270° 16.60 ” DMX Connectors: 3 and 5-pin XLR connectors Power Connectors: Power Con Type 7.25 ”... - Page 5 Colors 1: Open 2: Red 3: Highlight Yellow 4. Blue 4: Green 5: Magenta 6: Light Blue 7: Orange 8. UV 9: Lime Green 10: CTO 11. Red / Orange 12. Orange 13. Blue Static Gobo’s Rotating Gobo’s Gobo 1 Gobo 2 Gobo 3 Gobo 4...
-
Page 6: Main Power Connection
Main Power Connection Caution! Do not connect fixture to a dimmer system. This unit must be earthed. (electronically grounded) Replace fuse only with the specified type and rating. This device is equipped with a auto switching power supply that will allow you to work from 100V-240V 50/60Hz The occupation of the connection-cable is as follows: Cable (USA) Cable (EU) -
Page 7: Rigging The Fixture
Rigging the fixture Rigging the fixture Caution! Caution! 1. The installations must be carried out by an authorized dealer or trained professional. 1. The installations must be carried out by an authorized dealer or trained professional. 2. Unit may cause severe injures if you have doubts concerning the safety do not install. 2. -
Page 8: Main Control Menu
▼ Audio 18668 Highway 16N Helotes TX 78023 www.mega-lite.com 866-460-MEGA All Changes can be done using the touch display Axis Xtra 17R Touch display menu shortcut AUTO =Address DMX Mode 1 LAMP =Display reverse... - Page 9 Chinese English Address Display Screen Saver Mode 1 WorkMode Screen Rotation Display • Chinese= To change the display language to Chinese select this option Touch Enable TestMode by pressing Enter. Touch Rectify Advanced • Screen Saver= To select a different option for screen setting Status 1.
-
Page 10: Dmx Profile
DMX Profile Axis Xtra 17R 16 Ch Mode DMX Channel Function Description Value Init Pan Course 0-255 Tilt Tilt Course 0-255 Pan / Tilt Speed Pan / Tilt Speed (fast to slow) 0-255 Closed 0-31 Open 32-63 Strobe (slow to fast) - Page 11 Gobo 1 Shake (Slow to Fast) 88-95 Gobo 2 Shake (Slow to Fast) 96-103 Gobo 3 Shake (Slow to Fast) 104-111 Gobo 4 Shake (Slow to Fast) 112-119 Gobo 5 Shake (Slow to Fast) 120-127 Gobo 6 Shake (Slow to Fast) 128-135 Gobo 7 Shake (Slow to Fast) 136-143...
- Page 12 Color, Gobo, Prism Reset 150-159 No Function 160-199 Lamp On (hold for 3 seconds) 200-205 No Function 206-239 Reset All Motor Functions 240-255 Axis Xtra 17R 20 Ch Mode DMX Channel Function Description Value Init Pan Course 0-255 Pan Fine Pan Fine...
- Page 13 Red/Orange 55-59 Orange 60-64 Blue 65-69 Linear Color Change 70-189 Color Clockwise Color Scroll (fast to slow) 190-219 Open 220-224 Counter Clockwise Color Scroll (slow to fast) 225-255 Open Gobo 1 Gobo 2 10-15 Gobo 3 16-21 Gobo 4 22-27 Gobo 5 28-33 Gobo 6...
- Page 14 Gobo 1 Shake (Slow to Fast) 100-110 Gobo 2 Shake (Slow to Fast) 111-121 Gobo 3 Shake (Slow to Fast) 122-132 Gobo 4 Shake (Slow to Fast) 133-143 Gobo 5 Shake (Slow to Fast) 144-154 Rotating Gobo 6 Shake (Slow to Fast) 155-165 Gobo Gobo 7 Shake (Slow to Fast)
-
Page 15: Cleaning And Maintenance
Cleaning and maintenance Installation Maintenance: The operator has to make sure that the unit is operating safely and has the installations and electronics checked by an expert every 2 years. The following points have to be considered during the inspection: 1) All screws used for installing the device or part of the device have to be tightly connected and must not be corroded. -
Page 16: Warranty Information
Warranty Information Warranty Conditions -Unless otherwise stated in writing, your product is covered by a one year parts and labor limited warranty. -LEDs are not guaranteed to match in color temperature or output. -It is the owner’s responsibility to furnish receipts or invoices for verification of purchase, date, and reseller or distributor. If purchase date cannot be provided, date of manufacture will be used to determine warranty period.
