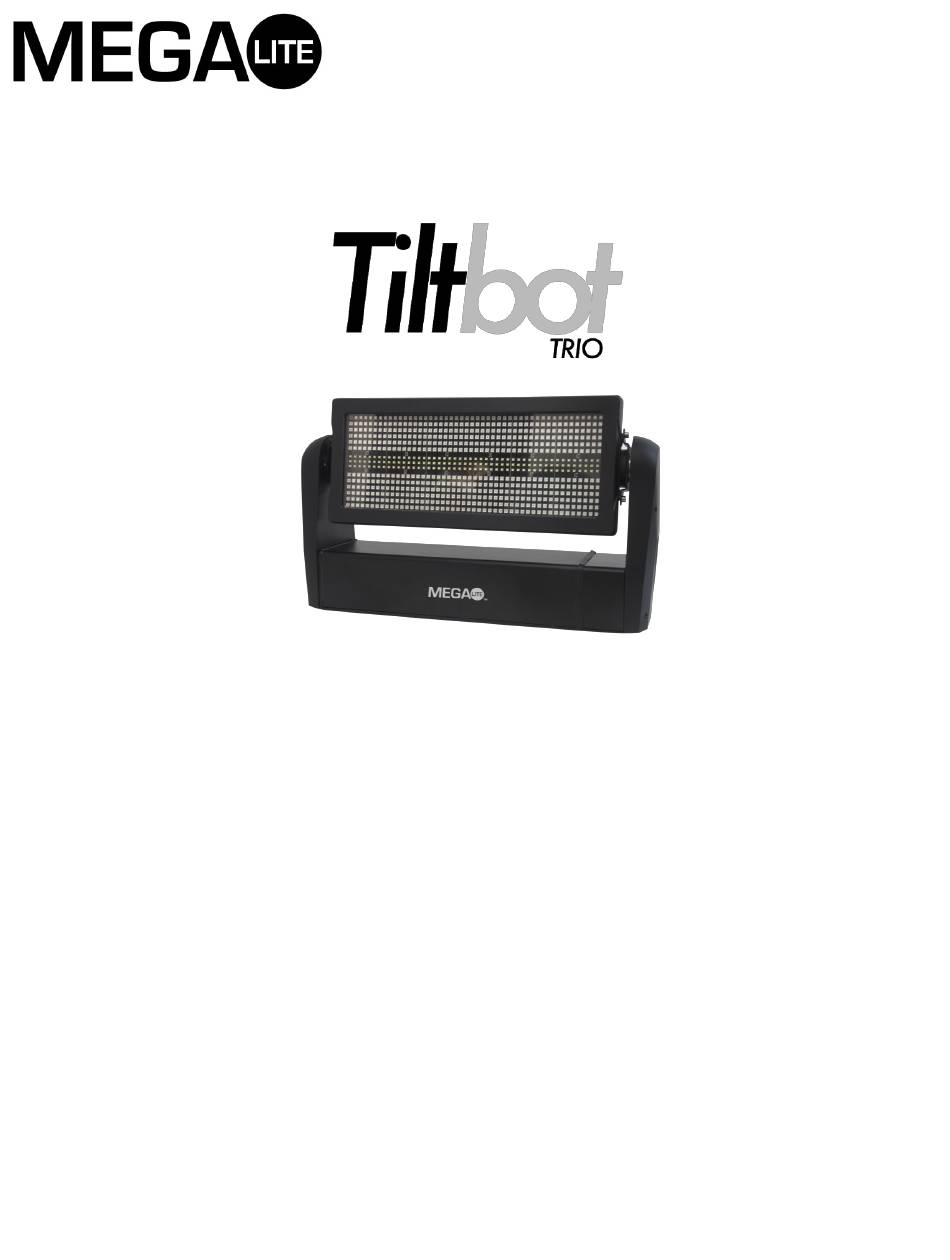

Page 1: Table Of Contents
USER MANUAL Table of Contents Safety Information Specifications Main Power Connection DMX-512 Connection Size and Weight Main Control Menu DMX Profile Parts List Rigging the Fixture Cleaning & Maintenance... -
Page 3: Safety Information
Check that the unit has not been damaged during transport Check that the unit has not been damaged during transport Protection Against Fire Protection Against Fire 1. Maintain a minimum of 1 foot distance from any type of flame. 1. Maintain a minimum of 1 foot distance from any type of flame. 3. -
Page 4: Specifications
Technical Information Part Numbers Road Case Fixture 1310-Tiltbot Trio CAS-1310-4 4 Unit Road Case Mechanical Specifications DMX Connectors: Panel Mounted IP67 5-pin XLR connectors in/out Power Connections: Panel Mounted Seetronic IP Rated Power in/out connection (Nema 5-15 to Seetronic power Female cable included) Thermal: Maximum ambient temperature 40°... -
Page 5: Main Power Connection
Main Power Connection Caution! Do not connect fixture to a dimmer system. This unit has Auto switching power supply. It will respond to 110V or 240V automatically This unit must be earthed. (electronically grounded) Replace fuse only with the specified type and rating. Power Link 2 units at 110V and 4 units at 220V The occupation of the connection-cable is as follows: This fixture is equipped with an electronic power supply that will let the unit operate from 100V to 240V from 50Hz to 60Hz... -
Page 6: Size And Weight
Size and Weight Size 22.12" X 13.12" X 5.5" Weight 23lb Packaged 27.36" X 9" X 17.25" 25lb 5.5” 4.86” 22.12” 5”... -
Page 7: Main Control Menu
The control board on the fixture is your interface to access and control CONTROL BOARD all the functions on the unit. Its digital display gives you a code view of Mega Lite the options and functions. The following will explain each function and Tiltbot Trio its options. DOWN ENTER DMX Address Address Press Enter to select the DMX start channel. -
Page 8: Parts List
Auto Speed Main Menu Auto Mode Press Enter. Select from 6 modes Press ESC to return to Main Menu. >Auto Speed Fan Test (Note: If you want to have fixture remain on Auto Test do not press ESC and just power off and on fixture to return to last setting) Temperature Main Menu... -
Page 9: Dmx Profile
DMX Profile Tiltbot Trio 3 Ch Mode DMX Channel Function Description Value Init Tilt Tilt 0-255 Tilt Fine Tilt Fine 0-255 No Function 0-10 Strobe Strobe (slow to fast) 11-255 Tiltbot Trio 12 Ch Mode DMX Channel Function Description Value... - Page 10 Tiltbot Trio 14 Ch Mode DMX Channel Function Description Value Init Tilt Tilt 0-255 Tilt Fine Tilt Fine 0-255 Dimmer Dimmer (off to full) 0-255 LED Color Red LED Intensity 0-255 LED Color Green LED Intensity 0-255 LED Color Blue LED Intensity...
- Page 11 Tiltbot Trio 23 Ch Mode DMX Channel Function Description Value Init Tilt Tilt 0-255 Tilt Fine Tilt Fine 0-255 White Dimmer Dimmer (off to full) 0-255 Duration White Duration 0-255 Strobe (slow to fast) White Strobe 0-255 No Function 0-36...
-
Page 12: Rigging The Fixture
No Function 0-49 FX / Pattern Color Priority On 50-54 FX / Pattern Color Priority Off 55-59 No Function 60-69 Normal Tilt Control 70-74 Invert Tilt Control 75-79 Normal Pixel Orientation 80-84 Control Invert Pixel Orientation 85-89 No Function 90-209 Duration Percentage Mode On 210-214 Duration Percentage Mode Off... -
Page 13: Cleaning & Maintenance
Tiltbot Trio 50 Ch Mode DMX Channel Function Description Value Init Tilt Tilt 0-255 Tilt Fine Tilt Fine 0-255 LED Color 1 Red LED Intensity 0-255 LED Color 1 Green LED Intensity 0-255 LED Color 1 Blue LED Intensity 0-255... - Page 14 Tiltbot Trio 62 Ch Mode DMX Channel Function Description Value Init Tilt Tilt 0-255 Tilt Fine Tilt Fine 0-255 Dimmer Dimmer (off to full) 0-255 LED Color Red LED Intensity 0-255 LED Color Green LED Intensity 0-255 LED Color Blue LED Intensity...
- Page 15 LED Color 1 Red LED Intensity 0-255 LED Color 1 Green LED Intensity 0-255 LED Color 1 Blue LED Intensity 0-255 LED Color 2 Red LED Intensity 0-255 LED Color 2 Green LED Intensity 0-255 LED Color 2 Blue LED Intensity 0-255 LED Color 3 Red LED Intensity...
- Page 16 Item List Tiltbot Trio Part Number Description 1310PCBLEDMOD COMPLETE LED MODULE 1310PCBDRIA LED DRIVER A 1310PCBDRIB LED DRIVER B 1310PCBDISMAI MAIN PCB AND DISPLAY 1310PCBPOW POWER RELAY PCB 1310FAN 1310POW POWER SUPPLY 1310LEDRGB SINGLE RGB LED 1310LEDWHI SINGLE WHITE LED...
- Page 17 Rigging the fixture Caution! 1. The installations must be carried out by an authorized dealer or trained professional. 2. Unit may cause severe injures if you have doubts concerning the safety do not install. 3. Unit is to be 24inches away from flammable materials (decoration material) 4.
- Page 18 Warranty Information Warranty Conditions -Unless otherwise stated in writing, your product is covered by a one year parts and labor limited warranty. -LED’s and LAMPS are not guaranteed to match in color temperature or output. -It is the owner’s responsibility to furnish receipts or invoices for verification of purchase, date, and reseller or distributor. If purchase date cannot be provided, date of manufacture will be used to determine warranty period.
