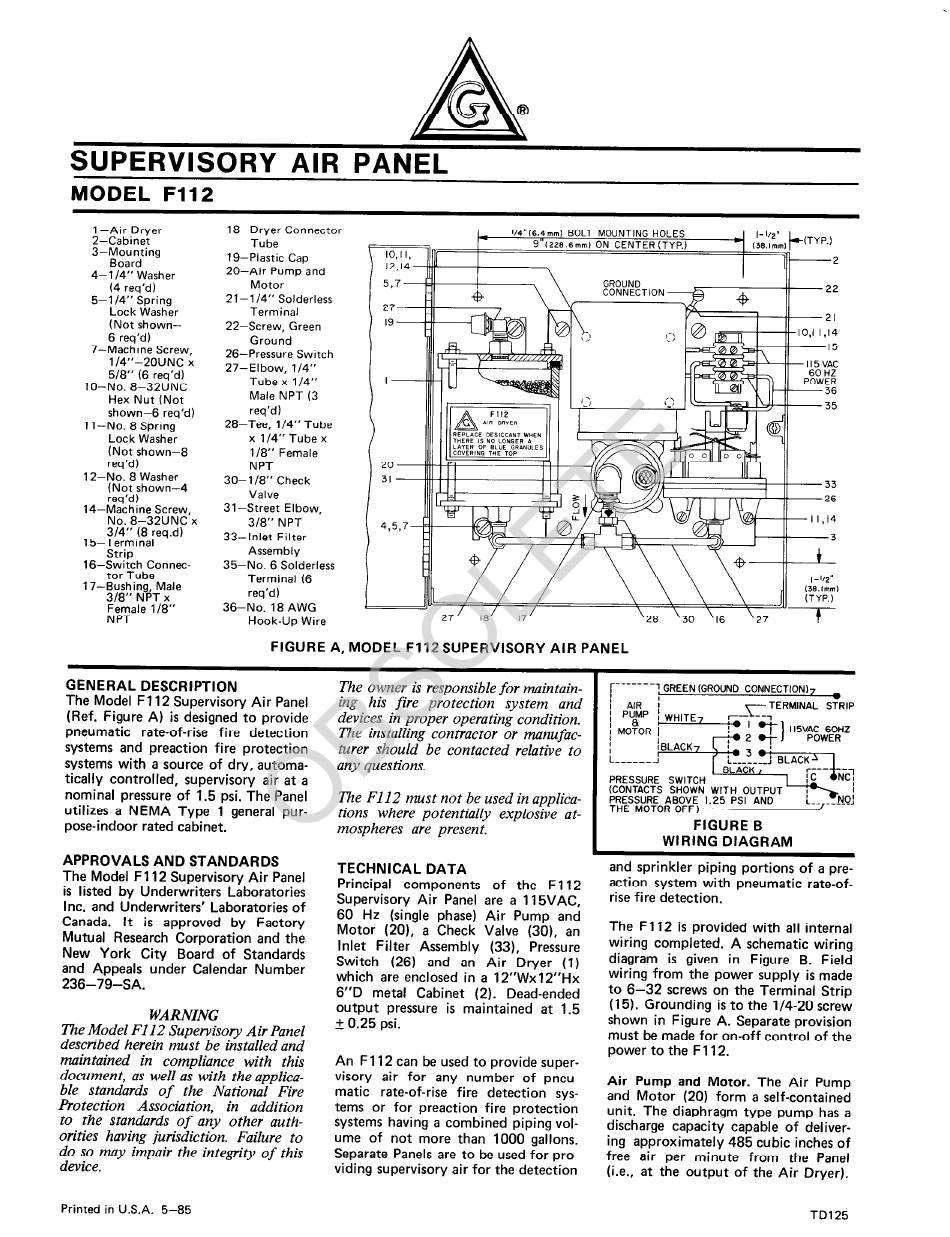

Tyco F112 Quick Start Manual

SUPERVISORY AIR PANEL
MODEL F112
1 -Air Dryer
Z-Cabinet
3-ii;r;ting
4- 114" Washer
(4 req'd)
5-l/4" Spring
Lock Washer
(Not shown-
6 req'd)
7-Machine Screw,
114"-2OUNC x
5/8" (6 req'd)
lo--No. 8-32UNC
Hex Nut (Not
shown-6 req'd)
1 l-No. 8 Spring
Lock Washer
(Not shown-8
req'd)
1 ~-NO. 8 Washer
(Not shown-4
req'd)
14-Machine Screw,
No. 8-32UNC x
3/4" (8 req.d)
15-Terminal
Strip
1 6-fow,itccb(fjonnec-
17-~;;3Shil;g+,;le
I,
Female 118"
NPT
18-Dryer Connector
Tube
1 B-Plastic Cap
20-Air Pump and
Motor
21-l/4" Solderless
Terminal
22-Screw, Green
Ground
26-Pressure Switch
27-Elbow, l/4"
Tube x l/4"
Male NPT (3
req'd)
28-Tee, l/4" Tube
x l/4" Tube x
l/8" Female
NPT
30-118" Check
Valve
31-Street Elbow,
3/8" NPT
33-Inlet Filter
Assembly
35-No. 6 Solderless
Terminal (6
req'd)
36-No. 18 AWG
Hook-Up Wire
* 'b"(6.4mml BOLT MOUNTING HOLES
9 1~~8.6mm) ON CENTER (TYP.)
lO,ll,
- ,;$$+TYP.)
12,14
ll
2
5.7 . ..I \
CONNECTION
4+
22
\
1
21
\\\y-Lz,
-
I
IjlC .I .I
/
27' 18' 17'
\. \. \ \.
JJ (TYP.
'28 '30 '16 '27 7
FIGURE A, MODEL F112 SUPERVISORY AIR PANEL
GENERAL DESCRIPTION
The Model F112 Supervisory Air Panel
(Ref. Figure A) is designed to provide
pneumatic rate-of-rise fire detection
systems and preaction fire protection
systems with a source of dry, automa-
tically controlled, supervisory air at a
nominal pressure of 1.5 psi. The Panel
utilizes a NEMA Type 1 general pur-
pose-indoor rated cabinet.
APPROVALS AND STANDARDS
The Model F112 Supervisory Air Panel
is listed by Underwriters Laboratories
Inc. and Underwriters' Laboratories of
Canada. It is approved by Factory
Mutual Research Corporation and the
New York City Board of Standards
and Appeals under Calendar Number
23%79-SA.
WARNING
The Model FI 12 Supervisory Air Panel
described herein must be installed and
maintained in compliance with this
document, as well as with the applica-
ble standards of the National Fire
Protection Association, in addition
to the standards of any other auth-
orities haying jurisdiction. Failure to
do so may impair the integrity of this
device.
Printed in U.S.A. 5-85
The owner is responsible for maintain-
ing his fire protection system and
devices in proper operating condition.
The installing contractor or manufac-
turer should be contacted relative to
any questions.
r--- ;
---I GREEN (GROUND CONNECTION),
TERMINAL STRIP
' P%P 1 ,$,",TE,
j MO~oOR
,-&
I
The F112 must not be used in applica-
~~~~~~~
tions where potentially explosive at- THE MOTOR OFF)
/
mospheres are present. FIGURE B
WIRING DIAGRAM
TECHNICAL DATA
Principal components of the F112
Supervisory Air Panel are a 115VAC.
60 Hz (single phase) Air Pump and
Motor (20), a Check Valve (30), an
Inlet Filter Assembly (33), Pressure
Switch (26) and an Air Dryer (1)
which are enclosed in a 12"Wx12"Hx
6"D metal Cabinet (2). Dead-ended
output pressure is maintained at 1.5
& 0.25
psi.
An F 112 can be used to provide super-
visory air for any number of pneu-
matic rate-of-rise fire detection sys-
tems or for preaction fire protection
systems having a combined piping vol-
ume of not more than 1000 gallons.
Separate Panels are to be used for pro-
viding supervisory air for the detection
and sprinkler piping portions of a pre-
action system with pneumatic rate-of-
rise fire detection.
The F112 is provided with all internal
wiring completed. A schematic wiring
diagram is given in Figure B. Field
wiring from the power supply is made
to 6-32 screws on the Terminal Strip
(15). Grounding is to the l/4-20 screw
shown in Figure A. Separate provision
must be made for on-off control of the
power to the F 112.
Air Pump and Motor. The Air Pump
and Motor (20) form a self-contained
unit. The diaphragm type pump has a
discharge capacity capable of deliver-
ing approximately 485 cubic inches of
free air per minute from the Panel
(i.e., at the output of the Air Dryer).
TD125
