Aerotech RMS-38/480-1320 Assembly & Operation Instructions

Before You Begin
• Do not modify the motor in any way, except as
described herein.
• If any parts are missing or damaged, call AeroTech at
435-865-7100.
• Use only AeroTech RMS reload kits to refurbish an
RMS motor.
• Do not interchange parts from different reload kits.
• Do not reuse any parts of the RMS reload kit.
• Save the reload kit plastic bag for the used reload kit
parts. Dispose of bag and parts properly.
Package Contents
RMS-EZ reload kit components
Igniter & ejection charge kit
Hardware and Supplies Required
RMS 38mm aft closure
RMS 38mm case (see RMS-EZ package label for size)
RMS 38mm retaining ring (from 38mm reload adapter
system)
RMS 38mm forward seal disk
38mm reload adapter system case spacers (if needed;
refer to RAS instructions)
Universal™ delay drilling tool
Synco™ Super Lube™ or other grease
Hobby knife or scissors
Wet wipes or damp paper towels
Preparation for Flight
1. Remove the supplied FirstFire™ igniter from the
cardboard tube and straighten the leads.
2. Strip 1/2"-1" of insulation from the end of the leads.
3. Insert the black-coated end of the igniter through the
nozzle opening and push it completely into the motor
core, until the coated end is touching the time delay
element in the modular bulkhead.
4. Using a hobby knife or scissors, cut a corner off the
supplied nozzle cap to produce a vent hole in the cap
about 1/16"-1/8" wide.
5. Press the open end of the nozzle cap over the
exposed nozzle extension to hold the igniter firmly in
place.
6. Install the motor into the rocket's motor mount tube.
Ensure that the motor is securely retained in the rocket
by using positive mechanical means to prevent it from
being ejected during recovery system deployment.
7. Prepare the rocket's recovery system and then
launch the rocket in accordance with the National
Association of Rocketry (NAR) and/or Tripoli Rocketry
Association (TRA) Safety Codes.
Post-Recovery Cleanup
NOTE: Perform motor clean-up as soon as possible
after motor firing. Propellant and smoke charge residues
become difficult to remove after 24 hours and can lead
to corrosion of the metal parts. Place the spent motor
components in the reload kit plastic bag and dispose of
properly.
1. After the motor has cooled down, unthread and
remove the aft closure and the retaining ring.
AeroTech Division
RCS Rocket Motor Components, Inc.
Cedar City, UT 84721
www.aerotech-rocketry.com
Post-Recovery Cleanup (cont'd)
2. Remove the spent components from the casing by
pushing on the nozzle end and discard. Using wet wipes
or damp paper towels, wipe the inside of the casing and
all surfaces of the aft closure, retaining ring and forward
seal disk to remove all propellant residue. DO NOT
DISCARD THE FORWARD SEAL DISK!
3. Apply a light coat of grease to all threads and the
inside of the motor case. Reassemble metal parts and
store motor in a dry place.
First Aid
Do not ignite an AeroTech motor indoors. Do not breath
fumes from the rocket motor exhaust. For a minor burn,
apply a burn ointment. For a severe burn, immerse the
burned area in ice water at once and see a physician as
quickly as possible. In the unlikely event of oral ingestion
of the propellant, induce vomiting and see a physician
as quickly as possible. The composite propellant used in
AeroTech reload kits consists primarily of Ammonium
Perchlorate and a rubber-like plastic elastomer.
Redline™ propellant also contains Strontium Nitrate,
and Mojave Green™ propellant contains Barium Nitrate.
Disposal
Pack assembled motor firmly in a hole in the ground so
that only the nozzle is exposed, away from people,
animals, buildings and flammable materials. Ignite motor
electrically from a distance of 30 feet or more.
Propellant, delay and ejection charge (if installed) will
burn until consumed. Wait until the motor has cooled off
before disassembly and cleanup.
Fire Safety
Tests show that the pyrotechnic components of RMS™
reload kits will not explode in fires and normally will not
ignite unless subjected to direct flame and then will burn
slowly. Use water to fight any fires in which AeroTech
RMS™ reload kit pyrotechnic components may become
involved: Direct the water at the AeroTech RMS™ reload
kit pyrotechnic components to keep them below their
550 deg. F autoignition temperature. Foam and carbon
dioxide fire extinguishers will NOT extinguish burning
propellants of the type used in RMS™ reload kit
pyrotechnic components. Keep reload kit pyrotechnic
components away from flames, sources of heat and
flammable materials.
Disclaimer and Warranty
NOTICE: As we cannot control the storage and use of
our products, once sold we cannot assume any
responsibility for product storage, transportation or
usage. RCS shall not be held responsible for any
personal injury or property damage resulting from the
handling, storage or use of our product. The buyer
assumes all risks and liabilities therefrom and accepts
and uses AeroTech/RCS products on these conditions.
No warranty either expressed or implied is made
regarding AeroTech/RCS products, except for
replacement or repair, at RCS's option, of those
products which are proven to be defective in
manufacture within one year from the date of original
purchase. For repair or replacement under this
warranty, please contact RCS. Proof of purchase will be
required. Note: Your state may provide additional rights
not covered by this warranty.
Certified by the Tripoli Rocketry Association
Instructions P/N 21053 Rev. 9/5/18
©2013-2018 RCS Rocket Motor Components, Inc., All rights reserved
RMS-EZ™ HIGH-POWER
Reloadable Motor System™
Rocket Motor Reload Kit With Modular Bulkhead
Assembly & Operation Instructions
For RMS-38/480-1320 Motor Hardware
Note: Motor designation and complete performance specifications (including
sample time-thrust curve) are printed on the RMS-EZ packaging tube.
WARNING-FLAMMABLE: READ INSTRUCTIONS BEFORE USE. Use RMS
reload kits only in accordance with instructions. Sale to persons under 18 years
of age prohibited by federal law. For use only by certified users 18 years of age
or older. Ignite by electrical means only. Do not smoke when loading RMS motors
or use in the vicinity of open flames. CAUTION: Keep out of reach of children.
Metalstorm™ propellants produce showers of hot sparks. Clear launch area of all
combustible material for at least a 75 foot diameter radius around launcher.
Follow NAR & TRA safety codes at all times. Motor hot after firing.

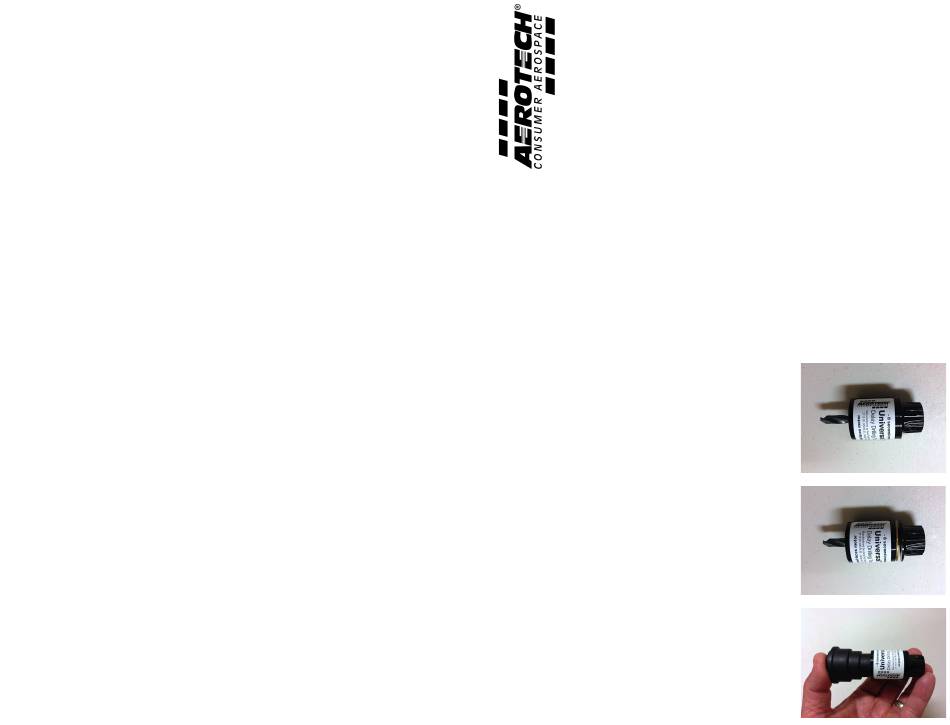

Setting the Time Delay
Note: If you want to use the longest (as-supplied) time
delay, do not use the delay drilling tool and instead
proceed with general motor assembly (inside pages).
1. WARNING: Do not smoke and ensure that there are
no open flames or heat sources nearby when setting the
time delay. Assemble the AeroTech Universal delay
drilling tool with the desired amount of delay time
removal (i.e., the - 4 or - 8 seconds removal marked on
the tool label) facing the exposed drill bit and modular
bulkhead ejection well.
2. Optional: Place the washer between the drill knob
and the tool if you want to remove 2 seconds less than
the value printed on the tool (i.e., - 2 or - 6 seconds
removal).
3. Place the open end of the tool over the motor
bulkhead, hold the tool and motor firmly against each
other and turn the drill knob several times clockwise until
the drill knob sits flush against the drill tool body.
4. Remove the tool and shake out the shavings from the
tool and motor bulkhead. Dispose of the shavings by
Made in U.S.A.
burning with a safe method and in a safe location.
DO NOT OPEN RELOAD KIT UNTIL READY TO USE
