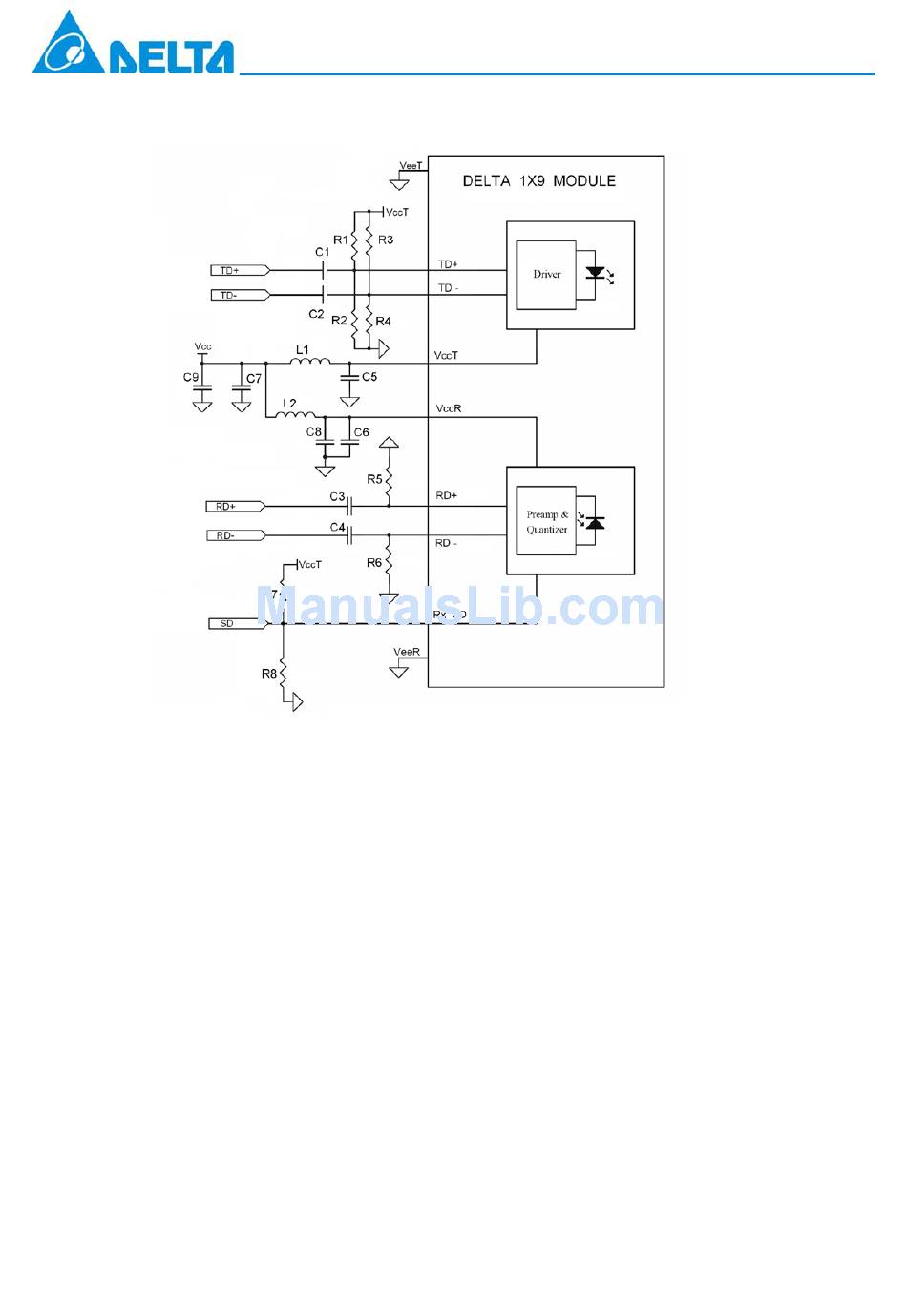

Recommend Circuit Schematic
R1=R3=82 ohm (3.3V),68 ohm(5V)
R2=R4=130 ohm (3.3V),191 ohm (5V)
R5=R6=150 ohm (3.3V),270 ohm (5V)
R7=130 ohm (3.3V PECL),82 ohm(5V),NC (TTL)
R8=82 ohm (3.3V PECL),130 ohm(5V),NC (TTL)
C1=C2=C3=C4=C5=C6=C7=100 nF
C8=C9=10uF
L1=L2=1uH
DELTA ELECTRONICS, INC.
4
OPT-622A1F1R
www.deltaww.com
Jan., 2008
Rev.：0D
