VENUS QuickGuide
VENUS QuickGuide
Thank you for choosing DAHENG IMAGING's
products! This guide will help you get started as
quickly as possible with our products. For more
information(e.g. detailed manuals, CAD/3D drawings,
driver software, etc.), please visit:
imaging.com/en

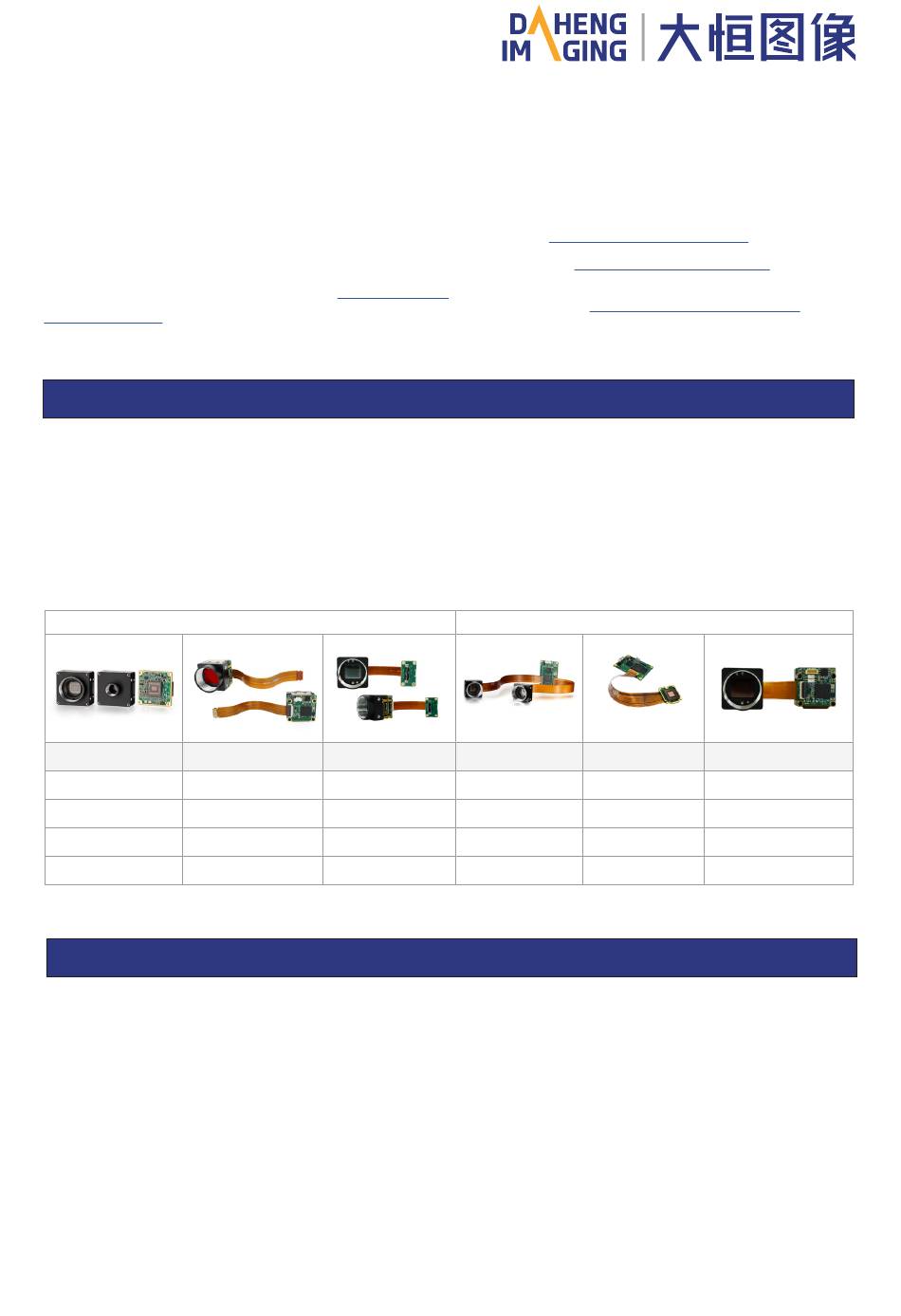

VENUS is DAHENG IMAGING's board level industrial digital camera. The cameras are available in a variety
of resolutions and frame rates, and are available with CMOS sensors from leading chip manufacturers, which
are easy to install and use.
VENUS board level cameras include two types: All-in-One and Split. Users can acquire images and configure
parameters with GalaxyView.
All-in-One Board Level Camera
USB3.0 (Micro B)
USB3.0 (Horizontal FPC)
VEN-042-121U3M/C
VEN-230-168U3M/C-FPC
VEN-161-61U3M/C
VEN-301-125U3M/C-FPC
VEN-505-36U3M/C
VEN-160-227U3M/C-FPC
VEN-830-22U3M/C
VEN-1220-32U3M/C-FPC
Guidelines for Avoiding EMI and ESD
■
USB cables certificated by USB IF with lock screw are recommended
■
Using shielded cable can avoid electro-magnetic interface. Shielding layer of the cable should conduct
to ground nearby and not until stretched too long. When many devices need conduct to ground, using
single point grounding to avoid earth loop
■
Keep your cameras away from equipment with high voltage, or high current (such as motor, inverter,
relay, etc.). If necessary, use additional shielding
■
ESD (electro-static discharge) may damage cameras permanently, so use suitable clothing (cotton)
and shoes, and touch the metal to discharge the electro-static before operating cameras
www.daheng-
I. Product Introduction
USB3.0 (Vertical FPC)
USB3.0 (Micro B)
VE2S-240-159U3M/C-S
VEN-134-90U3M/C-D
VE2S-301-125U3M/C-S
VEN-134-90U3M-D NIR
II. Precautions
China Daheng Group, Inc. Beijing Image Vision
Technology Branch
Website:
www.daheng-imaging.com/en
Sales Email:
isales@daheng-imaging.com
Sales Tel: +86 10 8282 8878
Support Email:
isupport@daheng-imaging.com
Split Board Level Camera
USB3.0 (Micro B)
VEN-302-56U3M/C-S VE2S-240-159U3M/C-S J150
VEN-503-36U3M/C-S VE2S-301-125U3M/C-S J150
USB3.0 (Vertical FPC)
1/4
