EVM User's Guide: TPS376XEVM
TPS376X Evaluation Module
Description
The TPS376XEVM is an evaluation module (EVM) for
the TPS3762-Q1 family of voltage supervisors. The
purpose of the this EVM is to provide a sample design
and test point for all input and output pins of the
TPS3762-Q1 device to capture measurements and
gain familiarity with the device.
SNVU864 – OCTOBER 2023
Submit Document Feedback
Features
•
Functional Safety-Compliant
– Developed for functional safety applications
•
Wide supply voltage range: 2.6 V to 65 V
•
Built-in self-test
•
Output RESET latching

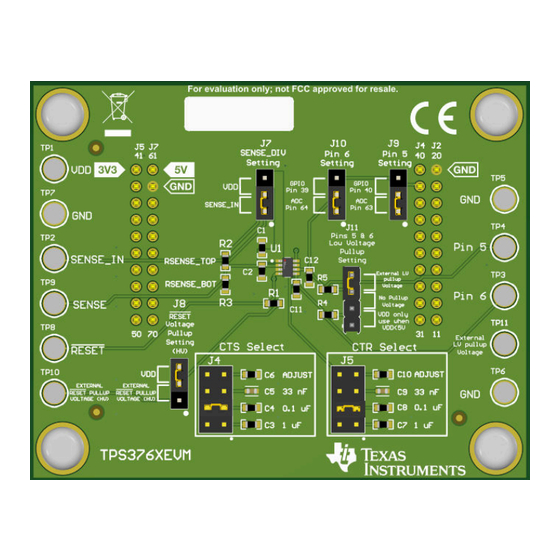

TPS376XEVM Board
Copyright © 2023 Texas Instruments Incorporated
Description
TPS376X Evaluation Module
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments TPS376X
Summary of Contents for Texas Instruments TPS376X
- Page 1 • Built-in self-test TPS3762-Q1 device to capture measurements and • Output RESET latching gain familiarity with the device. TPS376XEVM Board SNVU864 – OCTOBER 2023 TPS376X Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
-
Page 2: Kit Contents
TPS3762-Q1 variant. The TPS3762-Q1 family has built-in self-test functionality for voltages up to 65 V. The device also includes an optional reset output latching feature. TPS376X Evaluation Module SNVU864 – OCTOBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... -
Page 3: Pin Number
If a shunt jumper is connected to pins 1 & 2 of J8, then TP10 connects to RESET Pin 1 / J8 TP10 pullup (Used to set external RESET pull-up voltage). SNVU864 – OCTOBER 2023 TPS376X Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... - Page 4 J4. Refer to Section 2.1.1 for jumper connections and TPS3762-Q1 data sheet (SNVSCE6) for capacitor values and sense delay timings. TPS376X Evaluation Module SNVU864 – OCTOBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 5 Unmonitored SENSE BIST_recover RESET BIST_EN BIST_EN/LATCH_CLR BIST BIST Figure 3-1. BIST with RESET assertion RESET BIST_EN BIST Figure 3-2. BIST with RESET assertion waveform SNVU864 – OCTOBER 2023 TPS376X Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 6 Implementation Results www.ti.com SENSE RESET Figure 3-3. OV RESET Assertion waveform RESET LATCH_CLR Figure 3-4. RESET Unlatch waveform TPS376X Evaluation Module SNVU864 – OCTOBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 7 Hardware Design Files 4 Hardware Design Files 4.1 Schematics Figure 4-1. TPS376XEVM Schematic SNVU864 – OCTOBER 2023 TPS376X Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
-
Page 8: Pcb Layout
Figure 4-2. Component Placement - Top Assembly Figure 4-3. Component Placement - Bottom Assembly Figure 4-4. Layout - Top Figure 4-5. Layout - Bottom TPS376X Evaluation Module SNVU864 – OCTOBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... - Page 9 Hardware Design Files Figure 4-7. Bottom Layer Figure 4-6. Top Layer Figure 4-8. Top Solder Mask SNVU864 – OCTOBER 2023 TPS376X Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
-
Page 10: Bill Of Materials
