Custom Dynamics MAGIC-STROBES-UNV Installation Instructions

Part Number: MAGIC-STROBES-UNV

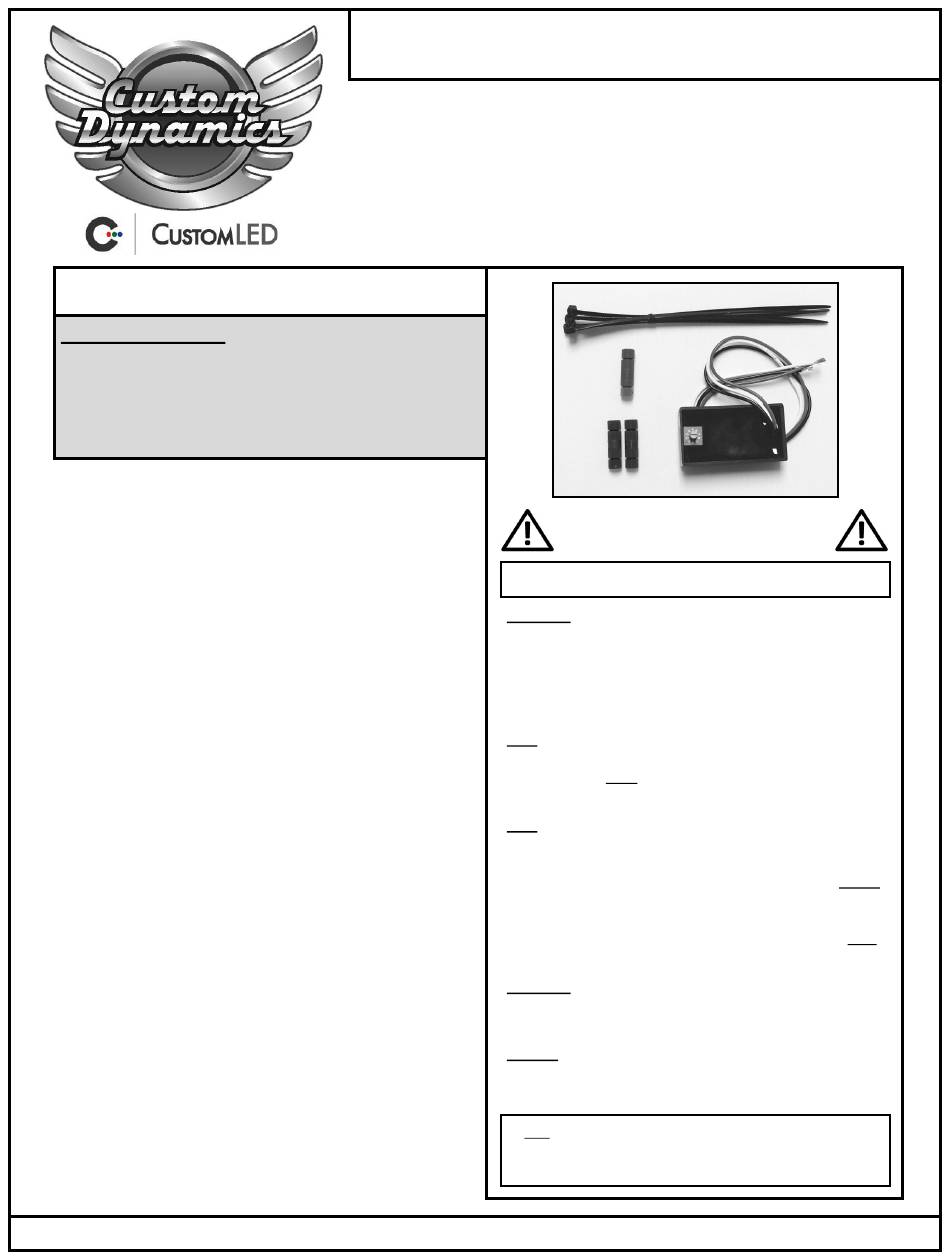

Package Contents:
- Magic Strobes™ Brake Flasher (1)
- Tie Wraps (5)
- Posi-Lock™ Connectors (2)
- Posi-Tap™ Connectors (1)
Installation
1. Secure motorcycle on level surface.
2. Remove seat or side panel to access wiring.
3. Disconnect negative [ - ] battery cable from the
battery.
4. Locate brake wire and cut in half
(see diagram on page 2).
5. Connect Red Wire to Input Side using Posi-
Lock™ .
6. Connect White Wire to Output (brake light) Side
using Posi-Lock™. (See instructions on page 2)
7. Connect Black Wire to Ground using Posi-Tap™.
(See instructions on page 2)
8. Re-connect the battery's negative battery
cable to the negative [ - ] of the battery.
9. Select Desired Pattern on the dial with power Off.
(See page 3 for Pattern Information)
10. Check Operation.
11. To change pattern, turn bike OFF and change
dial to desired pattern.
12. Locate a secure place for the Magic Strobes™
unit that will not interfere with the secure place-
ment of the seat. Secure with the enclosed tie-
wraps so that unit will not move.
Questions? Call us at: 1 (800) 382-1388
Custom Dynamics® Magic Strobes™ Brake Flasher
Installation Instructions
We thank you for purchasing the Custom Dynamics® Magic Strobes
Brake Light Flasher! Our products utilize the latest technology and
high quality components to ensure you the most reliable service. We
offer one of the best warranty programs in the industry and we back
our products with excellent customer support, if you have questions
before or during installation of this product please call Custom
Dynamics® at 1(800) 382-1388.
Important: Module must be secured after installation.
Find safe area away from any moving parts and out of the
way of normal operation of the bike. Use the enclosed tie-
wraps to secure. Custom Dynamics® is not liable for damage
as a result of improperly securing or failing to secure the
module.
Note: When using a Magic Strobe™ with a Signal Stabi-
lizer™ or other Load Equalizer we recommend installing the
Magic Strobe™ after (towards the taillight) the Signal Stabi-
lizer or Load Equalizer. (See Diagram on page 2)
Note : When using a Magic Brake Strobe™ with a Run-
Brake-Turn Controller, connect one of two ways:
-To flash both Brake and turns, Install Magic Strobe™ Before
Run-Brake-Turn Controller. (See Diagram on page 2)
-To flash only the center taillight, install Magic Strobe™ After
Run-Brake-Turn Controller. (See Diagram on page 2)
Important: Customers using this module with standard
incandescent bulbs should use patterns 0-3 only. Any other
settings selected will result in diminished performance.
Caution: A stuck brake switch may cause this unit to
overheat and fail . Unplug module immediately if this condi-
tion occurs.
Note: Although this device has been designed to significantly in-
crease your braking visibility, flash/strobe patterns may not be street
M-TH 8:30AM-5:30PM / FR 9:30AM-5:30PM EST
ATTENTION
Please read all Information below before Installation
legal in your area. This Device is not DOT approved.
08-2015SM
