Custom Dynamics MAGIC-STROBES-SS6 Installation Instructions

Part Number: MAGIC-STROBES-SS6
Package Contents:

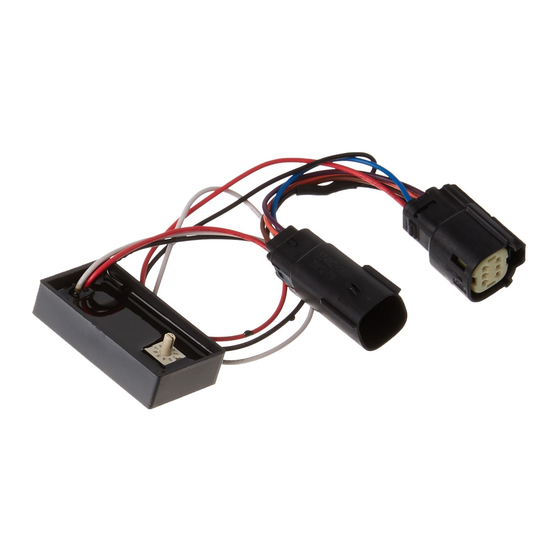

- Magic Strobes™ Brake Flasher (1)
- Tie Wraps (5)
Fits: 2010-13 Street Glide, 2010-2013 Road Glide Custom
Installation
1. Secure motorcycle on level surface.
2. Remove kickstand side panel to access wiring.
3. Disconnect negative [ - ] battery cable from
the battery.
4. Locate and unplug the lighting connector to the
rear fender.
5. Plug the Magic Strobes™ Module, in-line, into
the rear lighting harness and into the bike's
wiring harness.
6. Re-connect the battery's negative battery
cable to the negative [ - ] of the battery.
7. Select Desired Pattern on the dial with power
Off. (See page 2 for Pattern Information)
8. Check Operation.
9. To change pattern, turn bike OFF and change
dial to desired pattern.
10. Locate a secure place for the Magic Strobes™
unit that will not interfere with the secure
placement of the seat. Secure with the en-
closed tie-wraps so that unit will not move.
Questions? Call us at: 1 (800) 382-1388
Custom Dynamics® Magic Strobes™ Brake Flasher
Installation Instructions
We thank you for purchasing the Custom Dynamics® Magic Strobes
Brake Light Flasher! Our products utilize the latest technology and
high quality components to ensure you the most reliable service. We
offer one of the best warranty programs in the industry and we back
our products with excellent customer support, if you have questions
before or during installation of this product please call Custom
Dynamics® at 1(800) 382-1388.
Important: Module must be secured after installa-
tion. Find safe area away from any moving parts and
out of the way of normal operation of the bike. Use the
enclosed tie-wraps to secure. Custom Dynamics® is
not liable for damage as a result of improperly securing
or failing to secure the
module.
Note: When using a Magic Strobe™ with a Signal
Stabilizer™ or other Load Equalizer we recommend to
install the Magic Brake Strobe™ after (towards the
taillight) the Signal Stabilizer or Load Equalizer. (See
Diagram)
Important: Customers using this module with
standard incandescent bulbs should use patterns 0-3
only. Any other settings selected will result in dimin-
ished performance.
Caution: A stuck brake switch may cause this unit
to overheat and fail . Unplug module immediately if this
condition occurs.
Note: Although this device has been designed to significantly in-
crease your braking visibility, flash/strobe patterns may not be street
M-TH 8:30AM-5:30PM / FR 9:30AM-5:30PM EST
ATTENTION
Please read all Information below before Installation
legal in your area. This Device is not DOT approved.
08-2015SM
