Maple Systems MS1-U08L Quick Start Manual

MS1-U08L
Quick Start Guide
1. Overview
MS1-U08L Unmanaged Industrial Ethernet Switch is specially
designed to expand reliable Ethernet connectivity to
factory floors and outdoor environments with extreme
temperature and climatic conditions.
MS1-U08L is equipped with 8 x 10/100 RJ45 Ports enclosed in
IP30 housing which is not certified by UL .
2. Package Checklist
MS1-U08L is shipped with the following items*. If any of these
are missing or damaged, please contact your customer
service representative for assistance.
• MS1-U08L Switch x 1
• Quick Start Guide x 1
* Contents of the package can be adjusted based on customer demand.

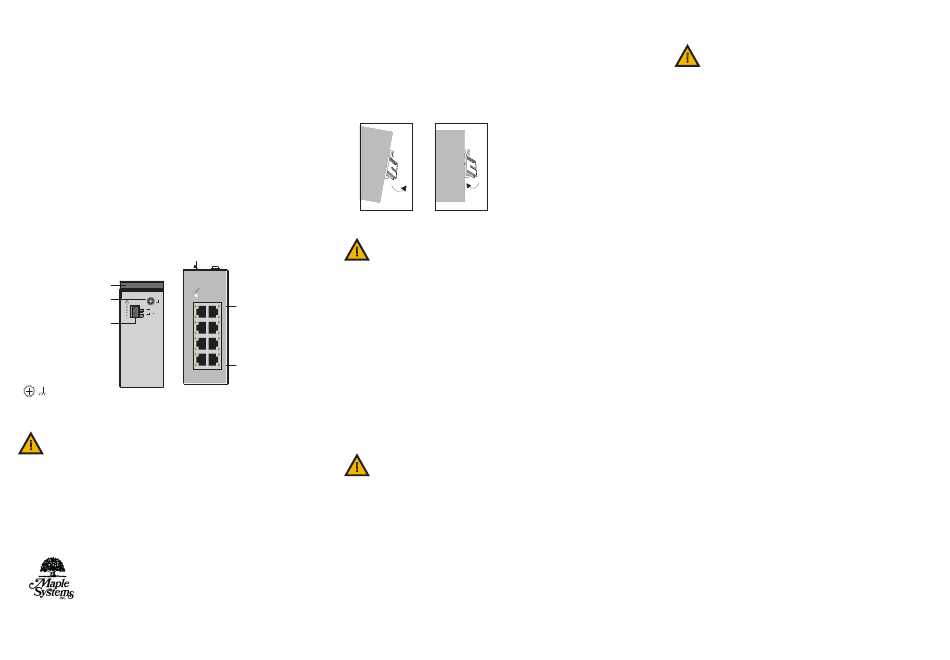

Panel view
PWR
DIN-Rail
Grounding
Screw
100M
+
PWR 1
Power Input
Terminal Block
3
5
7
LNK/ACT
Grounding Screw
Top View
Front View
3. Mounting and Dismounting to DIN-Rail
ATTENTION:
!
The MS1-U08L is an open type device and MS1-U08L
shall be DIN-Rail mounted or wall mounted (optional) in
cabinet or enclosure and the ambient temperature
should not exceed 167°F (75°C).
ATTENTION:
L'MS1-U08L est un appareil de type ouvert et l'MS1-U08L
doit être monté sur rail DIN ou fixé au mur (en option)
dans une armoire ou un boîtier et la température
ambiante ne doit pas dépasser 167°F (75°C).
For more information contact Maple Systems at:
email: sales@maplesystems.com
Tel.: (425) 745 3229
-1-
Mounting the switch
Place the MS1-U08L on the DIN rail from above using the slot, push
the front of the switch toward the mounting surface until it snaps
into place with a click sound.
Dismounting the switch
Press the switch from top and pull out the lower edge of the switch
and then remove the switch from the DIN rail.
Click
Mounting the Switch
ATTENTION:
!
A corrosion-free mounting rail is advisable.
When installing, make sure to allow for enough space
between devices to properly install the cabling. And
provide ample space for air flow.
100Mbps ATTENTION:
2
Un rail de montage sans corrosion est recommandé. Lors
de l'installation, assurez-vous de laisser suffisamment
4
d'espace entre les appareils pour installer correctement le
6
câblage. Et offrez suffisamment d'espace pour la circula-
tion de l'air.
8
LNK/ACT
4. Grounding the switch MS1-U08L
Grounding and wire routing help limit the effects of noise due to
electromagnetic interference (EMI). Run the ground connection
from the ground screw to the grounding surface prior to
connecting devices.
ATTENTION:
!
This product is intended to be mounted to a
well-grounded mounting surface such as a metal panel.
ATTENTION:
Ce produit est destiné à être monté sur une surface de
montage bien mise à la terre telle qu'un panneau
métallique.
Removing the Switch
-2-
5. Wiring requirements
WARNING:
!
Safety measures should be taken before connecting the
power cable. Turn off the power before
connecting modules or wires. The correct power
supply voltage is listed on the product label. Check
the voltage of your power source to make sure that you
are using the correct voltage. DO NOT use a voltage
greater than what is specified on the product label.
Calculate the maximum possible current in each power
wire and common wire. Observe all electrical codes
dictating the maximum current allowable for each
wire size. If current exceeds the maximum rating, the
wiring can overheat causing serious damage to your
equipment.
AVERTISSEMENT:
Des mesures de sécurité doivent être prises avant de
brancher le câble d'alimentation. Coupez l'alimentation
avant de connecter des modules ou des fils. La tension
d'alimentation correcte est indiquée sur l'étiquette du
produit. Vérifiez la tension de votre source
d'alimentation pour vous assurer que vous utilisez la
bonne tension. NE PAS utiliser une tension supérieure à
celle indiquée sur l'étiquette du produit. Calculez le
courant maximum possible dans chaque fil
d'alimentation et fil commun. Respectez tous les codes
électriques dictant le courant maximum autorisé pour
chaque taille de fil. Si le courant dépasse la valeur
nominale maximale, le câblage peut surchauffer et
endommager gravement votre équipement.
Please read and follow these guidelines:
• Use separate paths to route wiring for power and devices. If
power wiring and device wiring paths must cross make sure the
wires are perpendicular at the intersection point.
NOTE: Do not run signal or communications wiring and power
wiring through the same wire conduit. To avoid interference,
wires with different signal characteristics should be
routed separately.
• You can use the type of signal transmitted through a wire to
determine which wires should be kept separate. The rule of
thumb is that wiring that shares similar electrical characteristics
can be bundled together.
• You should separate input wiring from output wiring.
• We advise that you label the wiring to all devices in the system.
