1. Overview
The MS1-L08G Lite-Managed Industrial Ethernet Switch is
designed for harsh environments to withstand vibration, shock,
free fall, power surges. The switch is easy to set-up and
supports the critical software features required in factory
automation systems such as multi-axis robots and their
peripherals (PLC's, HMI's, and legacy devices).
includes 8-port 10/100/1000Mbps RJ45 downlink ports.
2. Package Checklist
The switch is shipped with the following items*.
If any of these are missing or damaged, please contact your customer
service representative for assistance.
• MS1-L08G Switch x 1
• Quick Start Guide x 1
*Contents of the package can be adjusted based on customer demand.

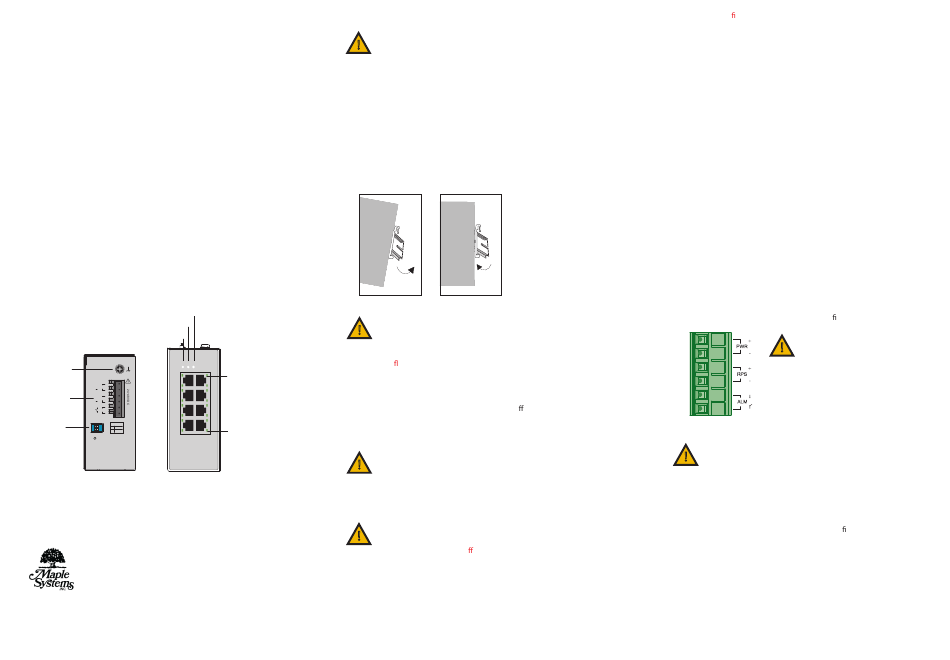

Panel view
ALM
RPS
PWR
Grounding
PWR RPS ALM
Screw
1000
1
+
PWR
Power Input
+ 3
Terminal Block
RPS
ALM 5
OFF ON
DIP Switches
ALM 7
1
1 PWR
2
LNK/
2 RPS
ACT
Reset
Top View Front View
For more information contact Maple Systems at:
email: sales@maplesystems.com
Tel.: (425) 745 3229
-1-
3. Mounting and Dismounting to DIN-Rail
ATTENTION:
!
The Switch is an open type device and shall be DIN-Rail
mounted or wall mounted (optional) in the cabinet and
the ambient temperature should not exceed the operating
temperature.
Mounting the switch
Place the switch on the DIN-Rail from above using the slot, push the
front of the switch toward the mounting surface until it snaps into
place with a click sound.
The switch
Dismounting the switch
Press the switch from top and pull out the lower edge of the switch
and then remove the switch from the DIN-Rail.
Mounting the Switch
ATTENTION:
!
A corrosion-free mounting rail is advisable. When installing,
make sure to allow for enough space between devices to
properly install the cabling. And provide ample space for
air ow.
1000Mbps
(Green)
2
4. Grounding the switch
4
Grounding and wire routing help limit the e ects of noise due to
6
electromagnetic interference (EMI). Run the ground connection from
8
the ground screw to the grounding surface prior to connecting
LNK/ACT
(Green)
devices.
ATTENTION:
!
This product is intended to be mounted to a well-grounded
mounting surface such as a metal panel.
5. Wiring requirements
WARNING:
!
Safety measures should be taken before connecting the
power cable. Turn o
modules or wires. The correct power supply voltage is
listed on the product label. Check the voltage of your
power source to make sure that you are using the correct
voltage. DO NOT use a voltage greater than what is
Click
Removing the Switch
the power before connecting
-2-
speci ed on the product label. Calculate the maximum
possible current in each power wire and common wire.
Observe all electrical codes dictating the maximum
current allowable for each wire size. If current exceeds
the maximum rating, the wiring can overheat causing
serious damage to your equipment.
Please read and follow these guidelines:
• Use separate paths to route wiring for power and devices. If
power wiring and device wiring paths must cross make sure the
wires are perpendicular at the intersection point.
NOTE: Do not run signal or communications wiring and power
wiring through the same wire conduit. To avoid interference,
wires with different signal characteristics should be routed
separately.
• You can use the type of signal transmitted through a wire to
determine which wires should be kept separate. The rule of
thumb is that wiring that shares similar electrical characteristics
can be bundled together.
• You should separate input wiring from output wiring.
• We advise that you label the wiring to all devices in the system.
5.1 Wiring Power Input
5.1.1 The Switch with terminal block
You can use "PWR" for Primary Power input and "RPS" for Redundant
Power Input. Check the polarity while connecting.
Top view of Terminal Block is shown in the gure below:
!
Caution:
• Use copper conductors only
• Wiring cable temperature should
support at least 221˚F (105°C)
• Tighten the wire to a torque value 5lb
• The wire gauge for the terminal block
Terminal Block
should range between 12~24 AWG
MISE EN GARDE:
!
• Utilisez uniquement des conducteurs en cuivre
• La température maximale du câble ne doit pas dépasser
221˚F (105˚C)
• Serrer le fil à une valeur de couple de 5lb
• Le calibre de fil du bornier doit être compris entre 12
et 24 AWG
To insert power wire and connect the speci ed voltage range at a
maximum of 0.35A DC power to the power terminal block, follow
the steps below:
1. Use a flat-head screwdriver to loosen the wire-clamp screws
2. Insert the negative/positive DC wires into the PWR-/PWR+
terminals, respectively
3. Tighten the wire-clamp screws to prevent the wires from loosening.
