Maple Systems MS1-U16G Quick Start Manual

MS1-U16G
Quick Start Guide
1. Overview
The MS1-U16G is an Unmanaged Industrial Switch specifically
designed to suit your heavy industrial environments and contains
all necessary standard features to deploy in automation systems.
MS1-U16G is equipped with 16x10/100/1000 Base-T ports enclosed
in IP30 housing. The IP30 housing is not certified by UL.
2. Package Checklist
MS1-U16G is shipped with the following items*. If any of these
are missing or damaged, please contact your customer
service representative for assistance.
• MS1-U16G Switch x 1
• Quick Start Guide x 1
* Contents of the package can be adjusted based on customer demand.

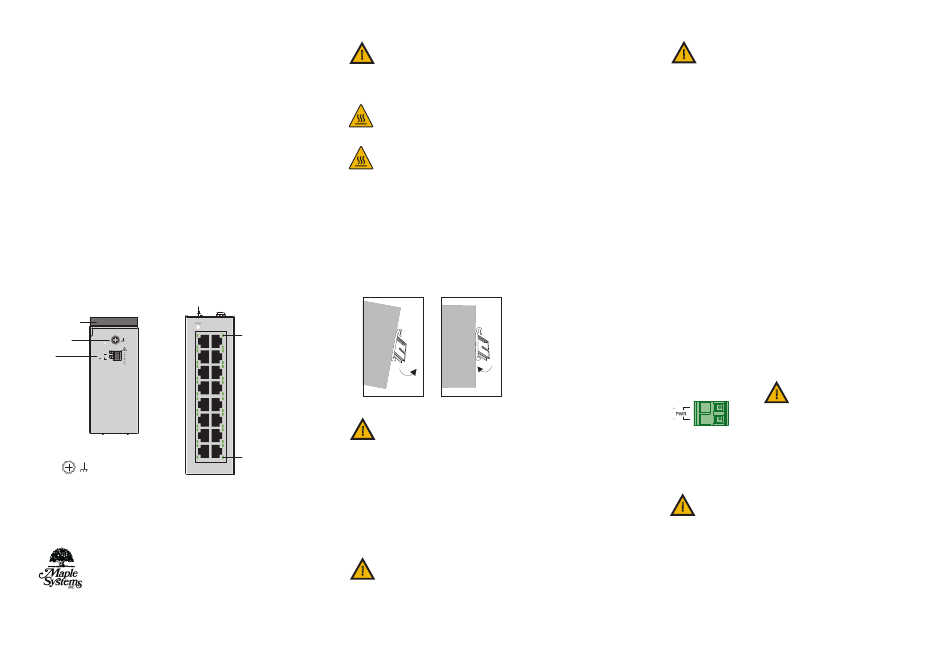

Panel view
PWR
DIN-Rail
Grounding
Screw
Reset
Power Input
+
Terminal Block
PWR
Top View
Grounding Screw
For more information contact Maple Systems at:
email: sales@maplesystems.com
Tel.: (425) 745 3229
-1-
3. Mounting and Dismounting to DIN-Rail
!
Mounting the switch
Place the MS1-U16G on the DIN rail from above using the slot, push
the front of the switch toward the mounting surface until it snaps
into place with a click sound.
Dismounting the switch
Press the switch from top and pull out the lower edge of the switch
and then remove the switch from the DIN rail.
1000 1000Mbps
1 2
3 4
5 6
7 8
Mounting the Switch
9 10
11 12
!
13 14
15 16
LNK/ACT
LNK/
ACT
Front View
4. Grounding the switch MS1-U16G
Grounding and wire routing help limit the effects of noise due to
electromagnetic interference (EMI). Run the ground connection
from the ground screw to the grounding surface prior to connecting
devices.
!
ATTENTION:
The MS1-U16G is an open type device and MS1-U16G
shall be DIN-Rail mounted or wall mounted (optional) in
cabinet or enclosure and the ambient temperature
should not exceed 167°F (75°C).
CAUTION:
HOT surface do not touch. Wear protective equipment
before coming into contact.
MISE EN GARDE
Surface chaude, ne pas toucher. Portez un équipement
de protection avant d'entrer en contact.
Click
Removing the Switch
ATTENTION:
A corrosion-free mounting rail is advisable.
When installing, make sure to allow for enough space
between devices to properly install the cabling. And
provide ample space for airflow.
ATTENTION:
This product is intended to be mounted to a
well-grounded mounting surface such as a metal panel.
-2-
5. Wiring requirements
WARNING:
!
Safety measures should be taken before connecting the
power cable. Turn off the power before connecting
modules or wires. The correct power supply voltage is
listed on the product label. Check the voltage of your
power source to make sure that you are using the correct voltage.
DO NOT use a voltage greater than what is specified on
the product label. Calculate the maximum possible current in
each power wire and common wire. Observe all electrical
codes dictating the maximum current allowable for each wire
size. If current exceeds the maximum rating, the wiring can
overheat causing serious damage to your equipment.
Please read and follow these guidelines:
• Use separate paths to route wiring for power and devices. If
power wiring and device wiring paths must cross make sure the
wires are perpendicular at the intersection point.
NOTE: Do not run signal or communications wiring and power
wiring through the same wire conduit. To avoid interference, wires
with different signal characteristics should be routed separately.
• You can use the type of signal transmitted through a wire to
determine which wires should be kept separate. The rule of
thumb is that wiring that shares similar electrical characteristics
can be bundled together.
• You should separate input wiring from output wiring.
• We advise that you label the wiring to all devices in the system.
5.1 Wiring Power Input
You can use "PWR" for power input.
Top view of Terminal Block is shown in the figure below:
!
12~48VDC
Caution:
• Use copper conductors only
Terminal Block • To use wiring cable with rated temperature
at least 221°F (105°C)
Tighten the wire to a torque value
•
4,5lb.in
• The wire gauge for the terminal block
should range between 12~24 AWG
MISE EN GARDE:
!
• Utilisez uniquement des conducteurs en cuivre
• Utiliser un câble de câblage à température nominale
au moins 221°F (105°C)
• Serrer le fil à une valeur de couple de 4,5lb.in
• Le calibre de fil du bornier doit être compris entre 12
et 24 AWG
-3-
