Maple Systems MS1-P05G Quick Start Manual

MS1-P05G
Quick Start Guide
1. Overview
MS1-P05G Unmanaged Industrial Ethernet Switch is specially
designed to expand reliable Ethernet connectivity to factory
floors and outdoor environments with extreme temperature and
climatic conditions. MS1-P05G is equipped with 5 x 10/100/1000
RJ45 Ports enclosed in IP30 housing (not certified by UL).
2. Package Checklist
MS1-P05G is shipped with the following items*. If any of these
are missing or damaged, please contact your customer
service representative for assistance.
• MS1-P05G Switch x 1
• Quick Start Guide x 1
*Contents of the package can be adjusted based on customer demand.

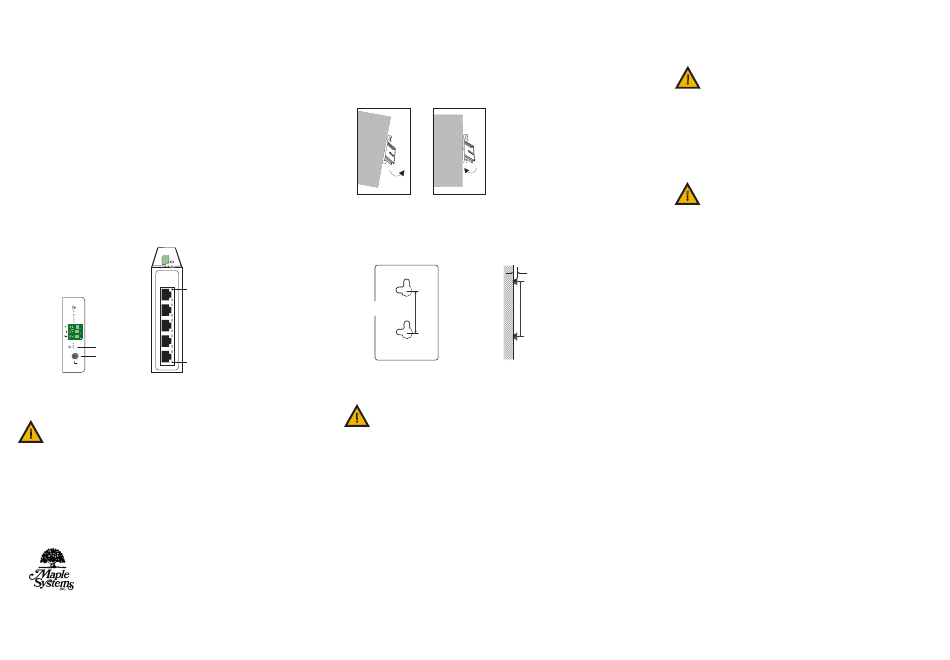

Panel view
1000
1000Mbps
1
2
3
4
Power
Grounding
5
LNK/ACT
Screw
LNK/ACT
Top View Front View
3. Mounting and Dismounting to DIN-Rail
ATTENTION:
!
The MS1-P05G is an open type device and MS1-P05G shall
be DIN-Rail mounted or wall mounted (optional)
in cabinet or enclosure and the ambient
temperature should not exceed 167°F (75°C).
ATTENTION:
L'MS1-P05G est un appareil de type ouvert et l'MS1-P05G
doit être monté sur rail DIN ou fixé au mur (en option)
dans une armoire ou un boîtier et la température
ambiante ne doit pas dépasser 167°F (75°C).
For more information contact Maple Systems at:
email: sales@maplesystems.com
Tel.: (425) 745 3229
-1-
Mounting the switch
Place the MS1-P05G on the DIN rail from above using the slot,
push the front of the switch toward the mounting surface until it
snaps into place with a click sound.
Dismounting the switch
Press the switch from top and pull out the lower edge of the
switch and then remove the switch from the DIN-Rail.
Click
Mounting the Switch Removing the Switch
Wall-Mounted Mask of MS1-P05G
Step1: Place this device by using mounting holes on the wall at
the appropriate place.
1.5mm ~ 3mm
Moun�ng holes for
50mm
50mm
INS-8405E
Moun�ng holes drawing of MS1-P05G Screw installa�on Distance
Step2: The wall-mount direction can be straight or horizontal.
ATTENTION:
!
A corrosion-free mounting rail is advisable.
When installing, make sure to allow for enough space
between devices to properly install the cabling. And
provide ample space for airflow.
ATTENTION:
Un rail de montage sans corrosion est recommandé. Lors
de l'installation, assurez-vous de laisser suffisamment
d'espace entre les appareils pour installer correctement le
câblage. Et offrez suffisamment d'espace pour la circula-
tion de l'air.
4. Grounding the switch MS1-P05G
Grounding and wire routing help limit the effects of noise due
to electromagnetic interference (EMI).
-2-
Step 1: Run the ground connection from the ground screw to the
grounding surface prior to connecting devices.
Step 2: Connect the ground connection from the terminal block to
the grounding surface prior to connecting device.
ATTENTION:
!
This product is intended to be mounted to a
well-grounded mounting surface such as a metal panel.
ATTENTION:
Ce produit est destiné à être monté sur une surface de
montage bien mise à la terre telle qu'un panneau
métallique.
5. Wiring requirements
WARNING:
Safety measures should be taken before connecting the
!
power cable. Turn off the power before connecting
modules or wires. The correct power supply voltage is
listed on the product label. Check the voltage of your
power source to make sure that you are using the correct
voltage. DO NOT use a voltage greater than what is
specified on the product label. Calculate the maximum
possible current in each power wire and common wire.
Observe all electrical codes dictating the maximum
current allowable for each wire size. If current exceeds
the maximum rating, the wiring can overheat causing
serious damage to your equipment.
AVERTISSEMENT:
Des mesures de sécurité doivent être prises avant de
brancher le câble d'alimentation. Coupez l'alimentation
avant de connecter des modules ou des fils. La tension
d'alimentation correcte est indiquée sur l'étiquette du
produit. Vérifiez la tension de votre source
d'alimentation pour vous assurer que vous utilisez la
bonne tension. NE PAS utiliser une tension supérieure à
celle indiquée sur l'étiquette du produit. Calculez le
courant maximum possible dans chaque fil
d'alimentation et fil commun. Respectez tous les codes
électriques dictant le courant maximum autorisé pour
chaque taille de fil. Si le courant dépasse la valeur
nominale maximale, le câblage peut surchauffer et
endommager gravement votre équipement.
Please read and follow these guidelines:
• Use separate paths to route wiring for power and devices. If
power wiring and device wiring paths must cross make sure the
wires are perpendicular at the intersection point.
NOTE: Do not run signal or communications wiring and power
wiring through the same wire conduit. To avoid interference,
wires with different signal characteristics should be
routed separately.
-3-
