MS1-U05L
Quick Start Guide
1. Overview
MS1-U05L Unmanaged Industrial Ethernet Switch is specially
designed to expand reliable Ethernet connectivity to factory
oors and outdoor environments with extreme temperature and
climatic conditions.
MS1-U05L is equipped with 5 x 10/100 RJ45 Ports enclosed in
IP30 housing (not certified by UL).
2. Package Checklist
MS1-U05L is shipped with the following items*. If any of these
are missing or damaged, please contact your customer service
representative for assistance.
• MS1-U05L Switch x 1
• Quick Start Guide x 1
*Contents of the package can be adjusted based on customer demand.

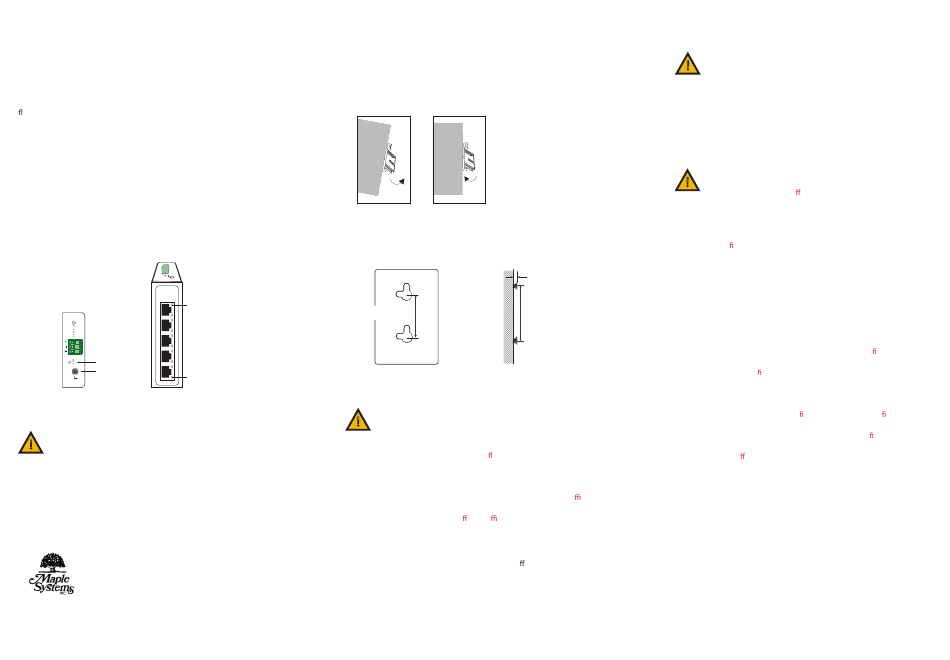

Panel view
100
100Mbps
1
2
3
4
Power
Grounding
5
LNK/ACT
Screw
LNK/ACT
Top View Front View
3. Mounting and Dismounting to DIN-Rail
ATTENTION:
!
The MS1-U05L is an open type device and MS1-U05L
shall be DIN-Rail mounted or wall mounted (optional) in
cabinet or enclosure and the ambient temperature
should not exceed 167°F (75°C).
ATTENTION:
L'MS1-U05L est un appareil de type ouvert et l'MS1-U05L
doit être monté sur rail DIN ou fixé au mur (en option)
dans une armoire ou un boîtier et la température
ambiante ne doit pas dépasser 167°F (75°C).
For more information contact Maple Systems at:
email: sales@maplesystems.com
Tel.: (425) 745 3229
-1-
Mounting the switch
Place the MS1-U05L on the DIN rail from above using the slot, push
the front of the switch toward the mounting surface until it snaps
into place with a click sound.
Dismounting the switch
Press the switch from top and pull out the lower edge of the
switch and then remove the switch from the DIN rail.
Click
Mounting the Switch Removing the Switch
Wall-Mounted Mask of MS1-U05L
Step1: Place this device by using mounting holes on the wall at
the appropriate place.
1.5mm ~ 3mm
Moun�ng holes for
50mm
50mm
INS-8405E
Moun�ng holes drawing of MS1-U05L Screw installa�on Distance
Step2: The wall-mount direction can be straight or horizontal.
ATTENTION:
!
A corrosion-free mounting rail is advisable.
When installing, make sure to allow for enough space
between devices to properly install the cabling. And
provide ample space for air ow.
ATTENTION:
Un rail de montage sans corrosion est recommandé.
Lors de l'installation, assurez-vous de laisser su sam-
ment d'espace entre les appareils pour installer correcte-
ment le câblage. Et o rez su samment d'espace pour la
circulation de l'air.
4. Grounding the switch MS1-U05L
Grounding and wire routing help limit the e ects of noise due to
electromagnetic interference (EMI).
Step 1: Run the ground connection from the ground screw to the
grounding surface prior to connecting devices.
-2-
Step 2: Connect the ground connection from the terminal block to
the grounding surface prior to connecting device.
ATTENTION:
!
This product is intended to be mounted to a
well-grounded mounting surface such as a metal panel.
ATTENTION:
Ce produit est destiné à être monté sur une surface de
montage bien mise à la terre telle qu'un panneau
métallique.
5. Wiring requirements
WARNING:
!
Safety measures should be taken before connecting the
power cable. Turn o the power before connecting
modules or wires. The correct power supply voltage is
listed on the product label. Check the voltage of your
power source to make sure that you are using the correct
voltage. DO NOT use a voltage greater than what is
speci ed on the product label. Calculate the maximum
possible current in each power wire and common wire.
Observe all electrical codes dictating the maximum
current allowable for each wire size. If current exceeds
the maximum rating, the wiring can overheat causing
serious damage to your equipment.
AVERTISSEMENT:
Des mesures de sécurité doivent être prises avant de
brancher le câble d'alimentation. Coupez l'alimentation
avant de connecter des modules ou des ls. La tension
d'alimentation correcte est indiquée sur l'étiquette du
produit. Véri ez la tension de votre source d'alimentation
pour vous assurer que vous utilisez la bonne tension. NE
PAS utiliser une tension supérieure à celle indiquée sur
l'étiquette du produit. Calculez le courant maximum
possible dans chaque l d'alimentation et l commun.
Respectez tous les codes électriques dictant le courant
maximum autorisé pour chaque taille de l. Si le courant
dépasse la valeur nominale maximale, le câblage peut
surchau er et endommager gravement votre équipe-
ment.
Please read and follow these guidelines:
• Use separate paths to route wiring for power and devices. If
power wiring and device wiring paths must cross make sure the
wires are perpendicular at the intersection point.
NOTE: Do not run signal or communications wiring and power
wiring through the same wire conduit. To avoid interference,
wires with different signal characteristics should be routed
separately.
• You can use the type of signal transmitted through a wire to
determine which wires should be kept separate. The rule of
thumb is that wiring that shares similar electrical characteristics
can be bundled together.
-3-
