Maple Systems MS1-P08G Quick Start Manual

MS1-P08G
Quick Start Guide
1. Overview
MS1-P08G Premium Unmanaged Industrial Ethernet Switch is
specially designed to expand reliable Ethernet connectivity to
factory floors and outdoor environments with extreme temperature and
climatic conditions.
MS1-P08G is equipped with 8 x 10/100/1000Mbps RJ45 Ports
enclosed in an IP30 housing (not certified by UL).
2. Package Checklist
The switch is shipped with the following items*.
If any of these are missing or damaged, please contact your
customer service representative for assistance.
• MS1-P08G Switch x 1
• Quick Installation Guide x 1
*Contents of the package can be adjusted based on customer demand.

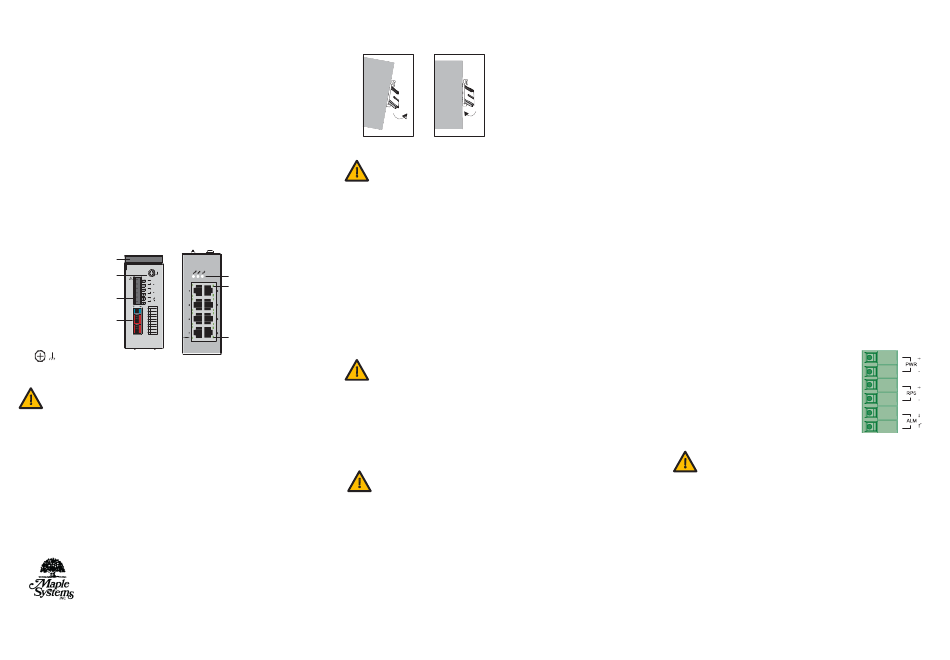

Panel view
DIN-Rail
Grounding
Screw
Power Input
Terminal Block
AL M
AL M
2
RP S
P1
3
DIP Switches
4
5 5 P3
6
6 P4
7 P5
7
8 8 P6
9
9 P7 +
10
10 P 8 PWR
+
RP S
Grounding Screw
1000
Top View Front View
1 PWR
1
P2
3. Mounting and Dismounting to DIN-Rail
ATTENTION:
The MS1-P08G is an open type device and shall be
DIN-Rail mounted or wall mounted
the cabinet and the ambient temperature should not
exceed the operating temperature.
ATTENTION:
L'MS1-P08G est un appareil de type ouvert et doit être
monté sur rail DIN ou fixé au mur (en option) dans
l'armoire et la température ambiante ne doit pas dépass- er la
température de fonctionnement.
Mounting the switch
Place the switch on the DIN rail from above using the slot and push the
front of the switch toward the mounting surface until it snaps into
place with a click sound.
For more information contact Maple Systems at:
email: sales@maplesystems.com
Tel.: (425) 745 3229
-1-
Dismounting the switch
Press the switch from the top and pull out the lower edge of the
switch, then remove the switch from the DIN rail.
Click
Mounting the Switch
ATTENTION:
A corrosion-free mounting rail is advisable.
When installing, make sure to allow for enough space
between devices to properly install the cabling. And
provide ample space for air flow.
ATTENTION:
Un rail de montage sans corrosion est recommandé.
Lors de l'installation, assurez-vous de laisser suffisamment
d'espace entre les appareils pour installer correctement le
PWR
câblage. Et offrez suffisamment d'espace pour la circula- tion
RPS
ALM
de l'air.
1000Mbps
4. Grounding the switch
Grounding and wire routing help limit the effects of noise due to
electromagnetic interference (EMI). Run the ground connection from
the ground screw to the grounding surface prior to connecting devices.
LNK/ACT
ATTENTION:
This product is intended to be mounted to a
well-grounded mounting surface such as a metal panel.
ATTENTION:
Ce produit est destiné à être monté sur une surface de
(optional) in
montage bien mise à la terre telle qu'un panneau
métallique.
5. Wiring requirements
WARNING:
Safety measures should be taken before connecting the
power cable. Turn off the power before connecting
modules or wires. The correct power supply voltage is
listed on the product label. Check the voltage of
yourpower source to make sure that you are using the
correct voltage. DO NOT use a voltage greater than what is
specified on the product label. Calculate the maximum
possible current in each power wire and common wire.
Observe all electrical codes dictating the maximum
current allowable for each wire size. If current exceeds the
maximum rating, the wiring can overheat causing serious
damage to your equipment.
Removing the Switch
-2-
AVERTISSEMENT:
Des mesures de sécurité doivent être prises avant de
brancher le câble d'alimentation. Coupez l'alimentation
avant de connecter des modules ou des fils. La tension
d'alimentation correcte est indiquée sur l'étiquette du
produit. V érifiez la tension de votre source d'alimentation pour
vous assurer que vous utilisez la bonne tension. NE PAS
utiliser une tension supérieure à celle indiquée sur PAS
utiliser une tension supérieure à celle indiquée sur l'étiquette
du produit. Calculez le courant maximum possible dans
chaque fil d'alimentation et fil commun. Respectez tous les
codes électriques dictant le courant maximum autorisé pour
chaque taille de fil. Si le courant dépasse la valeur nominale
maximale, le câblage peut surchauffer et endommager
gravement votre équipe- ment.
Please read and follow these guidelines:
• Use separate paths to route wiring for power and devices. If
power wiring and device wiring paths must cross make sure the wires
are perpendicular at the intersection point.
NOTE: Do not run signal or communications wiring and power
wiring through the same wire conduit. To avoid interference, wires
with different signal characteristics should be routed separately.
• You can use the type of signal transmitted through a wire to
determine which wires should be kept separate. The rule of
thumb is that wiring that shares similar electrical characteristics can be
bundled together.
• You should separate input wiring from output wiring.
• We advise that you label the wiring to all devices in the system.
5.1 Wiring Power Input
5.1.1 The switch with terminal block
You can use "PWR" for Primary Power input and
"RPS" for Redundant Power Input. Check the
polarity while connecting.
Top view of Terminal Block is shown in the
figure right:
Caution:
• Use copper conductors only
• Wiring cable temperature should support at least 221˚F (105˚C)
• Tighten the wire to a torque value 5lb
• The wire gauge for the terminal block should range
between 12~24 AWG
ATTENTION:
• Utilisez uniquement des conducteurs en cuivre
• La température du câble de câblage doit supporter au
moins 221˚F (105°C)
• Serrer le fil à une valeur de couple de 5lb
• Le calibre du fil pour le bornier doit être compris entre 12 et
24 AWG
-3-
Terminal Block
