Summary of Contents for Discount Car Stereo BT3-CHRY02

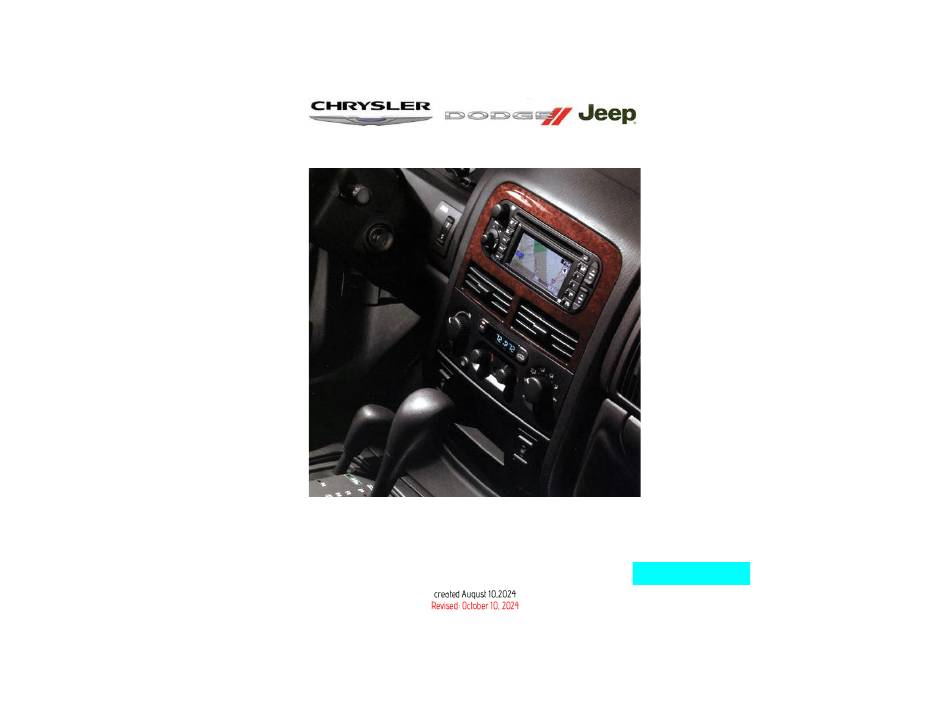

- Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 BT3-CHRY02 QUICK START BLUETOOTH INSTALL GUIDE FOR 2002-08 CHRYSLER RADIOS WITH MODE BUTTON...
-
Page 2: Installation
Introduction- Many with older cars looking for a simply way to play audio devices without replacing the radio will be pleased to find this solution. The BT3-CHRY02 module provides a Bluetooth solution for Smartphone, Kindle, Tablet with HPF and A2DP profiles. - Page 3 Fig. 3 Fig. 6 USB cable Fig.4 Optional USB extension cable installation Note: 1. Optional 6 ft. dash mount USB extension cable is not required for operation, Fig. 7 however it extends the built-in USB charging port (See Fig. 7) to dashboard, glovebox etc.
-
Page 4: Bluetooth Operation
Pairing Bluetooth operation Pairing process varies among devices but basic steps are the same. This process is Turn ignition to “ACC” and turn the radio ON done upon initial install and will not have to be repeated each time you enter/exit 2. - Page 5 Frequent ask questions & troubleshooting Will the BT3-CHRY02 work on all radios with 10-pin connector? the Chrysler, Jeep & Dodge radio must have a 10-pin connector, a “MODE” or “CD AUX” button in addition to DISC up/DISC down on presets 1 and 5 on the radio faceplate or as seen in Fig.
- Page 6 •We recommend professional installation Email support@discountcarstereo.com © 1995-Oct-24 Discount Car Stereo, Inc. All rights reserved. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.
