ASSEMBLY AND INSTALLATION
T0786
W
WARNING:
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.

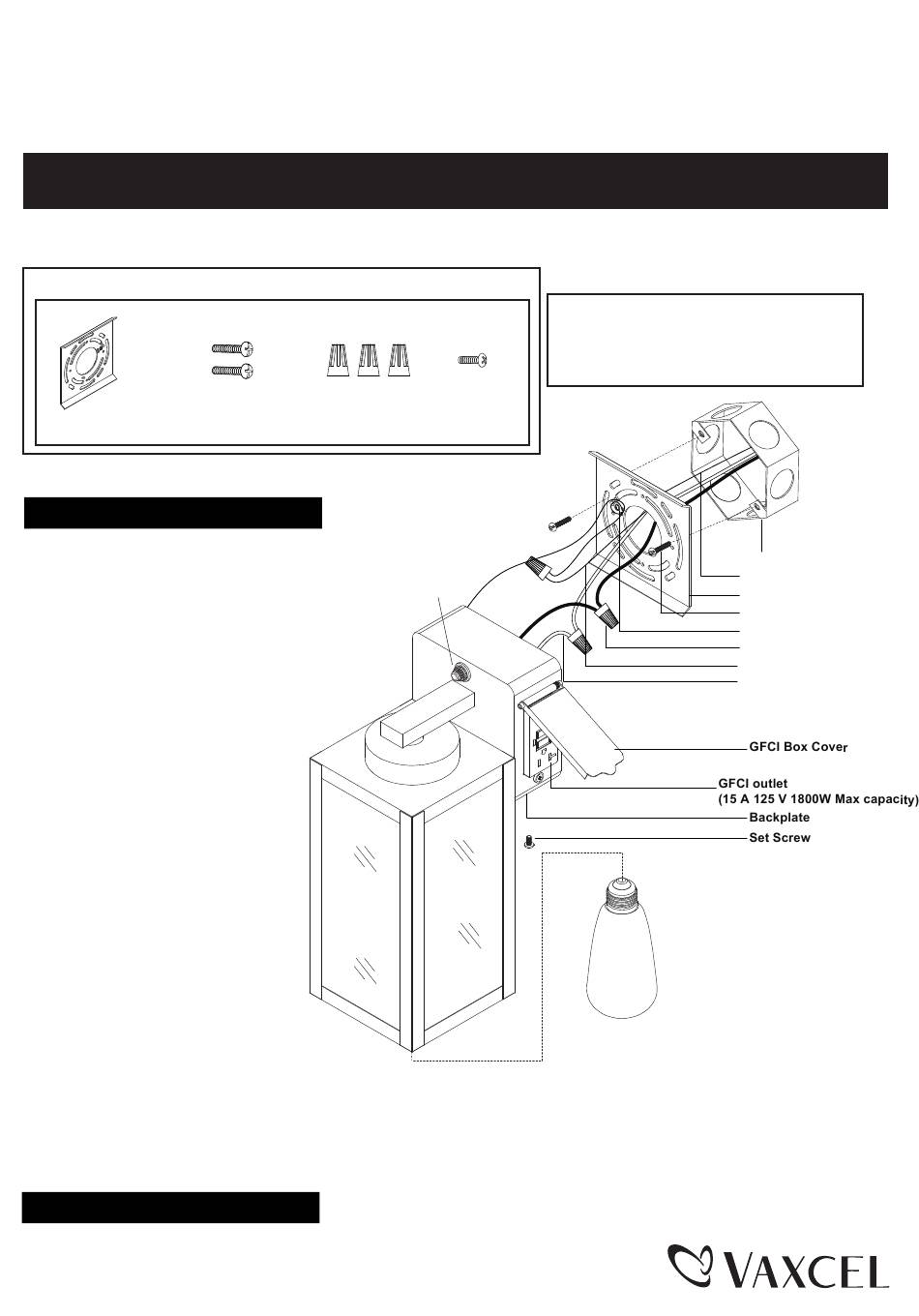

Hardware Package (included):
Mounting Plate Unit (A) Mounting Screw (B)
Installation Steps
Turn off the power at fuse or circuit box.
1. Unscrew the set screw (D) and the mounting
plate unit (A) from the backplate.
2. Attach the mounting plate unit (A) to the outlet
box by using two mounting screws (B).
3. Pull out the source wires from the outlet box.
Make wire connections using wire connectors (C)
as follows:
• Connect the hot wires (black insulation)
from the fixture to the black wire
from the power source.
• Connect the neutral wires
(white insulation) from the fixture
to the white wire from the power
source.
• Attach the fixture ground wire
(bare wire) to the mounting plate
unit (A) with the green ground
screw, then depending on local
code, connect it to the house
ground wire with the wire
connector (C).
Carefully put all of the wires back
into the outlet box.
4. Attach the backplate of the fixture to the mounting
plate unit (A), make sure the upper end of the mounting plate unit (A) is stuck in place, then secure the set screw (D)
from the bottom hole of the backplate to the bottom side of mounting plate unit (A).
Note: With silicone caulk compound, caulk completely around where the backplate meets with the wall
surface to prevent water from seeping into the outlet box.
5. Install the bulb (not included). See relamping label at socket area or packaging for maximum wattage allowed.
Turn on the power at fuse or circuit box.
T
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Wire Connector (C) Set Screw (D)
Photocell
Page 1 / 2
IMPORTANT:
The sensor has an excellent photocell
function to enable the light to turn on
at dusk and off at dawn automatically.
Max. 60W Vintage Bulb
(not included)
Outlet Box
House Ground Wire
Mounting Plate Unit (A)
Mounting Screw (B)
Green Ground Screw
Wire Connector (C)
Fixture Ground Wire
Fixture Wire
