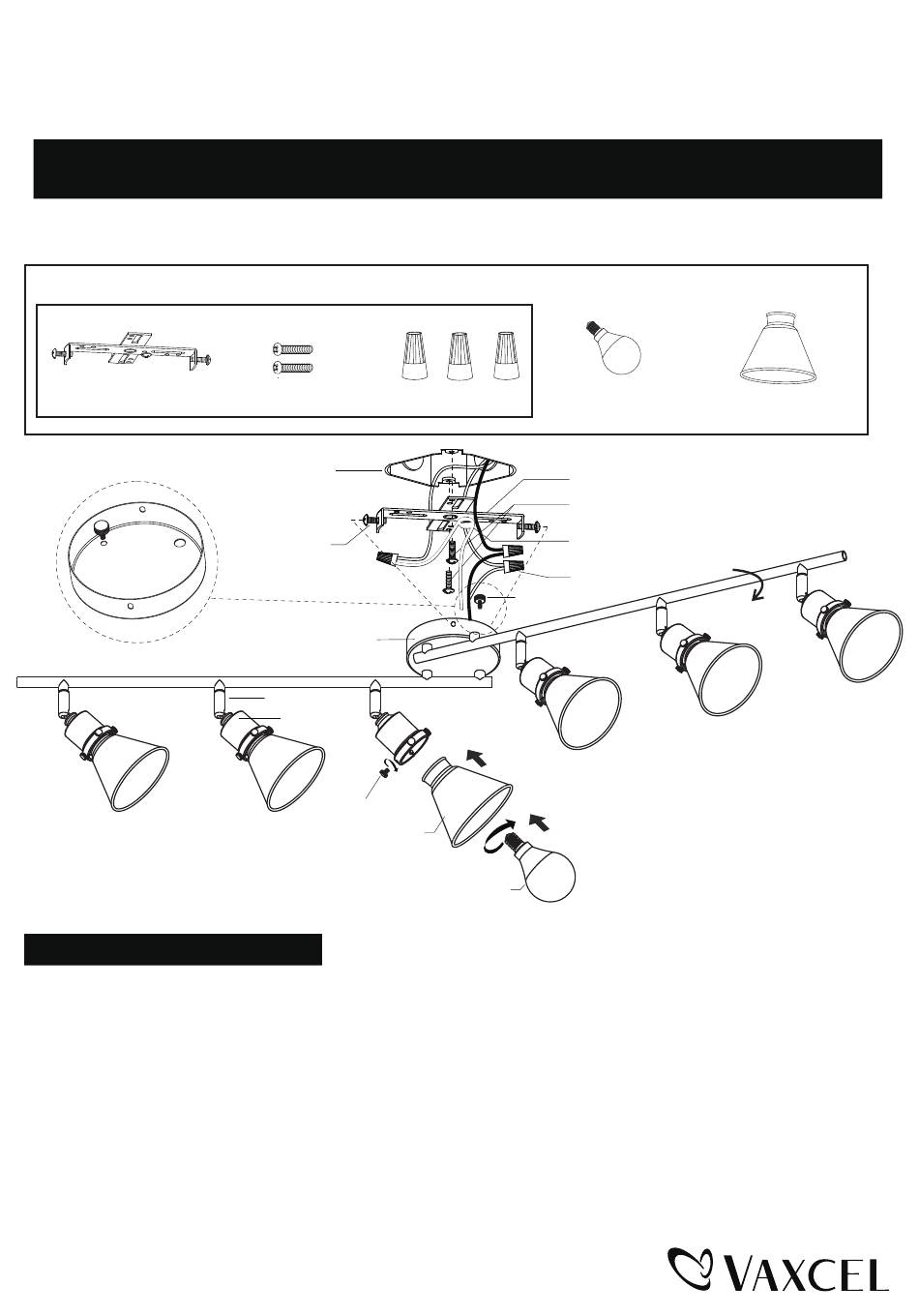

ASSEMBLY AND INSTALLATION
C0213
WARNING:
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
Hardware Package (included):
Cross Bar (A)
Installation Steps
Turn off the power at fuse or circuit box
1. Rotate the movable rod to the desired position of the canopy, then align the hand screw (G) to the desired hole and
tighten hand screw (G) .
2. Attach the cross bar (A) to the outlet box by using two mounting screws (B).
3. Pull out the outlet wires and the house grounding wire from the outlet box. Make wire connections by using the wire
connector (C) as follows.
--- Connect the black (hot) wire from the fixture to the black (hot) wire from the power source.
--- Connect the white (neutral) wire from the fixture to the white (neutral) wire from the power source.
--- Attach the fixture grounding wire to the cross bar (A) with the green grounding screw.
Then connect it to the house grounding wire with a wire connector (C).
Carefully put the wires back into the outlet box.
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Mounting Screw (B)
Wire Connector (C)
Outlet Box
Set Screw
Canopy
Swivel
Light Head
Hand Screw (F)
Glass Shade (E)
G45 LED Bulb Max.4W (D)
（included）
G45 LED Bulb Max.4W X 6 (D) Glass Shade X 6 (E)
Cross Bar (A)
Mounting Screw (B)
Green Grounding Screw
Wire Connector (C)
Hand Screw (G)
181206
Advertisement
Related Manuals for Vaxcel C0213
Summary of Contents for Vaxcel C0213
- Page 1 ASSEMBLY AND INSTALLATION INSTRUCTIONS C0213 WARNING: TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE. NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements. 2. READ AND SAVE THESE INSTRUCTIONS.
- Page 2 3. Attach the canopy to the cross bar (A) by aligning holes, secure the set screws from the side hole of the canopy into the hole in the side of the cross bar (A), then tighten the screws. 4. Attach the glass shade (E) to the light head, by secure the hand screws (F) through the holes on the light head to the glass shade (E), then tighten the screws.
