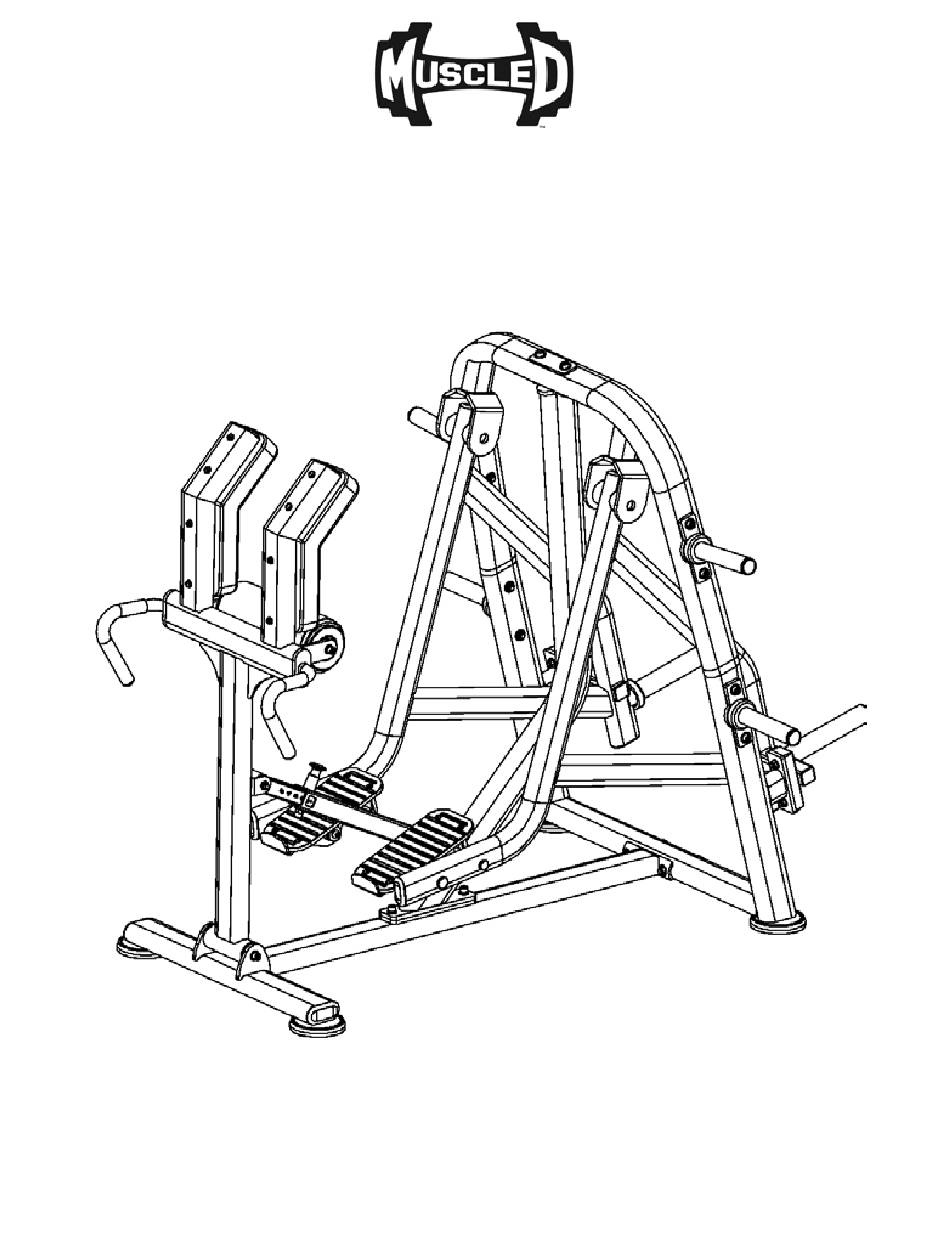

- Page 1 Pro Strength Stride Trainer PL-PS-ST Installtion Manual www.muscledfit.com...
- Page 2 Table of Contents 01/ Safety Instructions 02/ Installation Steps Diagram and Checklist 03/ Product Description 04/ Product Specifications 05/ Maintenance Guide...
- Page 3 01/ Safety Instructions: Thank you for choosing our company’s product. Correct use of the training equip- ment ensures your safety and convenience. Before using the training equipment, please carefully read the following: 1. Before using this product, carefully read all user manuals and strictly follow the instructions pro- vided in the manual.
- Page 4 02/ Installation Steps Diagram and Checklist STEP 1: Installation checklist for this step Installation completed image for reference. Support frame assembly Lower connecting brace assembly Internal hexagon cylindrical M12*120 head bolt Drum brake pad Hexagon lock nut...
- Page 5 STEP 2: Installation completed image for reference. Installation checklist for this step Drum brake pad Hexagon lock nut Internal hexagon cylindrical head bolt M12*80 Internal hexagon cylindrical head bolt M12*35 Spring washer Flat washer Limitation connection assembly M8X35...
- Page 6 STEP 3: Installation completed image for reference. Installation checklist for this step Flat washer M10X130 Socket head cap screw Ø10 Swing arm pivot Spacer tube assembly Ø12...
- Page 7 STEP 4: Installation completed image for reference. Installation checklist for this step Hexagon lock nut Shaft 17*105 External adjustment assembly...
- Page 8 STEP 5: Installation checklist for this step Drum washer Installation completed image for reference. Hexagon lock nut Socket head cap screw M12*75 Barbell assembly...
- Page 9 STEP 6: Installation checklist for this step Installation completed image for reference. Spring washer M8X30 Socket flat head cap screw End cap M12*30 Swing arm pivot 43.5*14.5 Transmission limit assembly 25*127 Transmission limit assembly...
- Page 10 STEP 7: Installation checklist for this step Installation completed image for reference. Internal hexagon socket cap screw M12*35 Spring washer Flat washer Foam 140*340 Foam fixing assembly Foam end cap 1 14*12 Foam end cap 1 14*12 Spacer Internal hexagon flat head screw M8*70...
- Page 11 Designed and manufactured to align with the body’s natural movement trajectory, our equipment ensures both safety and durability. 04/Product Specification: Name Pro Strength Stride Trainer PL-PS-ST dimensions 75” x 54” x 57” Net Weight 345 lb 05/Product Specification: 1.
