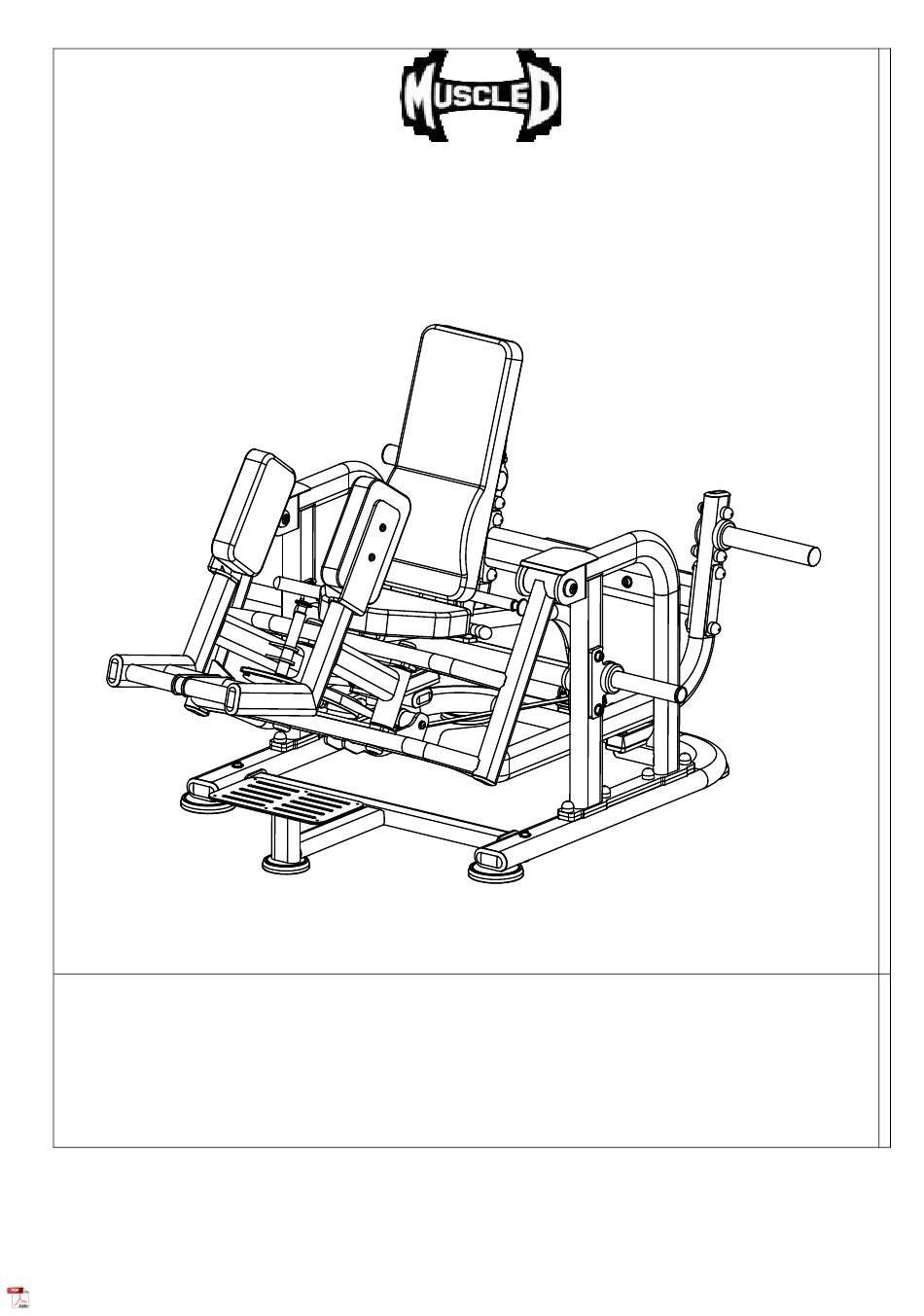

- Page 1 Pro Strength Glute/Outer Thigh (PL-PS-GOT) Installation Manual 1/12...
- Page 2 Table of Contents 01/ Safety Instructions 02/ Installation Steps Diagram and Checklist 03/ Product Description 04/ Product Specifications 05/ Maintenance Guide 2/12...
- Page 3 01/Safety Instructions: Thank you for choosing our company's product. Correct use of the trainer ensures your safety and convenience. Please carefully read the following before using the trainer: 1. Before using this product, it is essential to carefully read all user manuals and strictly adhere to the instructions provided.
- Page 4 02/Installation Steps Diagram Installation Check List 1. Installation Step 1 Name Specs. Qty. base Completed Image pedal left frame right frame inner hex cylinder iolt M10x65 Inner hex cylinder bolt M12x25 spring washer Φ12 drum washer Φ12 hexagon lock nut 4/12...
-
Page 5: Installation Step
2. Installation Step 2 Installation Check List Completed Image Name Specs. Qty. drumwasher Φ12 ell clapper hanging rod support inner hex socket head bolt M12*85 hexagon locking nut 5/12... - Page 6 3. Installation Step 3 Installation checklist Completed Image Name Specs Qty. inner hex socket head bolt M12*25 spring washer Φ12 drum pad Φ12 inner hex cap screw M12*85 connection plate 180*40*T6 seat frame 6/12...
- Page 7 4. Installation Step 4 Installation checklist Specs. Name Qty. Completed Image spring washer Φ12 support component boom pivot shaf Φ25*127 end cap Φ43.5*14.5 M12*25 inner hex socket flat head bolt 7/12...
- Page 8 Installation checklist 5. Installation Step 5 Specs Name Qty. Completed Image end cap Φ43.5*14.5 foot pedal rotating shaft Φ17*97 spring washer. Φ10 M10*25 inner socket head cap screw 8/12...
- Page 9 Installation checklist 6. Installation Step 6 Specs Name Qty. Completed Image spring washer Φ12 hex lock nut end cover Φ43.5*14.5 inner hex socket flat hard bolt M12*25 left arm component Right arm component pulley component center shaft Φ25*258 Fish-eye terminal flat belt 23*T3*1078 9/12...
- Page 10 7. Installation Step 7 Installation checklist Specs Name Qty. Completed Image brake pad Φ12 hex lock nut striker striker mounting plate 135*45*T6 external connector component connection plate. 180*40*T6 socket head cap screw M12*75 hex socket round head bolt M12*70 10/12...
- Page 11 8. Installation Step 8 Completed Image Installation checklist Specs Name Qty. seat cushion 390*280*60 back cushion 280*660 leg cushion 290*180*60 hex socket flat head bolt M8*25 flat washer Φ8 spring washer Φ8 Note: Installation completed, tighten all bolts in each part, and use screw caps for all positions where washers are used.
- Page 12 With the weight stack assembly, this machine provides weight selection options, allowing you to conveniently adjust the intensity and resistance according to your needs. ·We use large steel pipes and electrostatic spraying for safety, reliability, and durability. 04/Product Specifications Name PL-PS-GOT Pro Strength Glute/Outer Thigh Dimensions 56" x 66" x 48" Net Weight...
